Jabsco Pump model 17540-0201 Parts( Click Here for the Jabsco Pump 17540-0201 Product Page ) |
|

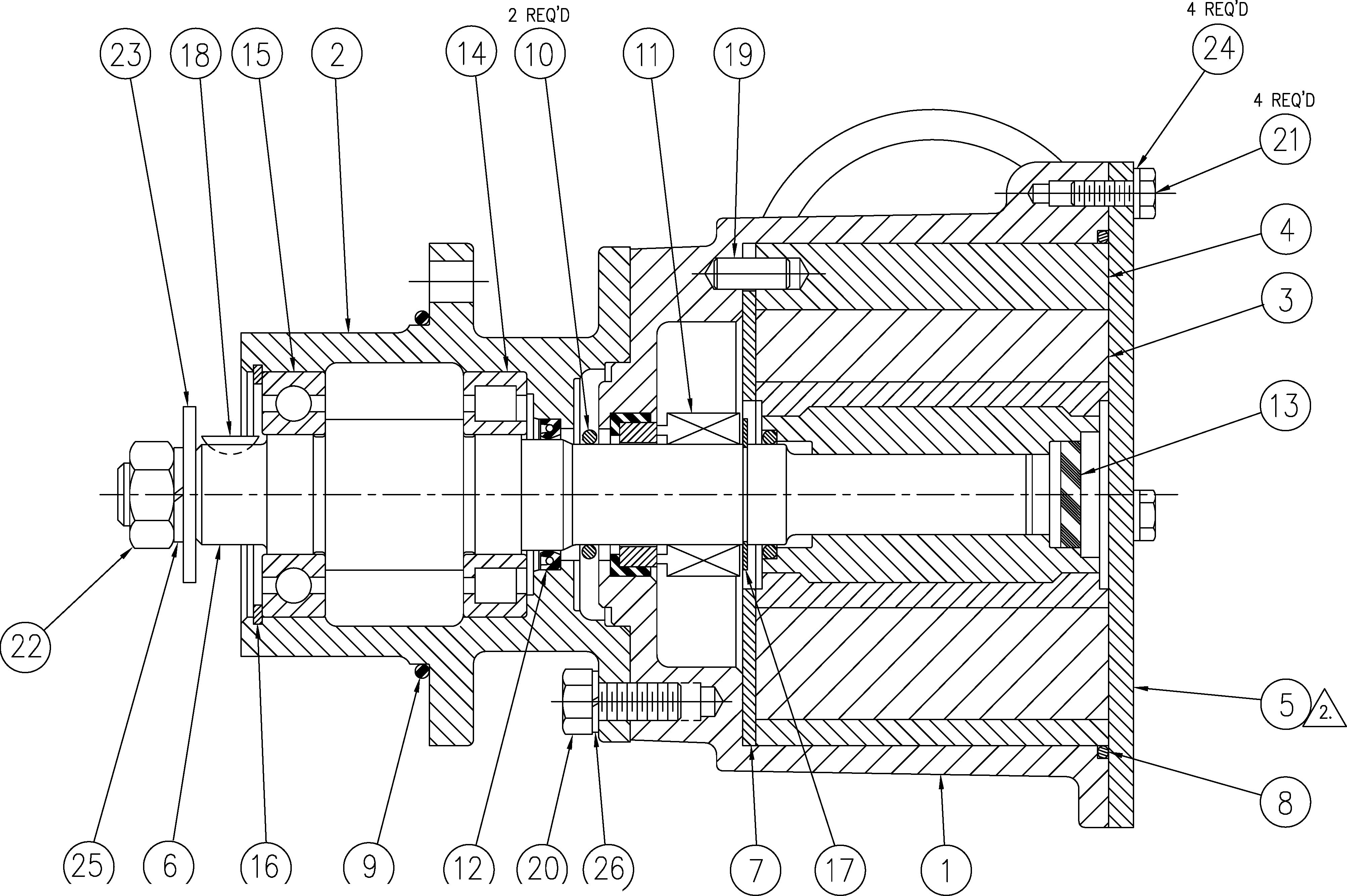

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 17540-0201 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 3 | # 18786-0001-W | Impeller, Neoprene | $181.43 | 64 in Stock | 1 | ||
| 4 | # 18785-0000 | Cam Liner | $305.75 | 24 in Stock | 1 | ||
| 5 | # 18784-1000 | End Cover | $1465.08 | 0 in Stock | 1 | ||
| 6 | # 17536-0000 | Shaft | $320.57 | 0 in Stock | 1 | ||
| 7 | # 18787-0000 | Wear Plate | $277.07 | 10 in Stock | 1 | ||
| 9 | # 92000-1372 | O-Ring | $7.44 | 4 in Stock | 1 | ||
| 11 | # 96080-0371 | Seal, Mechanical | $102.98 | 43 in Stock | 1 | ||
| 12 | # SP2701-54 | Seal, Lip | $22.85 | 0 in Stock | 1 | ||
| 19 | # SP1112-0289 | Pin, Dowel | $10.81 | 6 in Stock | 1 | ||
| 21 | # SP1106-0070 | Screw, Hex Hd 1/4-20 X 5/8 Long | $5.46 | 9 in Stock | 4 | ||
| 22 | # SP1085-10 | Nut, Hex 5/8-18 | $7.33 | 0 in Stock | 1 | ||
| 24 | # 91603-0090 | Washer, Flat 1/4 | $1.38 | 8 in Stock | 4 | ||
| MNK | # 17540-0201MNK | Minor Service Kit, for Jabsco 17540-0201, with Impeller, Seal and Gasket | $298.62 | 2 in Stock | 1 | ||
| MJK | # 17540-0201MJK | Major Service Kit, for Jabsco 17540-0201, with All Internal Parts Except the Shaft. | $1842.63 | 2 in Stock | 1 | ||
