Jabsco Pump model 18330-0000 Parts

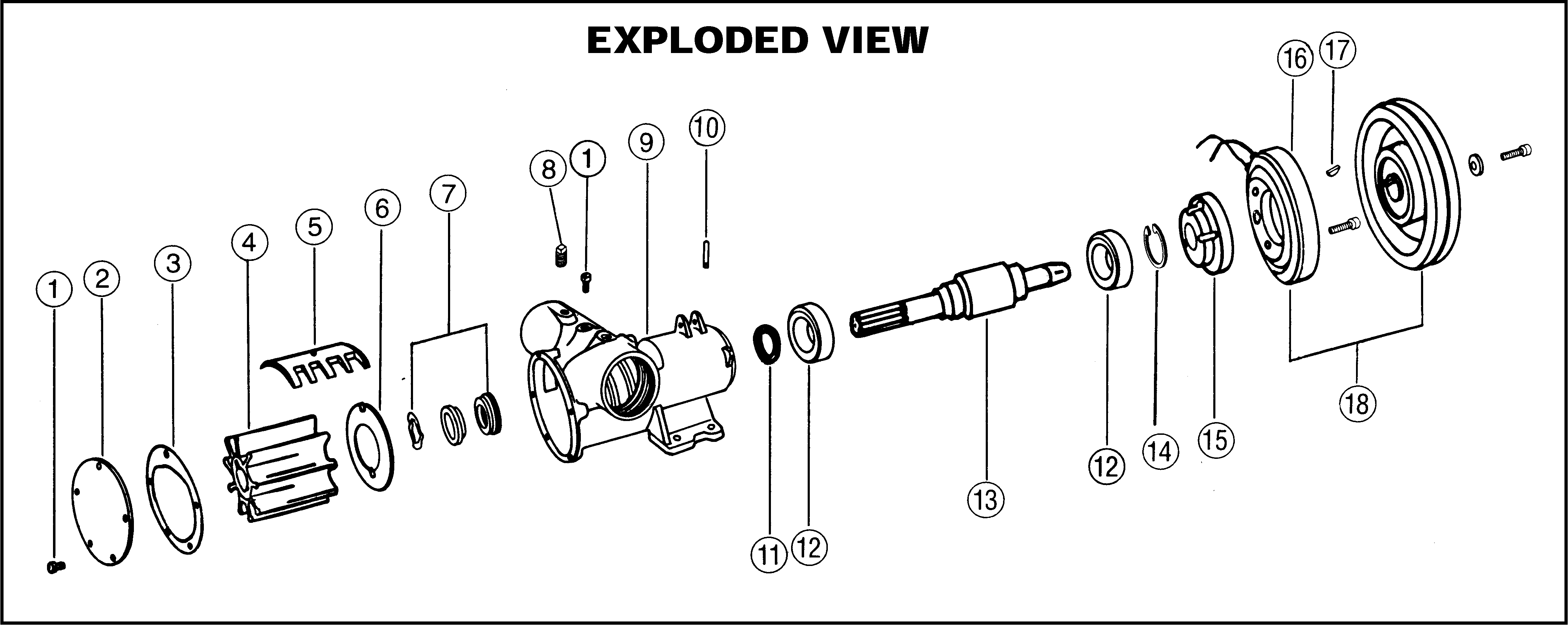

PARTS LIST for Jabsco Pump model # 18330-0000 Pump:
( Click Here for the Jabsco Pump 18330-0000 Product Page )
Item 1
(on image above)
Screw (For End Cover and Cam)
$ 8.64 / each
Item 2
(on image above)
End Cover
$ 97.14 / each
Item 3
(on image above)
Gasket
$ 9.72 / each
Item 4
(on image above)
Impeller, Nitrile
$ 226.68 / each
Item 4
(on image above)
Impeller, Neoprene
$ 113.82 / each
Item 5
(on image above)
Cam
$ 66.91 / each
Item 6
(on image above)
Wearplate
$ 28.07 / each
Item 7
(on image above)
Seal
Seal Assembly (For Shaft)
$ 77.72 / each
Item 8
(on image above)
Pipe Plug
$ 7.32 / each
Item 9
(on image above)
Body
Contact Us for Pricing
Item 10
(on image above)
Roll Pin
$ 12.95 / each
Item 11
(on image above)
Bearing Seal
$ 17.27 / each
Item 12
(on image above)
Ball Bearing
$ 76.64 / each
Item 13
(on image above)
Shaft
$ 352.97 / each
Item 14
(on image above)
Retaining Ring
$ 9.72 / each
Item 15
(on image above)
Clutch Adaptor
$ 174.86 / each
Item 16
(on image above)
Field Coil, 12 Volt Dc
$ 208.33 / each
Item 17
(on image above)
Drive Key
$ 20.50 / each
Item 18
(on image above)
Clutch Assembly, 12 Volt Dc, 2-A Grooves
$ 410.17 / each
Item SK
(on image above)
Service Kit, Neoprene, with Neoprene Impeller, Gasket and Seal
$ 119.79 / each
Item SK
(on image above)
Major Overhaul Kit
Service Kit, Nitrile, with Nitrile Impeller, Gasket and Seal
Contact Us for Pricing
Item SW
(on image above)
Vacuum Switch
$ 168.40 / each
