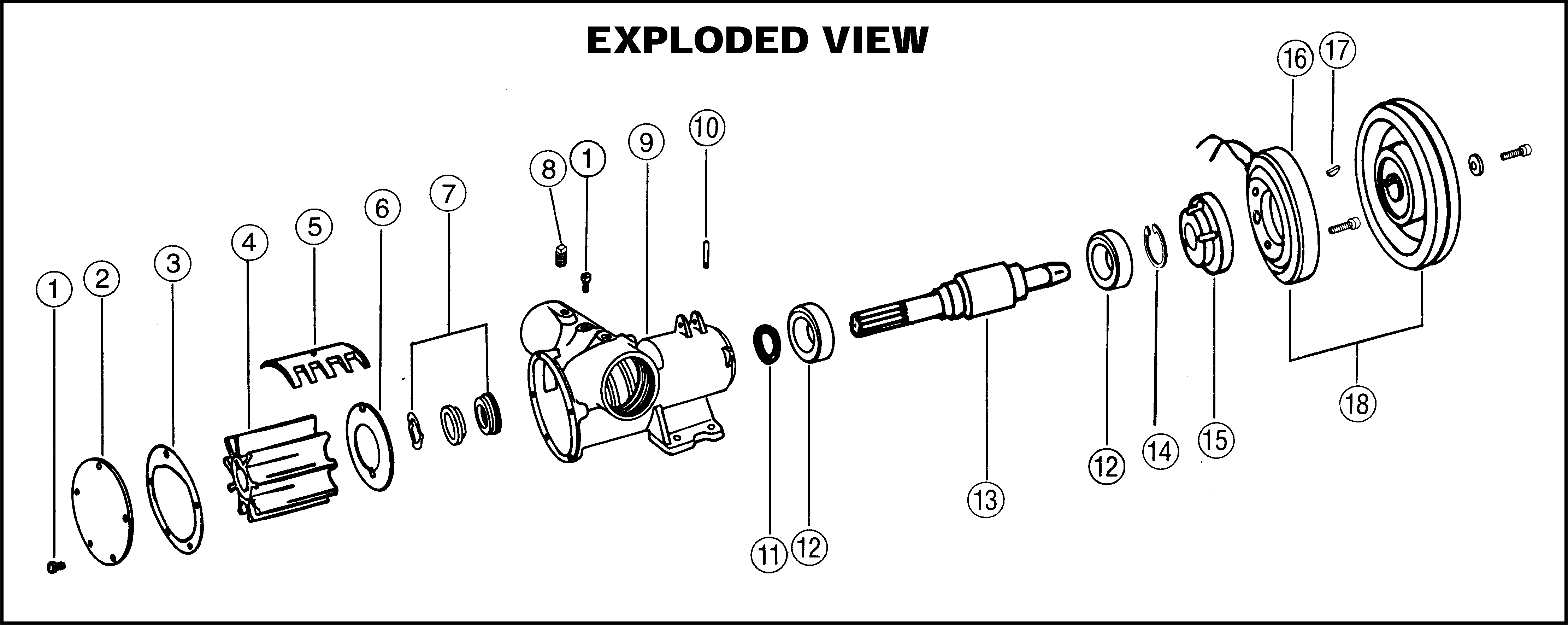

PARTS LIST for Jabsco Pump model # 18330-0041 Pump:
( Click Here for the Jabsco Pump 18330-0041 Product Page )
Item 1
(on image above)
Screw (For End Cover and Cam)
$ 2.61 / each
Item 2
(on image above)
End Cover
$ 88.31 / each
Item 3
(on image above)
Gasket
$ 8.83 / each
Item 4
(on image above)
Impeller, Nitrile
$ 206.06 / each
Item 4
(on image above)
Impeller, Neoprene
$ 113.82 / each
Item 5
(on image above)
Cam
$ 60.84 / each
Item 6
(on image above)
Wearplate
$ 25.52 / each
Item 7
(on image above)
Seal
Seal Assembly (For Shaft)
$ 70.65 / each
Item 8
(on image above)
Pipe Plug
$ 7.32 / each
Item 9
(on image above)
Body
Contact Us for Pricing
Item 10
(on image above)
Roll Pin
$ 11.77 / each
Item 11
(on image above)
Bearing Seal
$ 15.71 / each
Item 12
(on image above)
Ball Bearing
$ 69.67 / each
Item 13
(on image above)
Shaft
$ 320.88 / each
Item 14
(on image above)
Retaining Ring
$ 8.83 / each
Item 15
(on image above)
Clutch Adaptor
$ 158.97 / each
Item 16
(on image above)
Field Coil, 24 Volt Dc
$ 240.02 / each
Item 17
(on image above)
Drive Key
$ 18.65 / each
Item 18
(on image above)
Clutch Assembly, 24 Volt Dc, 1-B Groove
$ 384.66 / each
Item SK
(on image above)
Service Kit, Neoprene, with Neoprene Impeller, Gasket and Seal
$ 107.23 / each
Item SK
(on image above)
Major Overhaul Kit
Service Kit, Nitrile, with Nitrile Impeller, Gasket and Seal
Contact Us for Pricing
Item SW
(on image above)
Vacuum Switch
$ 153.08 / each
