Jabsco Pump model 18830-1020 Parts
PARTS LIST for Jabsco Pump model # 18830-1020 Pump:

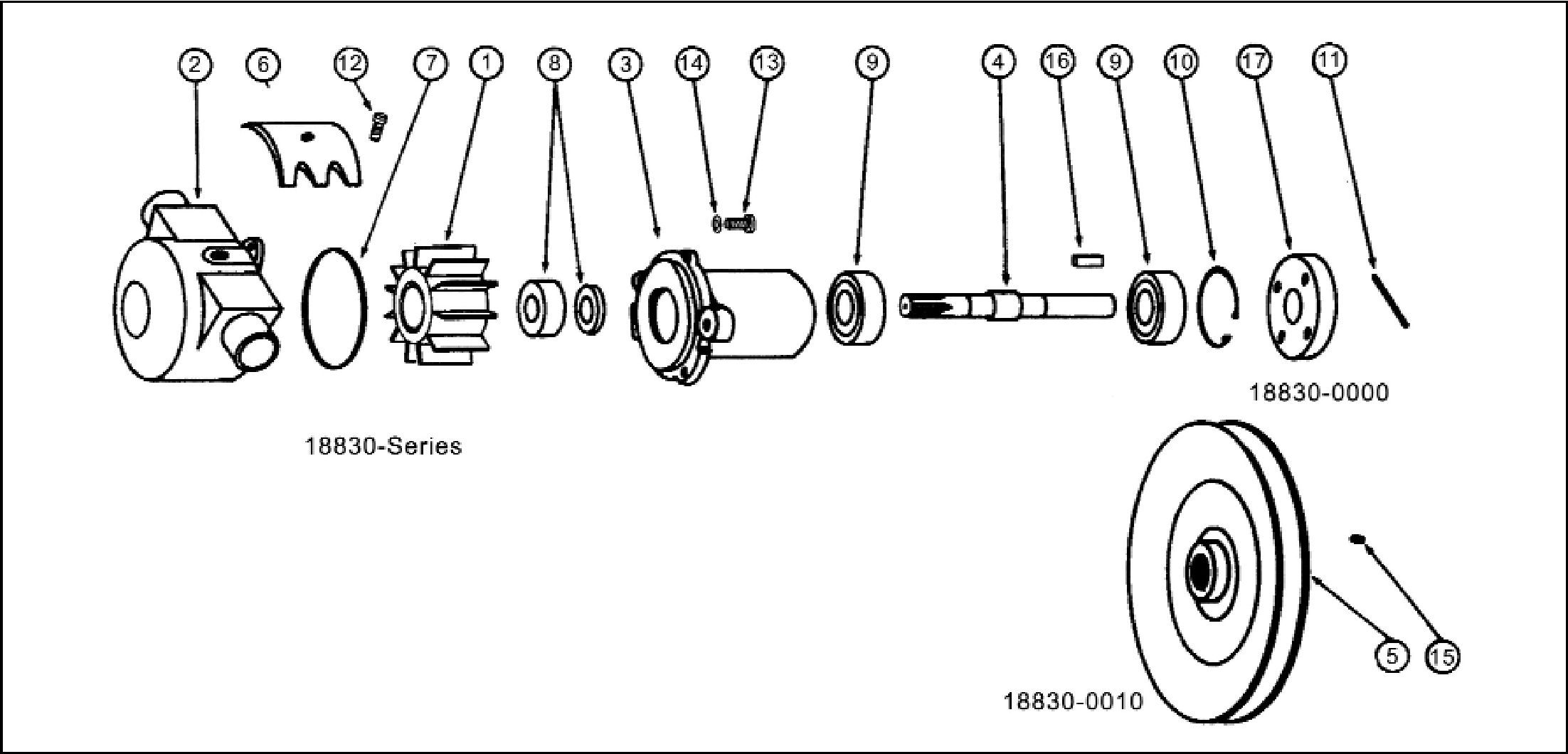

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
( Click Here for the Jabsco Pump 18830-1020 Product Page )
Item 1
(on image above)
Impeller, High Pressure, Neoprene
$ 68.07 / each
Item 2
(on image above)
Impeller Housing
$ 119.27 / each
Item 3
(on image above)
Bearing Housing
Contact Us for Pricing
Item 4
(on image above)
Shaft
$ 172.99 / each
Item 6
(on image above)
Cam
$ 40.23 / each
Item 7
(on image above)
O-Ring
$ 17.67 / each
Item 8
(on image above)
Seal
Mechanical Seal
$ 60.84 / each
Item 9
(on image above)
Ball Bearing
$ 37.29 / each
Item 12
(on image above)
Cam Screw
$ 15.71 / each
Item 17
(on image above)
Pulley Adaptor
$ 112.65 / each
Item HK
(on image above)
Hardware Kit
$ 22.07 / each
Item SC
(on image above)
Screw Kit
$ 14.36 / each
