Jabsco Pump model 23920-9503 Parts( Click Here for the Jabsco Pump 23920-9503 Product Page ) |
|

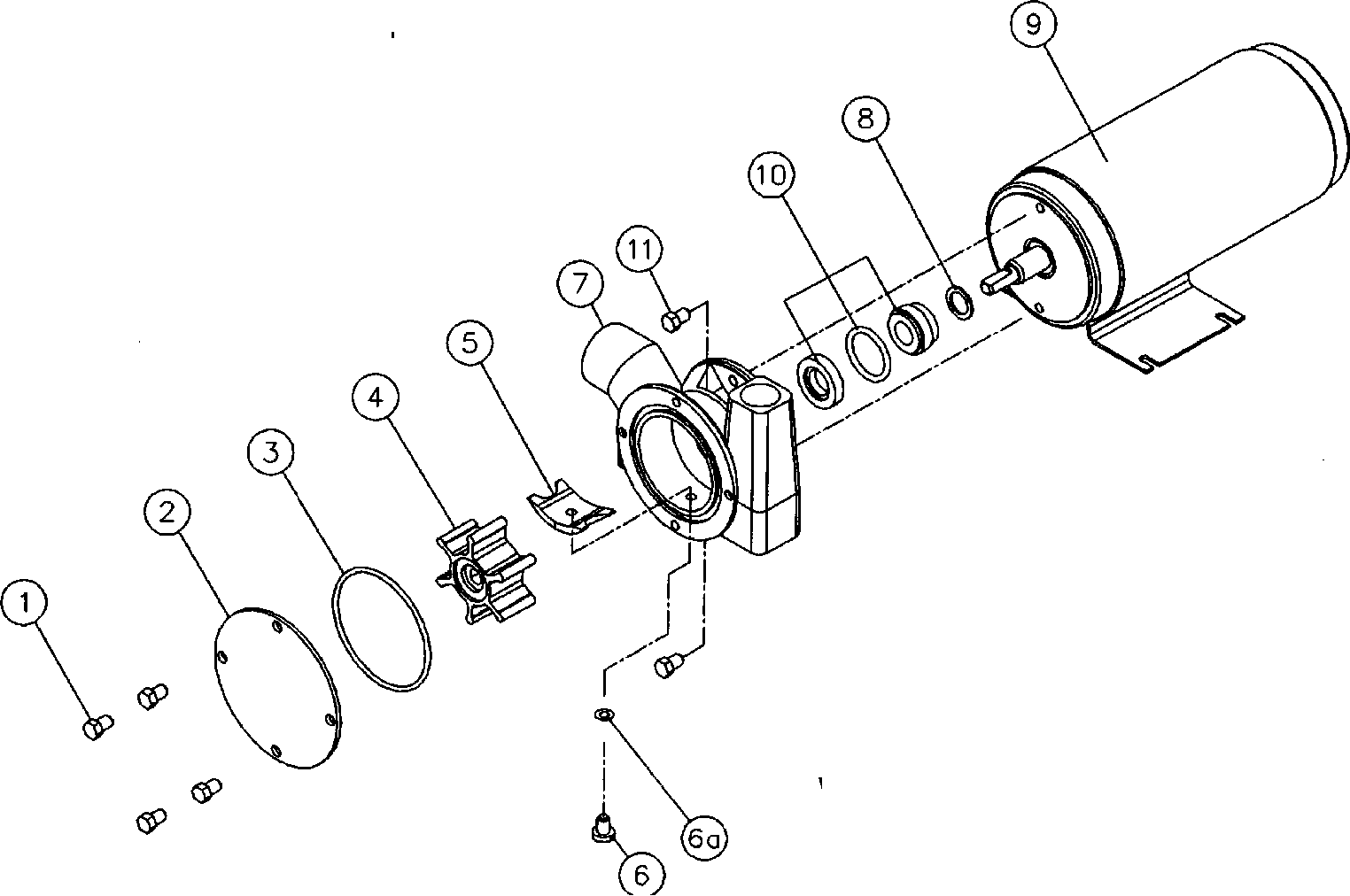

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 23920-9503 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # X3001-147F | End Cover Screw | $5.95 | 53 in Stock | 4 | ||
| 2 | # 23825-0000 | End Cover | $41.35 | 4 in Stock | 1 | ||
| 3 | # X4020-257A | End Cover Seal | $5.93 | 3 in Stock | 1 | ||
| 4 | # 6303-0003-P | Impeller, Nitrile | $27.99 | 29 in Stock | 1 | ||
| 6a | # X4020-105A | Cam Screw Seal | $0.94 | 0 in Stock | 1 | ||
| 10 | # SP2701-52B | Lip Type Shaft Seal | $10.52 | 2 in Stock | 1 | ||
| 11 | # X3001-147F | Pump Motor Screw | $5.95 | 53 in Stock | 2 | ||
