Jabsco Pump model 2620 Parts

PARTS LIST for Jabsco Pump model # 2620 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 2620-1003 Product Page )

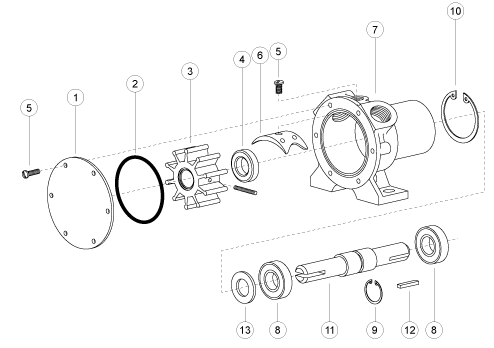

Blowup of 2620-1003

Item 1
(on image above)

Part # 11830-0000

End Cover

$ 19.43 / each

Item 2
(on image above)

Part # 18753-0125

*O-Ring

$ 10.79 / each

Item 3
(on image above)

Part # 18673-0003-P

*Impeller (with drive screw) Nitrile

$ 51.81 / each

Item 4
(on image above)

Part # 92700-0050

*Seal (Shaft)

$ 19.43 / each

Item 5
(on image above)

Part # 18753-0121

Screw Kit (7 each) for Cam and End Cover

$ 16.19 / each

Item 6
(on image above)

Part # 2907-0001

Cam

$ 46.56 / each

Item 8
(on image above)

Part # 92600-0130

Ball Bearing

$ 58.30 / each

Item 9
(on image above)

Part # 18715-0000

Retaining Ring (Bearing Positioner)

$ 4.21 / each

Item 10
(on image above)

Part # 18753-0123

Retaining Ring (Bearing to Body)

$ 14.41 / each

Item 11
(on image above)

Part # 18753-0124

Shaft

$ 160.52 / each

Item 12
(on image above)

Part # 11847-0000

Key (Shaft Drive)

$ 15.11 / each

Item 13
(on image above)

Part # 879-0000

Slinger

$ 58.30 / each

Item SK
(on image above)

Part # 90020-0003

Service Kit, c/w Nitrile Impeller, Seal, O-Ring

$ 74.49 / each
