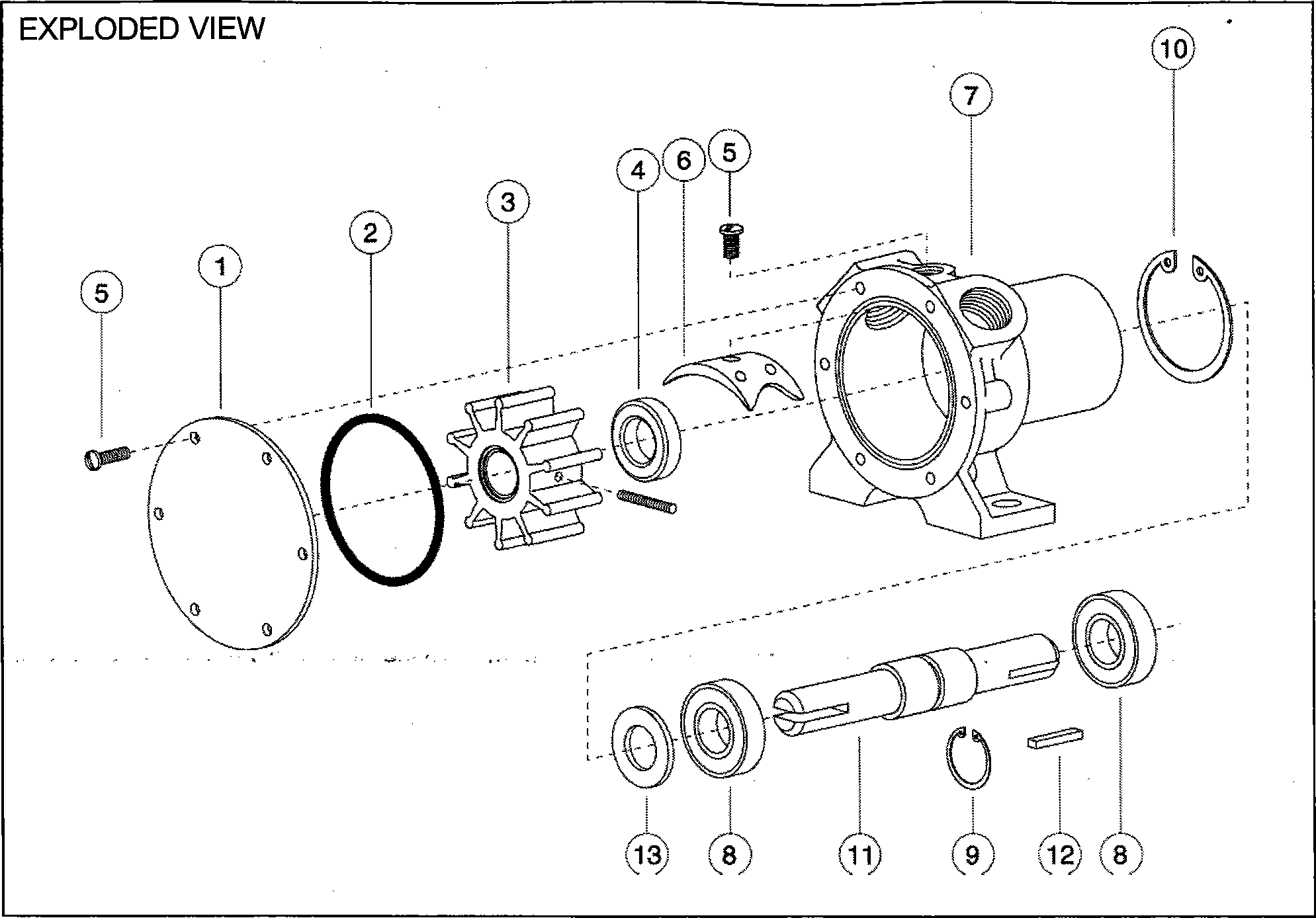

Jabsco Pump model 2620-1101 Parts( Click Here for the Jabsco Pump 2620-1101 Product Page ) |
|
Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 2620-1101 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 11830-0000 | End Cover | $19.11 | 35 in Stock | 1 is Req'd | ||
| 2 | # 18753-0125 | O-Ring | $10.61 | 14 in Stock | 1 is Req'd | ||
| 3 | # 18673-0001-P | Impeller, Neoprene (With Drive Screw) | $50.96 | 22 in Stock | 1 is Req'd | ||
| 4 | # 92700-0050 | Shaft Seal | $19.11 | 35 in Stock | 1 is Req'd | ||
| 5 | # 18753-0121 | Screw Kit (7 Each) For Cam And End Cover | $15.92 | 2 in Stock | 1 is Req'd | ||
| 6 | # 2907-0001 | Cam | $45.79 | 2 in Stock | 1 is Req'd | ||
| 8 | # 92600-0130 | Ball Bearing | $57.33 | 10 in Stock | 2 are Req'd | ||
| 9 | # 18715-0000 | Retaining Ring (Bearing Positioner) | $4.14 | 2 in Stock | 1 is Req'd | ||
| 10 | # 18753-0123 | Retaining Ring (Bearing To Body) | $14.17 | 2 in Stock | 1 is Req'd | ||
| 11 | # 18753-0124 | Shaft | $157.87 | 1 in Stock | 1 is Req'd | ||
| 12 | # 11847-0000 | Key (Shaft Drive) | $14.86 | 3 in Stock | 1 is Req'd | ||
| 13 | # 879-0000 | Slinger | $57.33 | 10 in Stock | 1 is Req'd | ||
| SK | # 90020-0001 | Service Kit, Neoprene | $73.26 | 2 in Stock | 1 is Req'd | ||
