Jabsco Pump model 2760-0003 Parts

PARTS LIST for Jabsco Pump model # 2760-0003 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 2760-0003 Product Page )

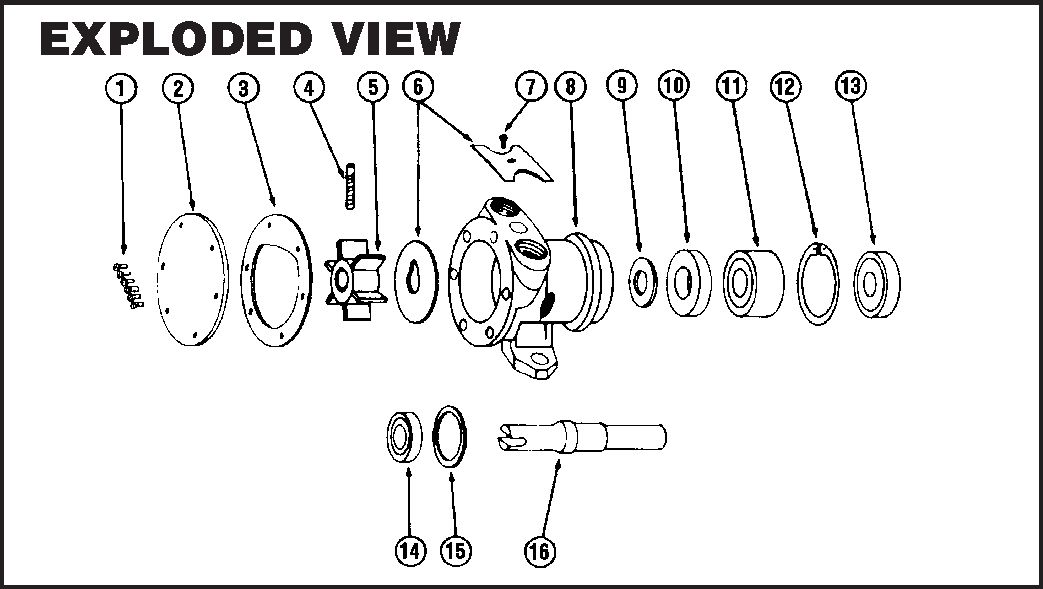

Blowup of 2760-0003

Item 1
(on image above)

Part # 91002-0010

Screw End Cover

$ 14.73 / each

Item 2
(on image above)

Part # 12066-0000

End Cover

$ 48.09 / each

Item 3
(on image above)

Part # 1189-0000

Gasket

$ 10.78 / each

Item 4
(on image above)

Part # 91009-0050

Impeller Screw

$ 4.21 / each

Item 5
(on image above)

Part # 4528-0003-P

Impeller - Nitrile

$ 43.17 / each

Item 6
(on image above)

Part # 4271-0000

Wearplate and Cam Assembly

$ 93.23 / each

Item 7
(on image above)

Part # 91002-0030

Cam Screw

$ 5.13 / each

Item 8
(on image above)

Part # 2767-0000

Body

Contact Us for Pricing

Item 9
(on image above)

Part # 6342-0000

Slinger

$ 1.63 / each

Item 10
(on image above)

Part # 1041-0000

Inner Bearing Seal

$ 68.69 / each

Item 11
(on image above)

Part # 92600-0080

Ball Bearing

$ 95.37 / each

Item 12
(on image above)

Part # 18717-0000

Retaining Ring (Brg. to Body)

$ 7.04 / each

Item 13
(on image above)

Part # 1039-0000

Outer Bearing Seal

$ 47.11 / each

Item 14
(on image above)

Part # 92700-0110

Seal

Seal

$ 19.63 / each

Item 15
(on image above)

Part # 92000-0560

O-Ring

$ 4.30 / each

Item 16
(on image above)

Part # 1053-0000

Shaft

$ 125.04 / each

Item SK
(on image above)

Part # 90023-0001

Service Kit - Neoprene

$ 61.83 / each

Item SK
(on image above)

Part # 90023-0003

Service Kit -Nitrile

$ 61.83 / each
