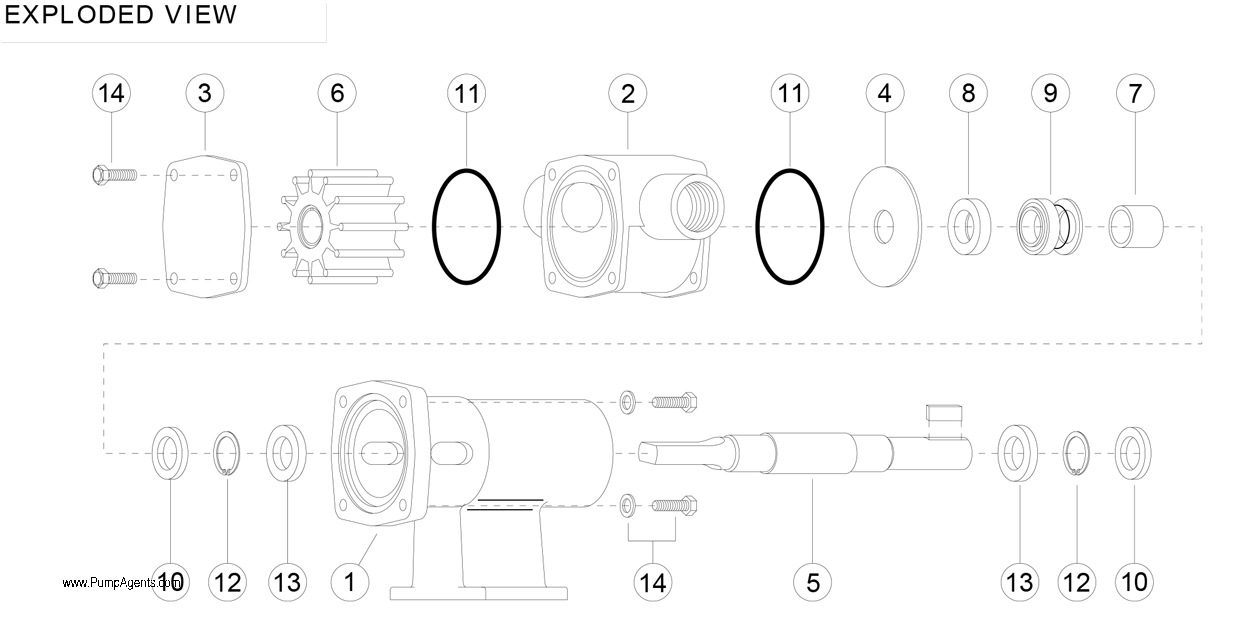

Jabsco Pump model 30510-0011 Parts( Click Here for the Jabsco Pump 30510-0011 Product Page ) |
|
Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30510-0011 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0183 | Bearing Housing | $421.11 | 2 in Stock | 1 is Req'd | ||
| 2 | # 18753-0187 | Body | $765.28 | 9 in Stock | 1 is Req'd | ||
| 3 | # 18753-0193 | End Cover | $113.97 | 4 in Stock | 1 is Req'd | ||
| 4 | # 18753-0199 | Wearplate | $247.02 | 10 in Stock | 1 is Req'd | ||
| 5 | # 18753-0203 | Shaft | $420.78 | 0 in Stock | 1 is Req'd | ||
| 6 | # 8980-0005B | Impeller, High Pressure - Neoprene | $119.12 | 34 in Stock | 1 is Req'd | ||
| 7 | # 18753-0221 | Spacer, | $222.48 | 5 in Stock | 1 is Req'd | ||
| 8 | # 18753-0233 | Seal Seat, Nitrile | $46.48 | 33 in Stock | 1 is Req'd | ||
| 9 | # 18753-0241 | Mechanical Seal, Carbon - Nitrile | $95.88 | 42 in Stock | 1 is Req'd | ||
| 10 | # 18753-0257 | Bearing Seal | $27.58 | 32 in Stock | 2 are Req'd | ||
| 11 | # 18753-0261 | O-Ring, Nitrile | $10.17 | 2493 in Stock | 2 are Req'd | ||
| 12 | # 18753-0269 | Retaining Ring | $11.89 | 6 in Stock | 2 are Req'd | ||
| 13 | # 18753-0273 | Bearing | $43.59 | 7 in Stock | 2 are Req'd | ||
| 14 | # 18753-0277 | Screw Kit, consists of Screws, Hex Hd. M5 x 16mm (4) Screws, Pan Hd. M5 x 16mm (4) Washers, Flat M5 (4) | $24.70 | 4 in Stock | 1 is Req'd | ||
