Jabsco Pump model 30510-0102 Parts

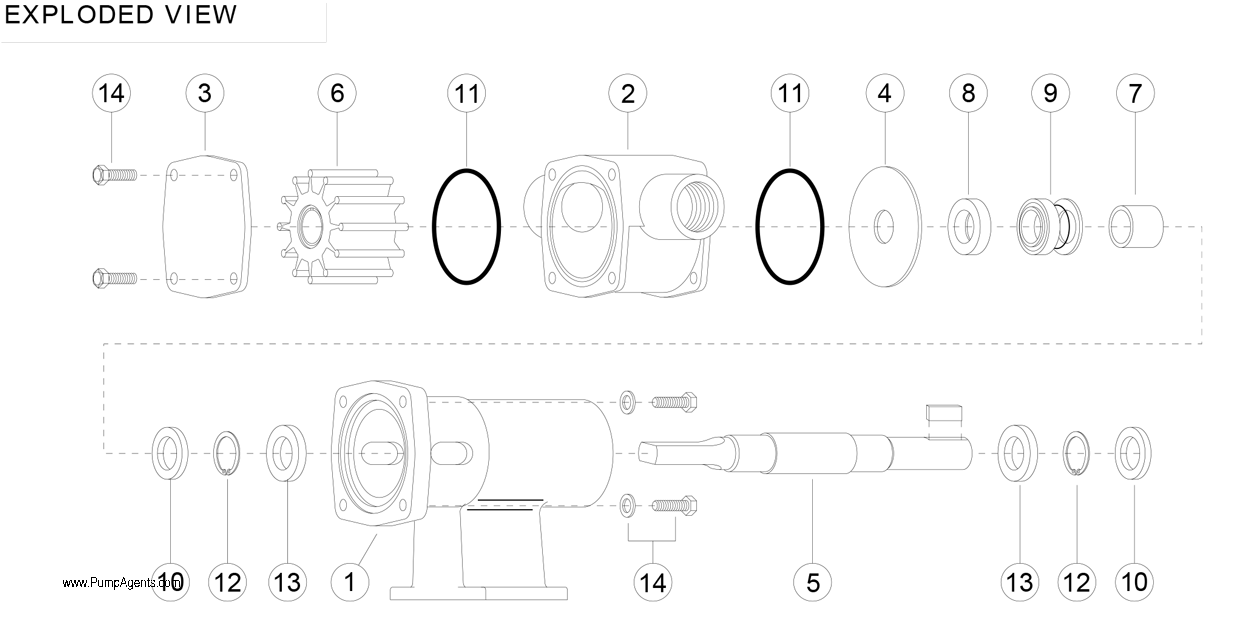

PARTS LIST for Jabsco Pump model # 30510-0102 Pump:
( Click Here for the Jabsco Pump 30510-0102 Product Page )
Item 1
(on image above)
Bearing Housing
$ 421.11 / each
Item 2
(on image above)
Body
$ 765.28 / each
Item 3
(on image above)
End Cover
$ 113.97 / each
Item 4
(on image above)
Wearplate
$ 247.02 / each
Item 5
(on image above)
Shaft
$ 420.78 / each
Item 6
(on image above)
Impeller, Standard Pressure - Neoprene
$ 98.78 / each
Item 6
(on image above)
Impeller, Standard Pressure - Nitrile
$ 98.78 / each
Item 6
(on image above)
Impeller, Standard Pressure - Viton
$ 133.64 / each
Item 6
(on image above)
Impeller, Standard Pressure - EPDM
$ 132.20 / each
Item 6
(on image above)
Impeller, High Pressure - Neoprene
$ 119.12 / each
Item 6
(on image above)
Impeller, High Pressure - Viton
$ 217.90 / each
Item 6
(on image above)
Impeller, High Pressure - EPDM
$ 222.26 / each
Item 7
(on image above)
Spacer,
$ 222.48 / each
Item 8
(on image above)
Seal Seat, Ceramic Viton
$ 110.40 / each
Item 9
(on image above)
Seal
Mechanical Seal, Tungsten Carbide - Viton
$ 458.79 / each
Item 10
(on image above)
Bearing Seal
$ 27.58 / each
Item 11
(on image above)
O-Ring, Viton
$ 21.79 / each
Item 12
(on image above)
Retaining Ring
$ 11.89 / each
Item 13
(on image above)
Bearing
$ 43.59 / each
Item 14
(on image above)
Screw Kit, consists of Screws, Hex Hd. M5 x 16mm (4) Screws, Pan Hd. M5 x 16mm (4) Washers, Flat M5 (4)
$ 24.70 / each
