Jabsco Pump model 30510-0112 Parts

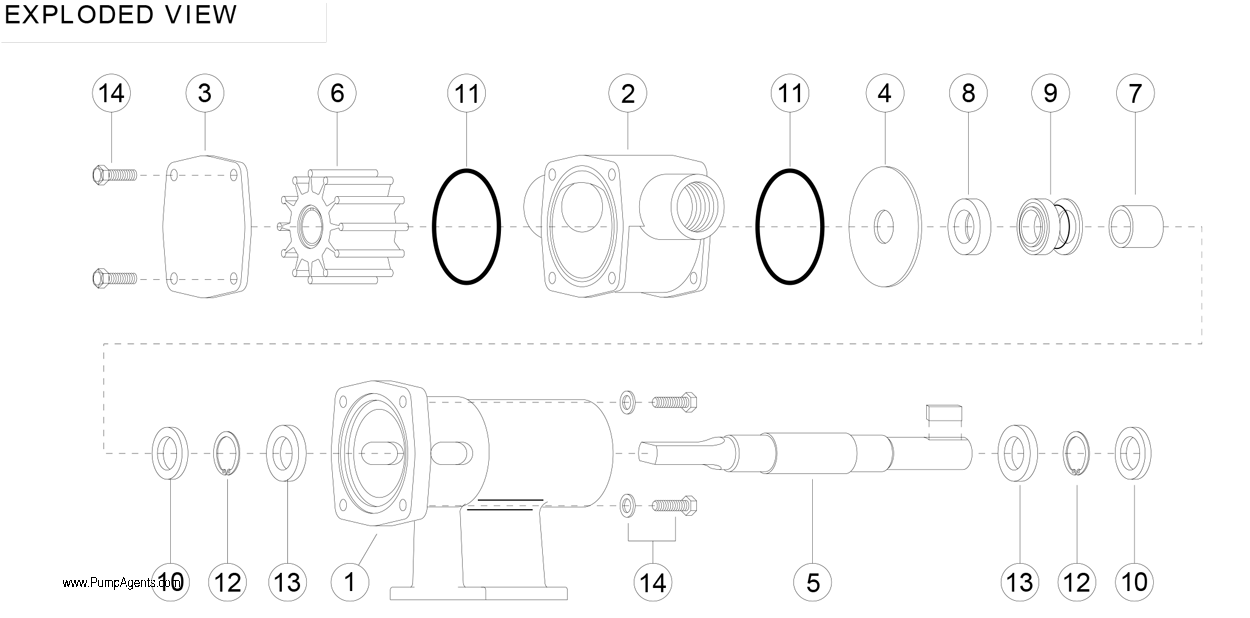

PARTS LIST for Jabsco Pump model # 30510-0112 Pump:
( Click Here for the Jabsco Pump 30510-0112 Product Page )
Item 1
(on image above)
Bearing Housing
$ 428.18 / each
Item 2
(on image above)
Body
$ 778.14 / each
Item 3
(on image above)
End Cover
$ 115.88 / each
Item 4
(on image above)
Wearplate
$ 251.17 / each
Item 5
(on image above)
Shaft
$ 427.86 / each
Item 6
(on image above)
Impeller, Standard Pressure - Neoprene
$ 100.44 / each
Item 6
(on image above)
Impeller, Standard Pressure - Nitrile
$ 100.44 / each
Item 6
(on image above)
Impeller, Standard Pressure - Viton
$ 135.88 / each
Item 6
(on image above)
Impeller, Standard Pressure - EPDM
$ 134.42 / each
Item 6
(on image above)
Impeller, High Pressure - Neoprene
$ 121.12 / each
Item 6
(on image above)
Impeller, High Pressure - Viton
$ 221.56 / each
Item 6
(on image above)
Impeller, High Pressure - EPDM
$ 225.99 / each
Item 7
(on image above)
Spacer,
$ 226.22 / each
Item 8
(on image above)
Seal Seat, Ceramic Viton
$ 112.25 / each
Item 9
(on image above)
Seal
Mechanical Seal, Tungsten Carbide - Viton
$ 466.50 / each
Item 10
(on image above)
Bearing Seal
$ 28.05 / each
Item 11
(on image above)
O-Ring, Viton
$ 22.16 / each
Item 12
(on image above)
Retaining Ring
$ 12.09 / each
Item 13
(on image above)
Bearing
$ 44.32 / each
Item 14
(on image above)
Screw Kit, consists of Screws, Hex Hd. M5 x 16mm (4) Screws, Pan Hd. M5 x 16mm (4) Washers, Flat M5 (4)
$ 25.12 / each
