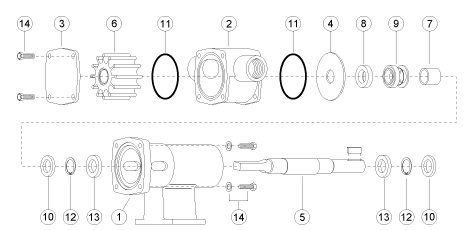

PARTS LIST for Jabsco Pump model # 30510-0XXX Pump:
Item 1
(on image above)
Bearing Housing
$ 456.04 / each
Item 2
(on image above)
Body
$ 707.39 / each
Item 3
(on image above)
End Cover
$ 105.34 / each
Item 4
(on image above)
Wearplate
$ 228.34 / each
Item 5
(on image above)
Shaft
$ 388.95 / each
Item 6
(on image above)
Impeller - Standard Pressure Neoprene
$ 91.31 / each
Not Shown
(Not Shown on image above)
Impeller - Standard Pressure Nitrile
$ 91.31 / each
Not Shown
(Not Shown on image above)
Impeller - Standard Pressure Viton
$ 123.53 / each
Not Shown
(Not Shown on image above)
Impeller - Standard Pressure EPDM
$ 122.19 / each
Not Shown
(Not Shown on image above)
Impeller - High Pressure Neoprene
$ 110.11 / each
Not Shown
(Not Shown on image above)
Impeller - High Pressure Viton
$ 201.43 / each
Not Shown
(Not Shown on image above)
Impeller - High Pressure EPDM
$ 205.43 / each
Item 7
(on image above)
Spacer:
$ 205.66 / each
Item 8
(on image above)
Seal Seat - Nitrile
$ 42.97 / each
Seal Kit
(Not Shown on image above)
Seal Seat - Ceramic Viton
$ 102.05 / each
Item 9
(on image above)
Mechanical Seal, Carbon - Nitrile
$ 88.62 / each
Seal Kit
(Not Shown on image above)
Mechanical Seal, Carbon - Viton
$ 296.75 / each
Seal Kit
(Not Shown on image above)
Mechanical Seal, Nitrile/Tungsten Carbide
$ 464.62 / each
Seal Kit
(Not Shown on image above)
Mechanical Seal, Tungsten Carbide - Viton
$ 466.50 / each
Item 10
(on image above)
Bearing Seal
$ 25.51 / each
Item 11
(on image above)
O-Ring: Nitrile
$ 9.41 / each
Not Shown
(Not Shown on image above)
O-Ring: Viton
$ 20.15 / each
Item 12
(on image above)
Retaining Ring
$ 12.09 / each
Item 13
(on image above)
Bearing
$ 40.29 / each
Item 14
(on image above)
Screw Kit:consists ofScrews, Hex Hd. M5 x 16mm (4)Screws, Pan Hd. M5 x 16mm (4)Washers, Flat M5 (4)
$ 22.83 / each
