Jabsco Pump model 30510-1014 Parts

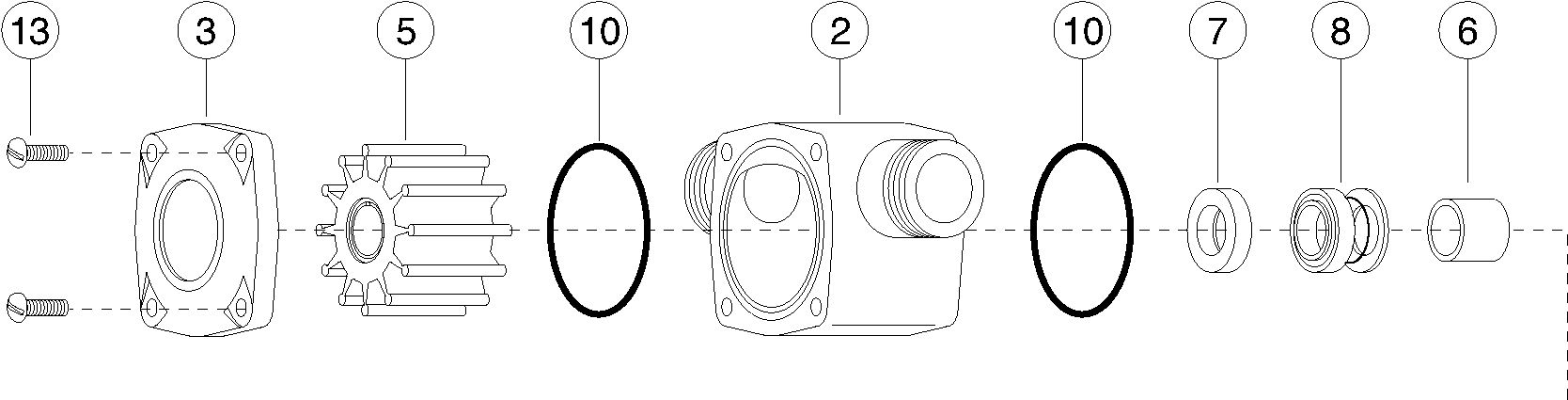

PARTS LIST for Jabsco Pump model # 30510-1014 Pump:
( Click Here for the Jabsco Pump 30510-1014 Product Page )
Item 1
(on image above)
Bearing Housing
$ 456.04 / each
Item 2
(on image above)
Body
$ 374.83 / each
Item 3
(on image above)
End Cover
$ 155.21 / each
Item 4
(on image above)
Shaft
$ 721.08 / each
Item 5
(on image above)
Impeller, High Pressure - Viton
$ 201.43 / each
Item 6
(on image above)
Spacer,
$ 205.66 / each
Item 7
(on image above)
Seal Seat, Ceramic Viton
$ 102.05 / each
Item 8
(on image above)
Seal
Mechanical Seal, Carbon - Viton
$ 296.75 / each
Item 9
(on image above)
Bearing Seal
$ 25.51 / each
Item 10
(on image above)
O-Ring, Viton
$ 20.15 / each
Item 11
(on image above)
Retaining Ring
$ 12.09 / each
Item 12
(on image above)
Bearing
$ 40.29 / each
Item 13
(on image above)
Screw Kit, consists of Screws, Hex Hd. M5 x 16mm (4) Screws, Pan Hd. M5 x 16mm (4) Washers, Flat M5 (4)
$ 102.04 / each
