Jabsco Pump model 30510-2001 Parts |
|

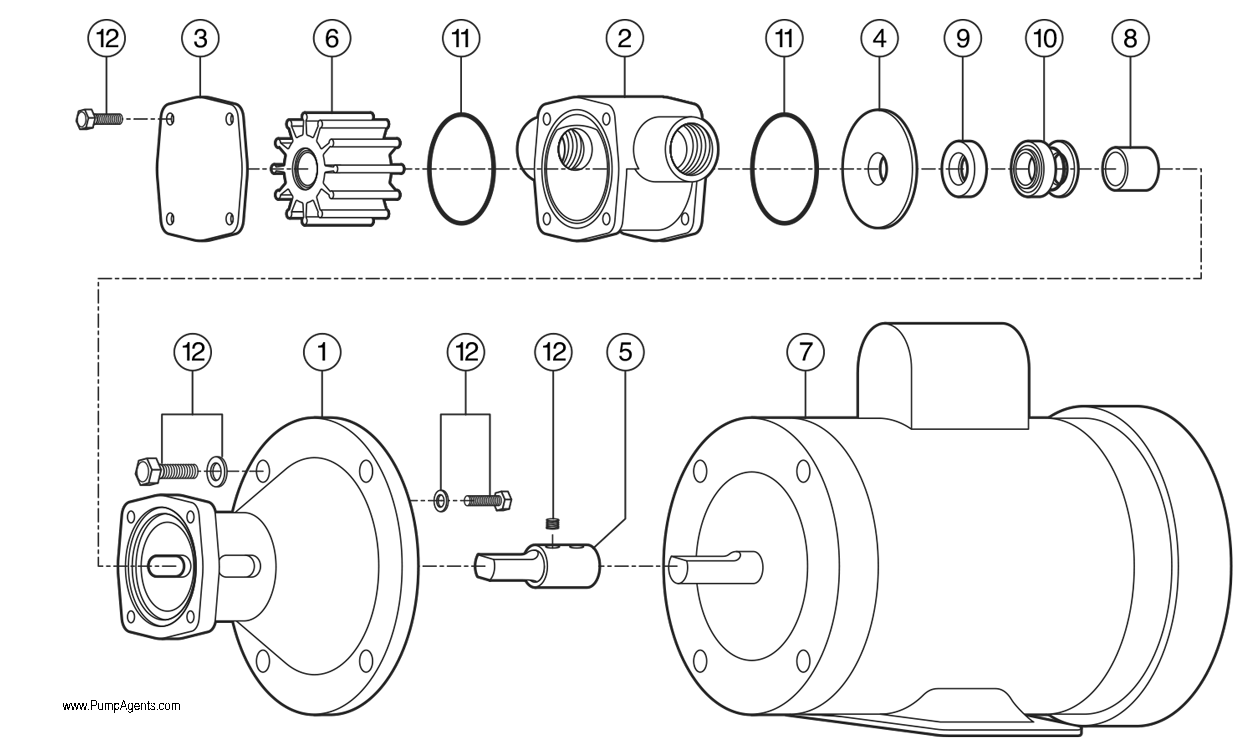

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30510-2001 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0215 | Adapter | $1073.07 | 6 in Stock | 1 | ||
| 2 | # 18753-0187 | Body | $765.28 | 9 in Stock | 1 | ||
| 3 | # 18753-0193 | End Cover | $113.97 | 4 in Stock | 1 | ||
| 4 | # 18753-0199 | Wearplate | $247.02 | 10 in Stock | 1 | ||
| 5 | # 18753-0209 | Shaft | $548.16 | 15 in Stock | 1 | ||
| 6 | # 14281-0001B | Impeller, Neoprene, Standard Pressure | $98.78 | 16 in Stock | 1 | ||
| 7 | # 18753-0219 | Motor, 3/4 HP, 115 Vac, 1 Ph, 60 Hz, TEFC, 56c Frame | $567.32 | 2 in Stock | 1 | ||
| 8 | # 18753-0223 | Seal Spacer, | $239.74 | 9 in Stock | 1 | ||
| 9 | # 18753-0233 | Seal Seat, Nitrile | $46.48 | 33 in Stock | 1 | ||
| 10 | # 18753-0241 | Mechanical Seal, Carbon - Nitrile | $95.88 | 42 in Stock | 1 | ||
| 11 | # 18753-0261 | O-Ring, Nitrile | $10.17 | 2493 in Stock | 2 | ||
| 12 | # 18753-0278 | Screw Kit, (Consists Of) Bolts, Hex Hd. 3/8-16 X 1 Screws, Hex Hd. M5 X 16mm Screws, Hex Hd. M5 X 8mm Set Screws, Cup Pt. 1/4-20 X 1/4 Set Screws, Dog Point 1/4-20x 1/2 Washers, Flat 3/8 Washers, Flat M5 | $75.61 | 31 in Stock | 1 | ||
