Jabsco Pump model 30510-2103 Parts

PARTS LIST for Jabsco Pump model # 30510-2103 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 30510-2103 Product Page )

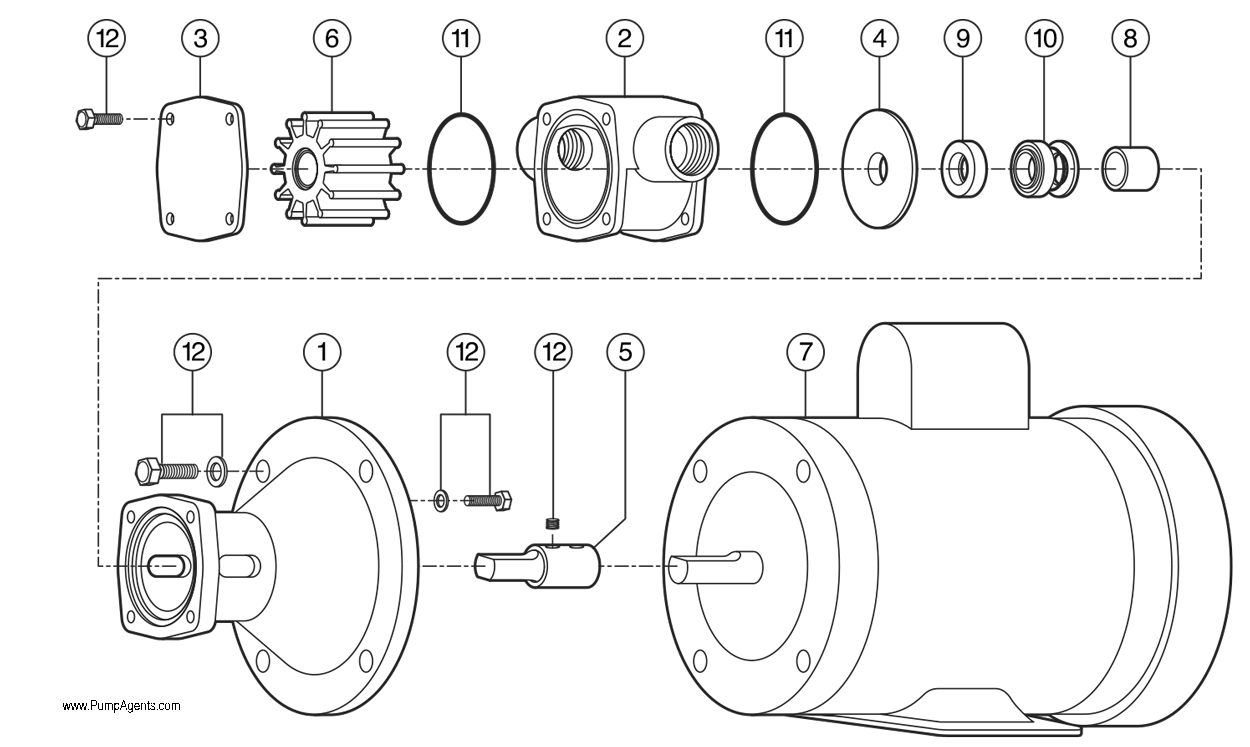

Blowup of 30510-2103

Item 1
(on image above)

Part # 18753-0215

Adapter

$ 1091.11 / each

Item 2
(on image above)

Part # 18753-0187

Body

$ 707.39 / each

Item 3
(on image above)

Part # 18753-0193

End Cover

$ 105.34 / each

Item 4
(on image above)

Part # 18753-0199

Wearplate

$ 228.34 / each

Item 5
(on image above)

Part # 18753-0209

Shaft

$ 506.70 / each

Item 6
(on image above)

Part # 14281-0003B

Impeller, Nitrile, Standard Pressure

$ 91.31 / each

Item 7
(on image above)

Part # 18753-0219

Motor, 3/4 HP, 115 Vac, 1 Ph, 60 Hz, TEFC, 56c Frame

$ 576.86 / each

Item 8
(on image above)

Part # 18753-0223

Seal Spacer,

$ 221.61 / each

Item 9
(on image above)

Part # 18753-0233

Seal Seat, Nitrile

$ 42.97 / each

Item 10
(on image above)

Part # 18753-0243

Seal

Mechanical Seal, Nitrile/Tungsten Carbide

$ 464.62 / each

Item 11
(on image above)

Part # 18753-0261

O-Ring, Nitrile

$ 9.41 / each

Item 12
(on image above)

Part # 18753-0278

Screw Kit, (Consists Of) Bolts, Hex Hd. 3/8-16 X 1 Screws, Hex Hd. M5 X 16mm Screws, Hex Hd. M5 X 8mm Set Screws, Cup Pt. 1/4-20 X 1/4 Set Screws, Dog Point 1/4-20x 1/2 Washers, Flat 3/8 Washers, Flat M5

$ 98.02 / each
