Jabsco Pump model 30510-3103 Parts( Click Here for the Jabsco Pump 30510-3103 Product Page ) |
|

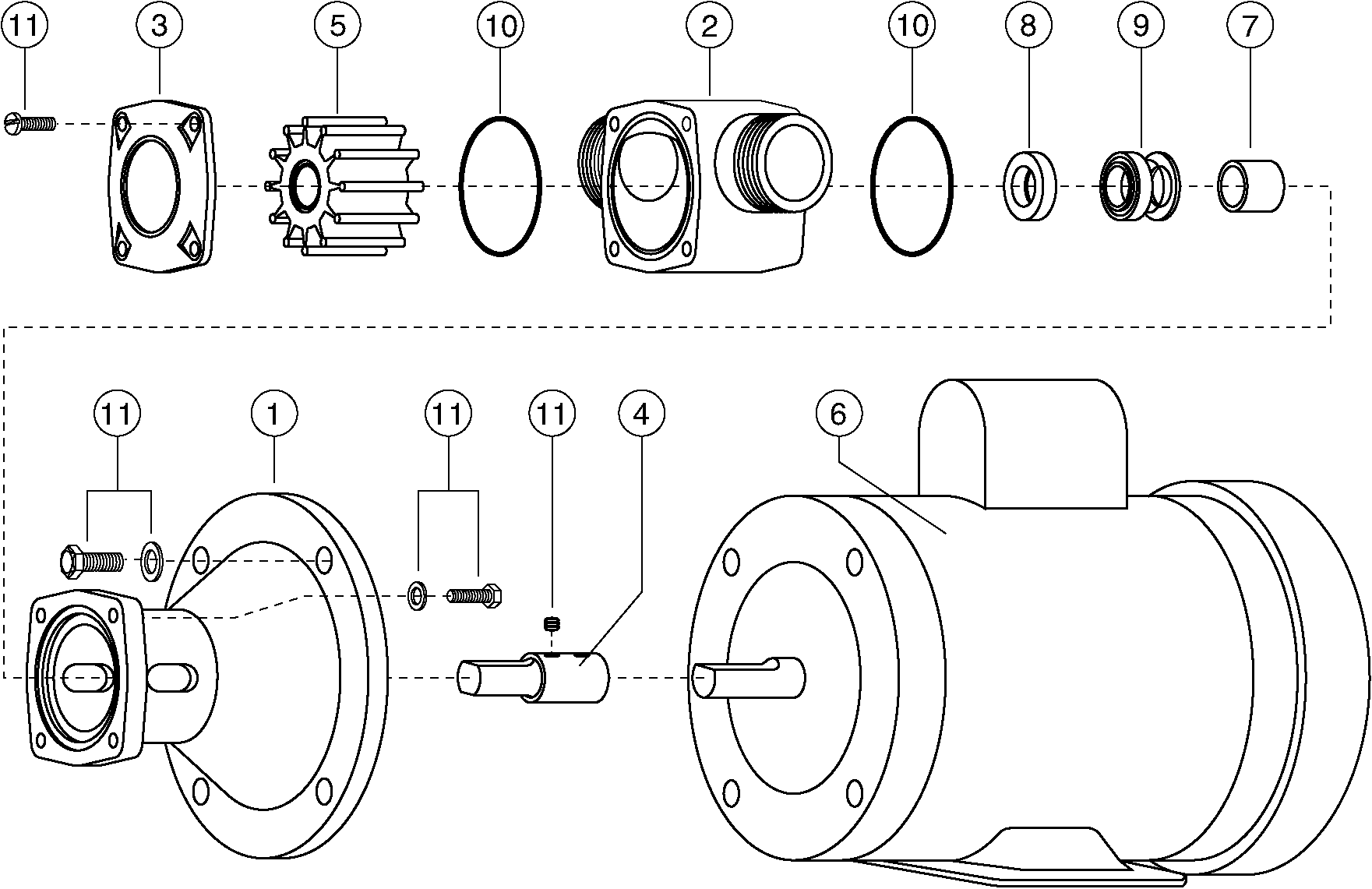

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30510-3103 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0215 | Adapter | $1073.07 | 6 in Stock | 1 | ||
| 2 | # 18753-0188 | Body | $368.64 | 24 in Stock | 1 | ||
| 3 | # 18753-0194 | End Cover | $152.64 | 35 in Stock | 1 | ||
| 4 | # 18753-0210 | Shaft | $461.90 | 3 in Stock | 1 | ||
| 5 | # 14281-0003B | Impeller, Standard Pressure - Nitrile | $98.78 | 42 in Stock | 1 | ||
| 6 | # 18753-0219 | Motor, 3/4 HP, 115 Vac, 1 Ph, 60 Hz, TEFC, 56c Frame | $567.32 | 2 in Stock | 1 | ||
| 7 | # 18753-0223 | Seal Spacer | $239.74 | 9 in Stock | 1 | ||
| 8 | # 18753-0234 | Seal Seat, Viton/Ceramic | $110.40 | 5 in Stock | 1 | ||
| 9 | # 18753-0244 | Mechanical Seal, Tungsten Carbide - Viton | $458.79 | 1 in Stock | 1 | ||
| 10 | # 18753-0262 | O-Ring, Viton | $21.79 | 11 in Stock | 1 | ||
| 11 | # 18753-0280 | Screw Kit | $94.41 | 17 in Stock | 1 | ||
