Jabsco Pump model 30510-5101 Parts

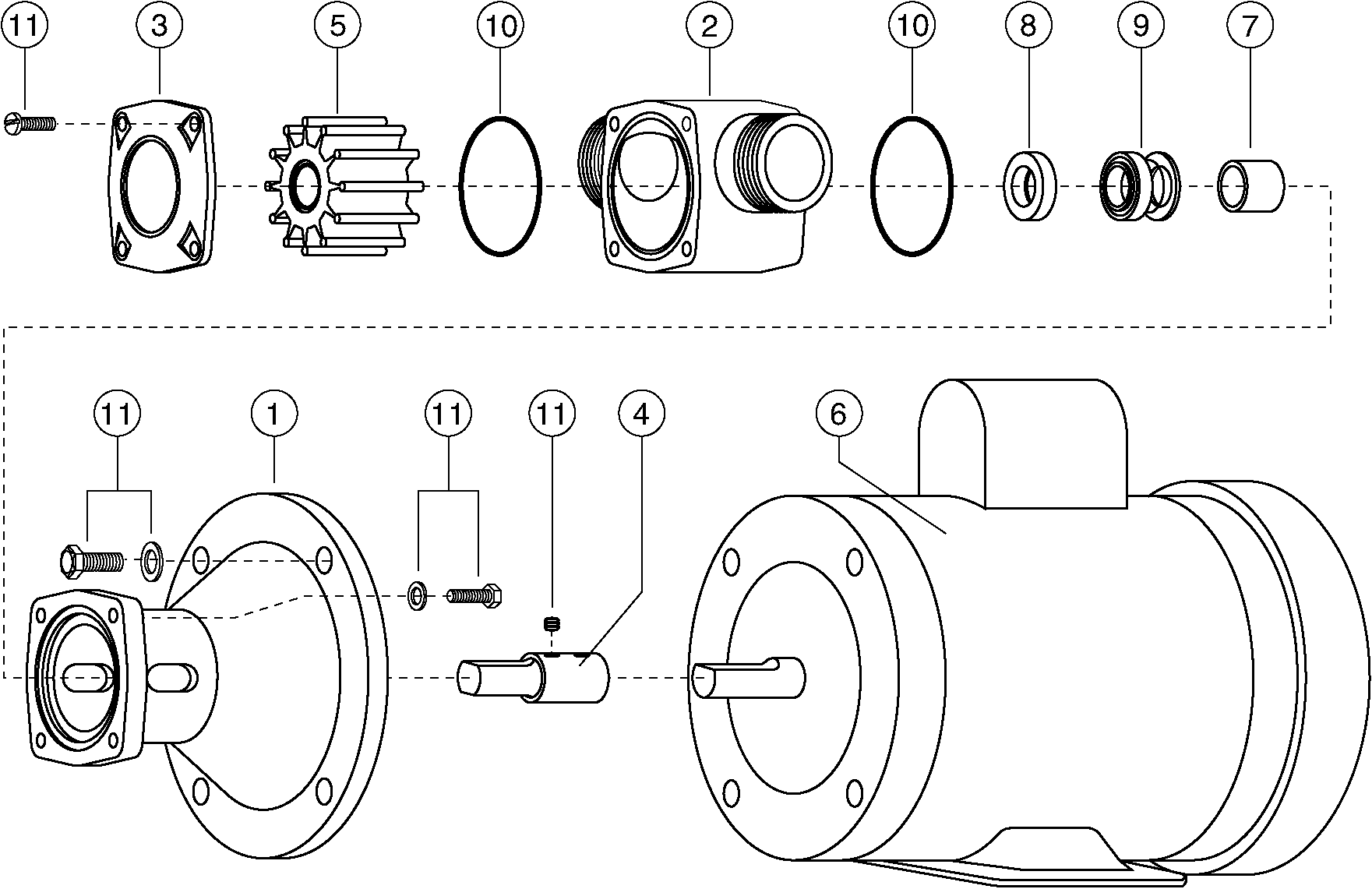

PARTS LIST for Jabsco Pump model # 30510-5101 Pump:
To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
( Click Here for the Jabsco Pump 30510-5101 Product Page )
Item 1
(on image above)
Adapter
$ 1091.11 / each
Item 2
(on image above)
Body
$ 374.83 / each
Item 3
(on image above)
End Cover
$ 155.21 / each
Item 4
(on image above)
Shaft
$ 469.66 / each
Item 5
(on image above)
Impeller, Standard Pressure - Neoprene
$ 91.31 / each
Item 6
(on image above)
Motor, 3/4 HP, 115 Vac, 1 Ph, 60 Hz, TEFC, 56c Frame
$ 576.86 / each
Item 7
(on image above)
Seal Spacer
$ 221.61 / each
Item 8
(on image above)
Seal Seat, Viton/Ceramic
$ 102.05 / each
Item 9
(on image above)
Seal
Mechanical Seal, Tungsten Carbide - Viton
$ 466.50 / each
Item 10
(on image above)
O-Ring, Viton
$ 20.15 / each
Item 11
(on image above)
Screw Kit
$ 96.00 / each
