Jabsco Pump model 30520-0004 Parts

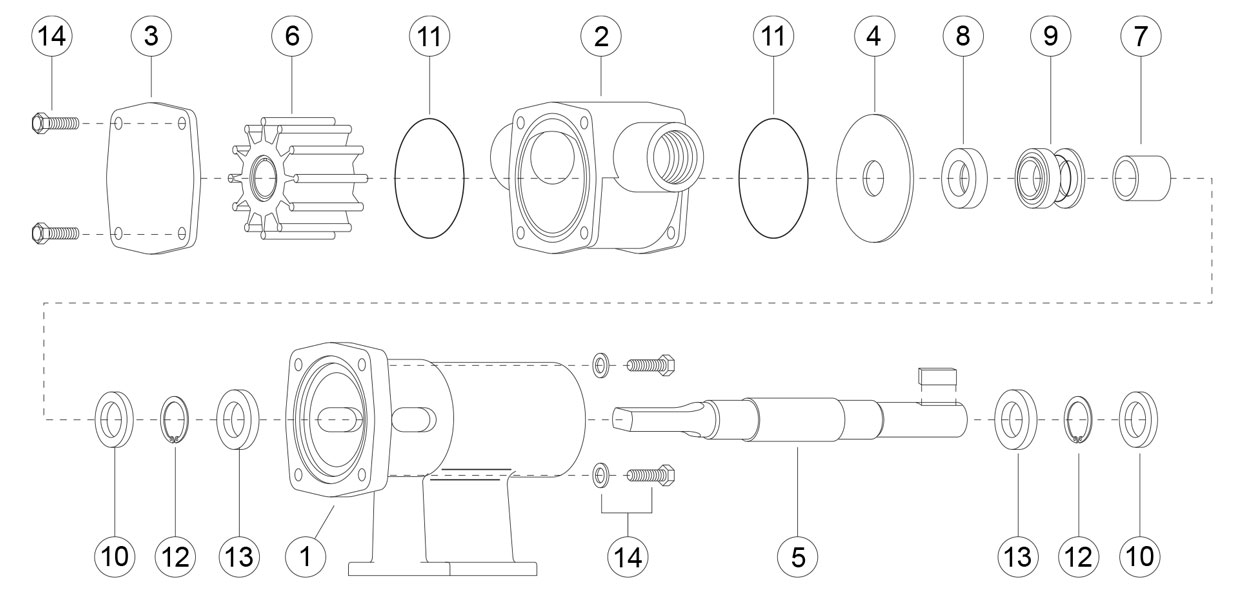

PARTS LIST for Jabsco Pump model # 30520-0004 Pump:
( Click Here for the Jabsco Pump 30520-0004 Product Page )
Item 1
(on image above)
Bearing Housing
$ 457.55 / each
Item 2
(on image above)
Body
$ 629.99 / each
Item 3
(on image above)
End Cover
$ 121.48 / each
Item 4
(on image above)
Wearplate
$ 229.80 / each
Item 5
(on image above)
Shaft
$ 447.66 / each
Item 6
(on image above)
Impeller, Standard Pressure - Viton
$ 150.39 / each
Item 7
(on image above)
Spacer,
$ 265.56 / each
Item 8
(on image above)
Seal Seat, Ceramic Viton
$ 102.05 / each
Item 9
(on image above)
Mechanical Seal, Viton/Carbon/Ceramic, less Seal Seat
$ 400.16 / each
Item 10
(on image above)
Bearing Seal
$ 28.21 / each
Item 11
(on image above)
O-Ring, Viton
$ 22.83 / each
Item 12
(on image above)
Retaining Ring
$ 12.09 / each
Item 13
(on image above)
Bearing
$ 48.33 / each
Item 14
(on image above)
Screw Kit, consists of Screws, Hex Hd. M6 x 20mm (4) Screws, Pan Hd. M6 x 20mm (4) Washers, Flat M6 (4)
$ 32.22 / each
