Jabsco Pump model 30520-0012 Parts

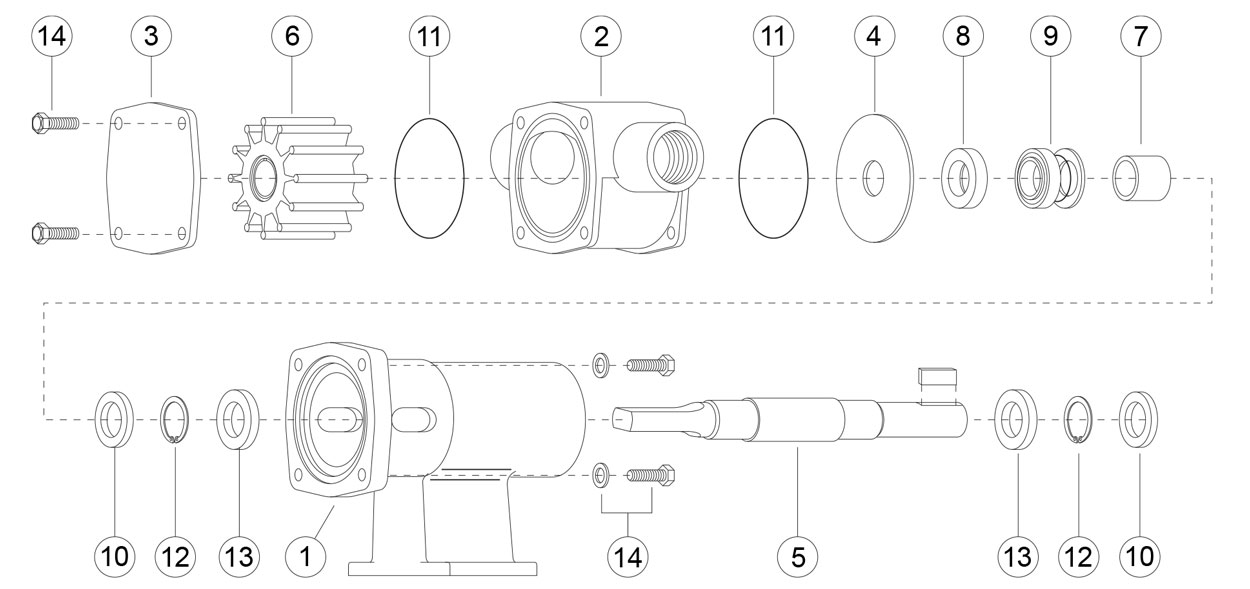

PARTS LIST for Jabsco Pump model # 30520-0012 Pump:
( Click Here for the Jabsco Pump 30520-0012 Product Page )
Item 1
(on image above)
Bearing Housing
$ 457.55 / each
Item 2
(on image above)
Body
$ 692.99 / each
Item 3
(on image above)
End Cover
$ 133.63 / each
Item 4
(on image above)
Wearplate
$ 252.78 / each
Item 5
(on image above)
Shaft
$ 492.43 / each
Item 6
(on image above)
Impeller, High Pressure - EPDM
$ 200.88 / each
Item 7
(on image above)
Spacer,
$ 292.11 / each
Item 8
(on image above)
Seal Seat, Nitrile
$ 47.26 / each
Item 9
(on image above)
Mechanical Seal, Nitrile/Carbon/Ceramic
$ 121.12 / each
Item 10
(on image above)
Bearing Seal
$ 31.02 / each
Item 11
(on image above)
O-Ring, Nitrile
$ 10.35 / each
Item 12
(on image above)
Retaining Ring
$ 13.29 / each
Item 13
(on image above)
Bearing
$ 48.33 / each
Item 14
(on image above)
Screw Kit, consists of Screws, Hex Hd. M6 x 20mm (4) Screws, Pan Hd. M6 x 20mm (4) Washers, Flat M6 (4)
$ 24.90 / each
