Jabsco Pump model 30520-0014 Parts |
|

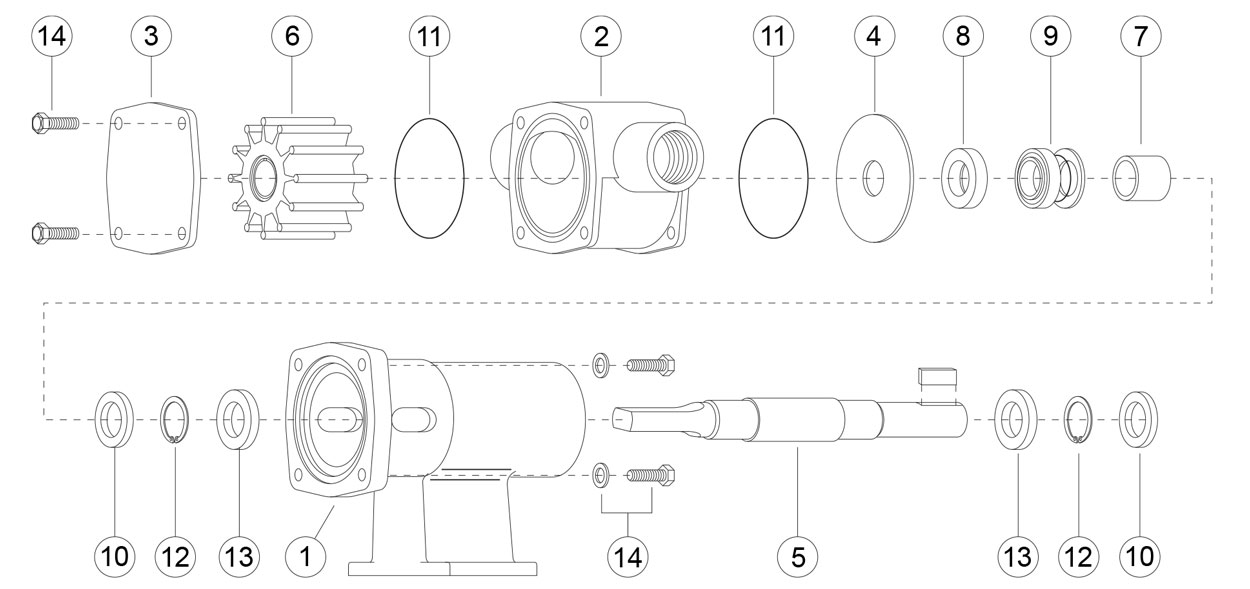

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30520-0014 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0184 | Bearing Housing | $449.99 | 4 in Stock | 1 is Req'd | ||
| 2 | # 18753-0189 | Body | $681.54 | 9 in Stock | 1 is Req'd | ||
| 3 | # 18753-0195 | End Cover | $131.42 | 9 in Stock | 1 is Req'd | ||
| 4 | # 18753-0200 | Wearplate | $248.60 | 9 in Stock | 1 is Req'd | ||
| 5 | # 18753-0205 | Shaft | $484.29 | 4 in Stock | 1 is Req'd | ||
| 6 | # 8840-0004 | Impeller, High Pressure - Viton | $667.53 | 0 in Stock | 1 is Req'd | ||
| 7 | # 18753-0225 | Spacer, | $287.28 | 5 in Stock | 1 is Req'd | ||
| 8 | # 18753-0236 | Seal Seat, Ceramic Viton | $110.40 | 8 in Stock | 1 is Req'd | ||
| 9 | # 18753-0246 | Mechanical Seal, Viton/Carbon/Ceramic, less Seal Seat | $432.90 | 7 in Stock | 1 is Req'd | ||
| 10 | # 18753-0258 | Bearing Seal | $30.51 | 25 in Stock | 2 are Req'd | ||
| 11 | # 18753-0264 | O-Ring, Viton | $24.70 | 6 in Stock | 1 is Req'd | ||
| 12 | # 18753-0270 | Retaining Ring | $13.07 | 20 in Stock | 2 are Req'd | ||
| 13 | # 18753-0274 | Bearing | $47.53 | 6 in Stock | 2 are Req'd | ||
| 14 | # 18753-0281 | Screw Kit, consists of Screws, Hex Hd. M6 x 20mm (4) Screws, Pan Hd. M6 x 20mm (4) Washers, Flat M6 (4) | $24.49 | 8 in Stock | 1 is Req'd | ||
