Jabsco Pump model 30520-1004 Parts

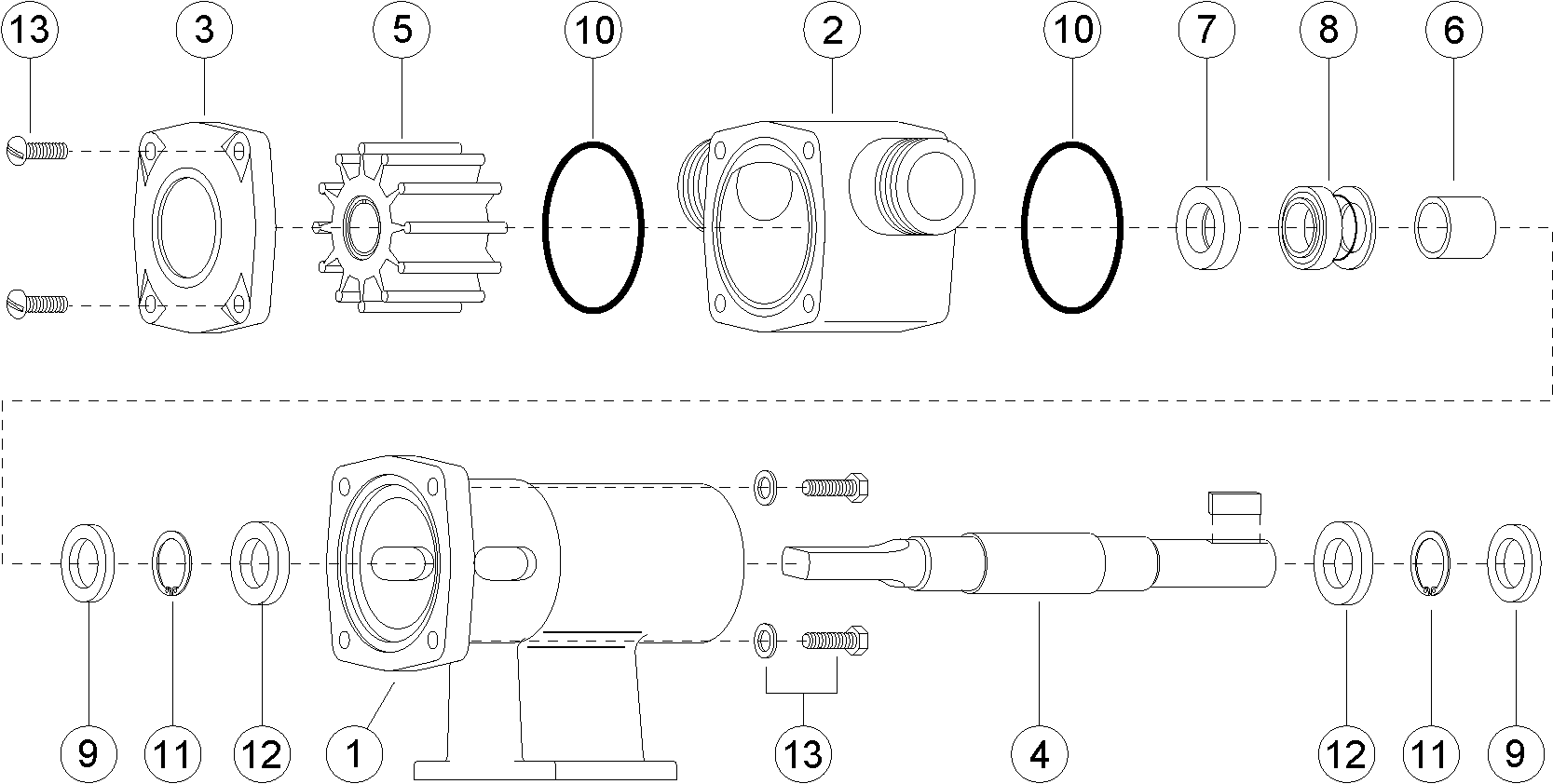

PARTS LIST for Jabsco Pump model # 30520-1004 Pump:
( Click Here for the Jabsco Pump 30520-1004 Product Page )
Item 1
(on image above)
Bearing Housing
$ 449.99 / each
Item 2
(on image above)
Body
$ 419.06 / each
Item 3
(on image above)
End Cover
$ 172.06 / each
Item 4
(on image above)
Shaft
$ 720.37 / each
Item 5
(on image above)
Impeller, Standard Pressure - Viton
$ 162.70 / each
Item 6
(on image above)
Spacer,
$ 287.28 / each
Item 7
(on image above)
Seal Seat, Ceramic Viton
$ 110.40 / each
Item 8
(on image above)
Seal
Mechanical Seal, Viton/Carbon/Ceramic, less Seal Seat
$ 432.90 / each
Item 9
(on image above)
Bearing Seal
$ 30.51 / each
Item 10
(on image above)
O-Ring, Viton
$ 24.70 / each
Item 11
(on image above)
Retaining Ring
$ 13.07 / each
Item 12
(on image above)
Bearing
$ 47.53 / each
Item 13
(on image above)
Screw Kit, consists of Screws, Hex Hd. M6 x 20mm (4) Screws, Pan Hd. M6 x 20mm (4) Washers, Flat M6 (4)
$ 41.08 / each
