Jabsco Pump model 30520-1101 Parts( Click Here for the Jabsco Pump 30520-1101 Product Page ) |
|

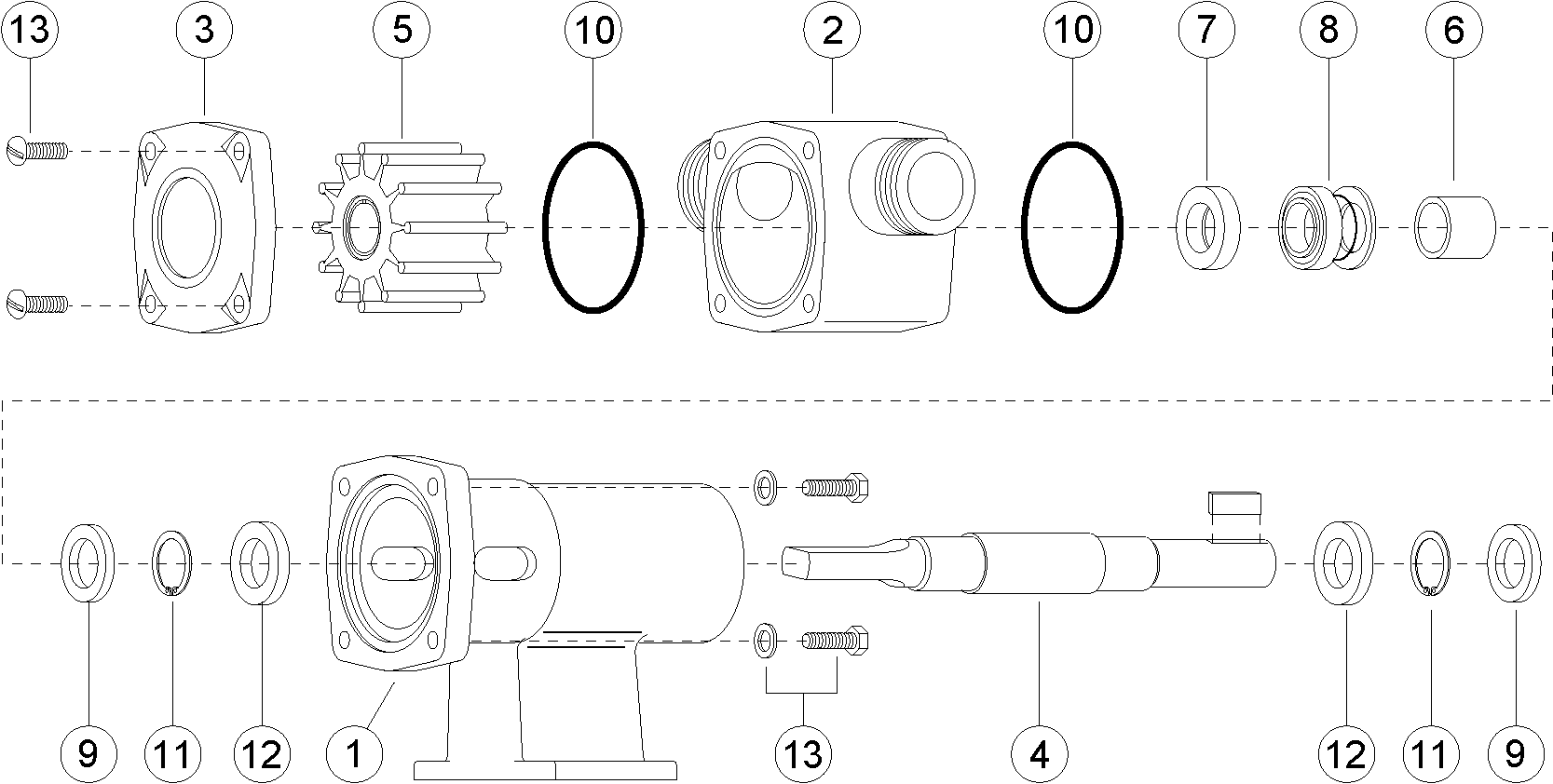

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30520-1101 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0184 | Bearing Housing | $449.99 | 4 in Stock | 1 | ||
| 2 | # 18753-0190 | Body | $419.06 | 0 in Stock | 1 | ||
| 3 | # 18753-0196 | End Cover | $172.06 | 4 in Stock | 1 | ||
| 4 | # 18753-0206 | Shaft | $720.37 | 2 in Stock | 1 | ||
| 5 | # 14282-0001B | Impeller, Standard Pressure - Neoprene | $123.49 | 74 in Stock | 1 | ||
| 6 | # 18753-0225 | Spacer, | $287.28 | 5 in Stock | 1 | ||
| 7 | # 18753-0235 | Seal Seat, Nitrile | $46.48 | 52 in Stock | 1 | ||
| 8 | # 18753-0247 | Mechanical Seal, Tungsten Carbide - Nitrile | $556.36 | 2 in Stock | 1 | ||
| 9 | # 18753-0258 | Bearing Seal | $30.51 | 25 in Stock | 2 | ||
| 10 | # 18753-0263 | O-Ring, Nitrile | $10.17 | 116 in Stock | 2 | ||
| 11 | # 18753-0270 | Retaining Ring | $13.07 | 20 in Stock | 2 | ||
| 12 | # 18753-0274 | Bearing | $47.53 | 14 in Stock | 2 | ||
| 13 | # 18753-0283 | Screw Kit, consists of Screws, Hex Hd. M6 x 20mm (4) Screws, Pan Hd. M6 x 20mm (4) Washers, Flat M6 (4) | $41.08 | 0 in Stock | 1 | ||
