Jabsco Pump model 30520-1102 Parts

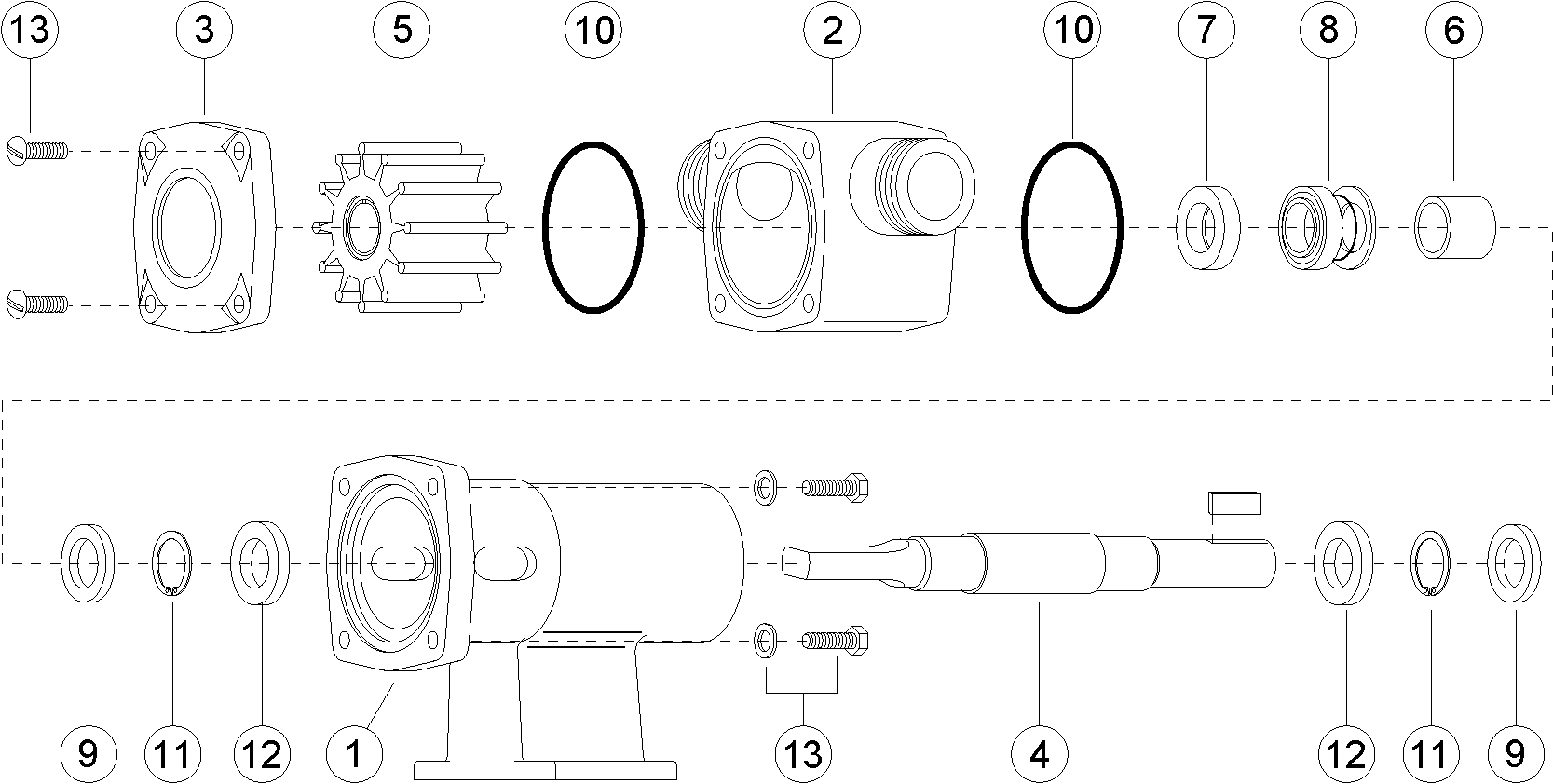

PARTS LIST for Jabsco Pump model # 30520-1102 Pump:
( Click Here for the Jabsco Pump 30520-1102 Product Page )
Item 1
(on image above)
Bearing Housing
$ 457.55 / each
Item 2
(on image above)
Body
$ 426.10 / each
Item 3
(on image above)
End Cover
$ 174.95 / each
Item 4
(on image above)
Shaft
$ 732.47 / each
Item 5
(on image above)
Impeller, Standard Pressure - EPDM
$ 150.66 / each
Item 6
(on image above)
Spacer,
$ 292.11 / each
Item 7
(on image above)
Seal Seat, Ceramic Viton
$ 112.25 / each
Item 8
(on image above)
Seal
Mechanical Seal, Tungsten Carbide - Viton
$ 578.67 / each
Item 9
(on image above)
Bearing Seal
$ 31.02 / each
Item 10
(on image above)
O-Ring, Viton
$ 25.12 / each
Item 11
(on image above)
Retaining Ring
$ 13.29 / each
Item 12
(on image above)
Bearing
$ 48.33 / each
Item 13
(on image above)
Screw Kit, consists of Screws, Hex Hd. M6 x 20mm (4) Screws, Pan Hd. M6 x 20mm (4) Washers, Flat M6 (4)
$ 41.77 / each
