Jabsco Pump model 30520-2004 Parts |
|

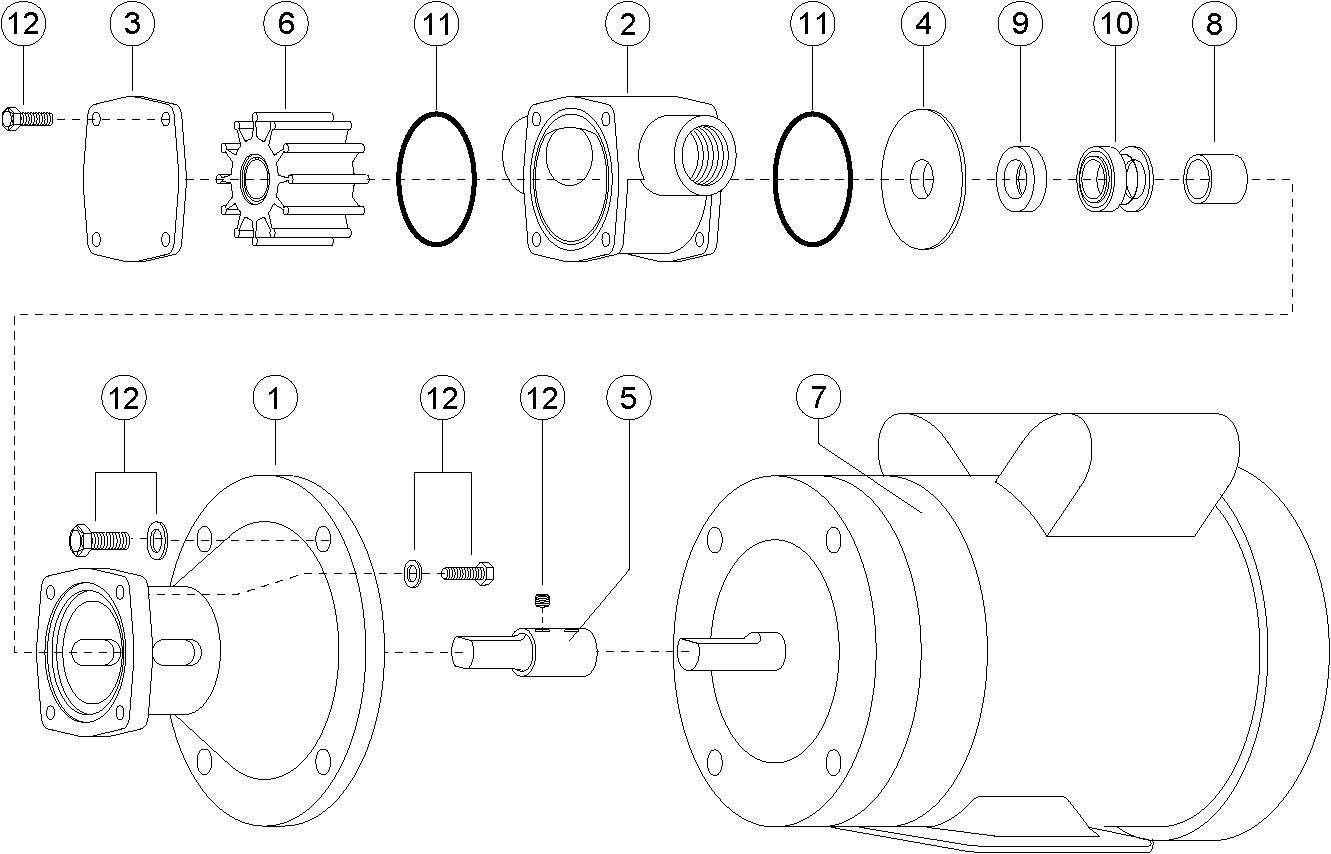

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30520-2004 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0216 | Adaptor | $646.48 | 9 in Stock | 1 | ||
| 2 | # 18753-0189 | Body | $681.54 | 9 in Stock | 1 | ||
| 3 | # 18753-0195 | End Cover | $131.42 | 9 in Stock | 1 | ||
| 4 | # 18753-0200 | Wearplate | $248.60 | 9 in Stock | 1 | ||
| 5 | # 18753-0211 | Shaft | $866.03 | 9 in Stock | 1 | ||
| 6 | # 14282-0003B | Impeller, Standard Pressure - Nitrile | $123.49 | 65 in Stock | 1 | ||
| 6 | # 14282-0004B | Impeller, Standard Pressure - Viton | $162.70 | 9 in Stock | 1 | ||
| 8 | # 18753-0227 | Spacer | $179.20 | 8 in Stock | 1 | ||
| 9 | # 18753-0236 | Seal Seat, Ceramic Viton | $110.40 | 8 in Stock | 1 | ||
| 10 | # 18753-0246 | Mechanical Seal, Viton/Carbon/Ceramic, less Seal Seat | $432.90 | 7 in Stock | 1 | ||
| 11 | # 18753-0264 | O-Ring, Viton | $24.70 | 6 in Stock | 1 | ||
| 12 | # 18753-0282 | Screw Kit, consists of Screws, Hex Hd 3/8 -16 x 1 (4) Screws, Hex Hd M6 x 16mm (4) Screws, Hex Hd M6 x 10mm (4) Set Screw, Cup Pt. 1/4-20 x 3/8 (2) Set Screw, Dog Pt. 1/4-20 x 3/8 (2) Washers, Flat 3/8 (4) Washers, Flat M6 (4) | $84.80 | 10 in Stock | 1 | ||
