Jabsco Pump model 30520-3002 Parts

PARTS LIST for Jabsco Pump model # 30520-3002 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 30520-3002 Product Page )

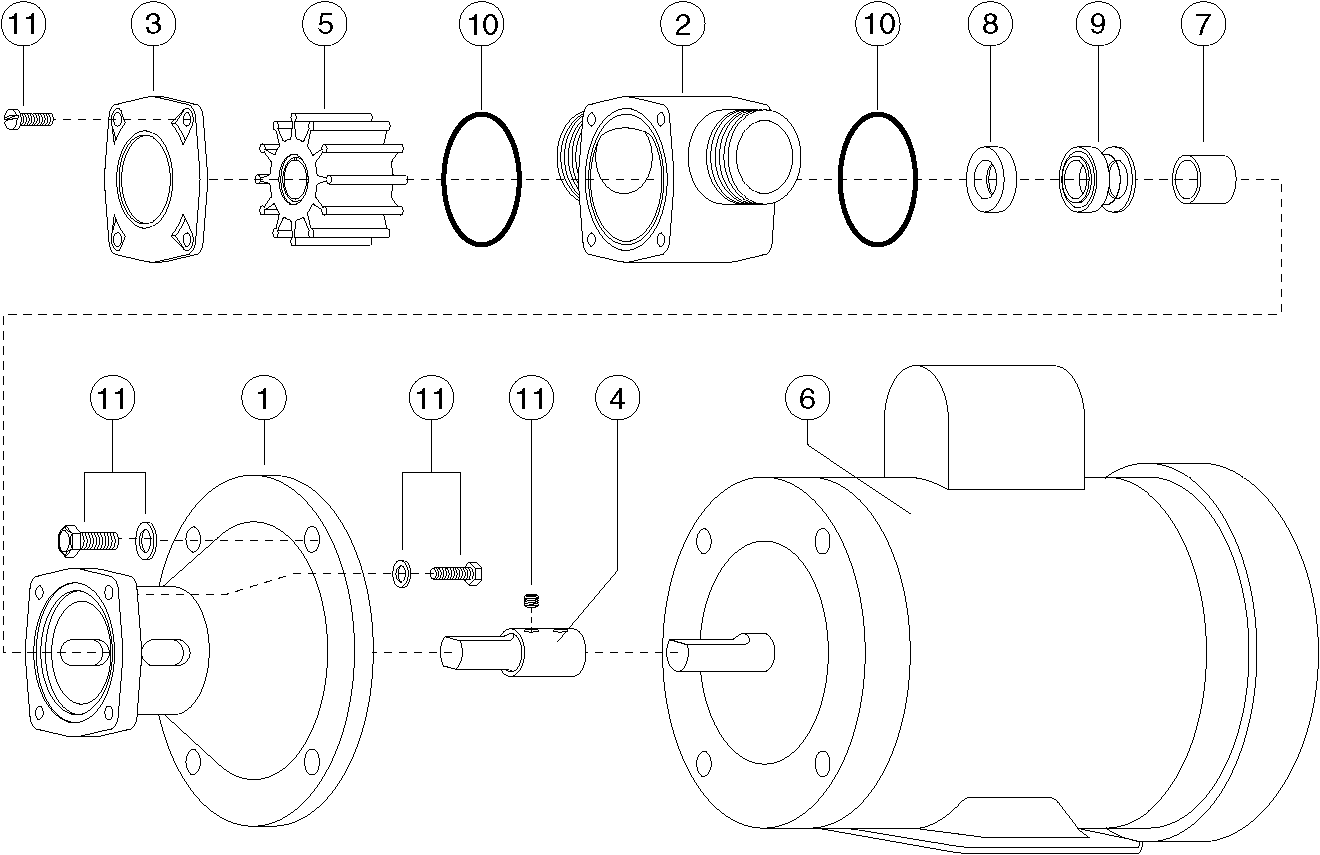

Blowup of 30520-3002

Item 1
(on image above)

Part # 18753-0216

Adaptor

$ 657.34 / each

Item 2
(on image above)

Part # 18753-0190

Body

$ 426.10 / each

Item 3
(on image above)

Part # 18753-0196

End Cover

$ 174.95 / each

Item 4
(on image above)

Part # 18753-0212

Shaft

$ 486.63 / each

Item 5
(on image above)

Part # 8981-0002B

Impeller, Standard Pressure - Epdm

$ 150.66 / each

Item 6
(on image above)

Part # 18753-0339

Motor, 1-1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1740 RPM, TEFC, H145tc Frame, C-Face, Overload Protected, with Capacitor Start

$ 1052.39 / each

Item 7
(on image above)

Part # 18753-0227

Spacer

$ 182.21 / each

Item 8
(on image above)

Part # 18753-0236

Seal Seat, Ceramic Viton

$ 112.25 / each

Item 9
(on image above)

Part # 18753-0246

Seal

Mechanical Seal, Viton/Carbon/Ceramic, less Seal Seat

$ 440.17 / each

Item 10
(on image above)

Part # 18753-0264

O-Ring, Viton

$ 25.12 / each

Item 11
(on image above)

Part # 18753-0284

Screw Kit, Consists Of Screws, Hex Hd. 3/8 -16 X 1 (4) Screws, Hex Hd M5 X 16mm (4) Screws, Hex Hd M5 X 160mm (4) Set Screw, Cup Pt. 1/4-20 X 3/8 (2) Set Screw, Dog Pt. 1/4-20 X 3/8 (2) Washers, Flat 3/8 (4) Washers, Flat M5 (4)

$ 112.24 / each
