Jabsco Pump model 30520-4104 Parts |
|

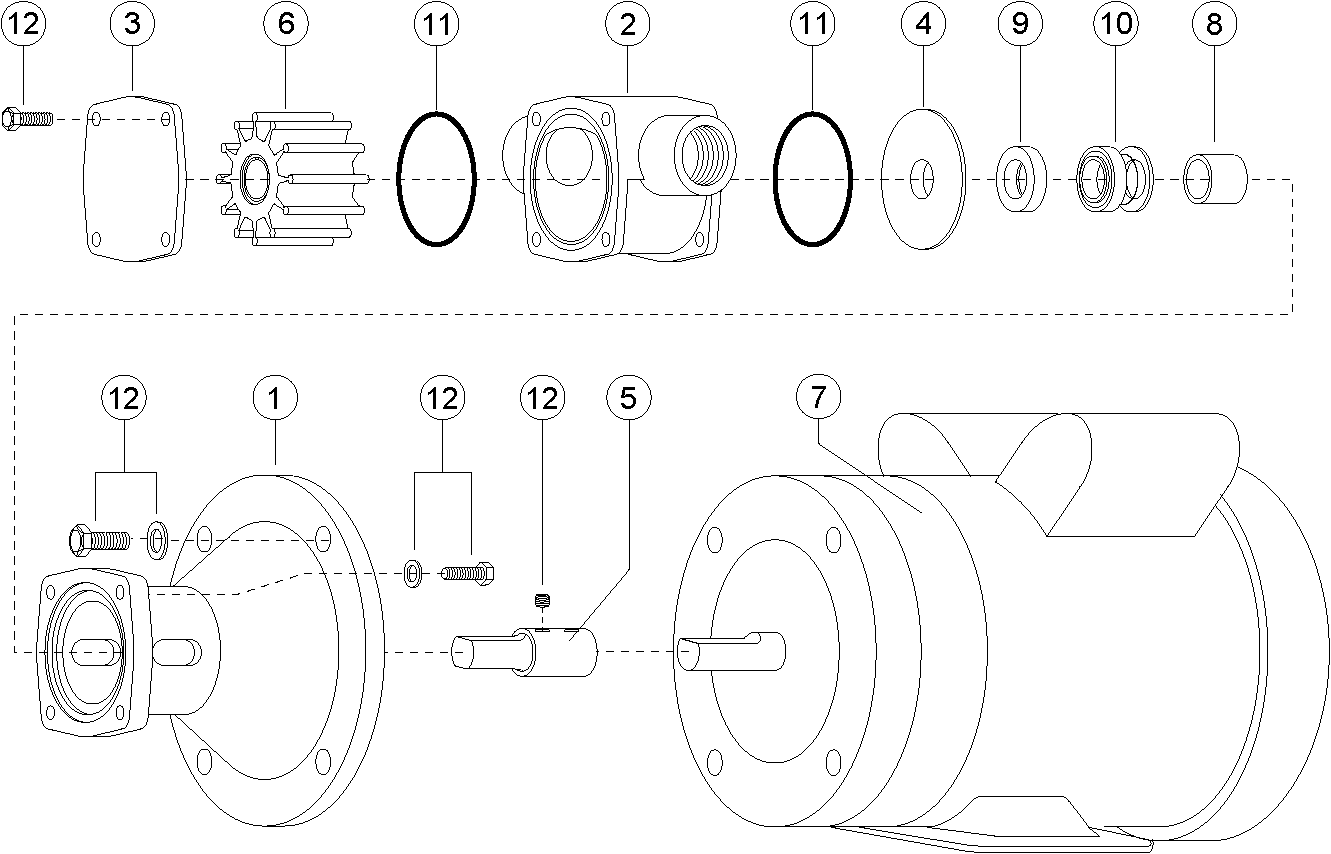

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30520-4104 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0216 | Adaptor | $646.48 | 9 in Stock | 1 | ||
| 2 | # 18753-0189 | Body | $681.54 | 9 in Stock | 1 | ||
| 3 | # 18753-0195 | End Cover | $131.42 | 9 in Stock | 1 | ||
| 4 | # 18753-0200 | Wearplate | $248.60 | 9 in Stock | 1 | ||
| 5 | # 18753-0211 | Shaft | $866.03 | 9 in Stock | 1 | ||
| 6 | # 14282-0004B | Impeller, Standard Pressure - Viton | $162.70 | 9 in Stock | 1 | ||
| 7 | # 18753-0339 | Motor, 1-1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1740 RPM, TEFC, H145tc Frame, C-Face, Overload Protected, with Capacitor Start | $1034.99 | 2 in Stock | 1 | ||
| 8 | # 18753-0227 | Spacer | $179.20 | 8 in Stock | 1 | ||
| 9 | # 18753-0236 | Seal Seat, Ceramic Viton | $110.40 | 8 in Stock | 1 | ||
| 10 | # 18753-0248 | Mechanical Seal, Tungsten Carbide - Viton | $569.11 | 3 in Stock | 1 | ||
| 11 | # 18753-0264 | O-Ring, Viton | $24.70 | 6 in Stock | 1 | ||
| 12 | # 18753-0282 | Screw Kit, consists of Screws, Hex Hd 3/8 -16 x 1 (4) Screws, Hex Hd M6 x 16mm (4) Screws, Hex Hd M6 x 10mm (4)Set Screw, Cup Pt. 1/4-20 x 3/8 (2) Set Screw, Dog Pt. 1/4-20 x 3/8 (2) Washers, Flat 3/8 (4) Washers, Flat M6 (4) | $84.80 | 10 in Stock | 1 | ||
| NS | # 30520-2104 | Pump End Only, no motor | $4371.67 | 2 in Stock | 1 | ||
