Jabsco Pump model 30520-5001 Parts |
|

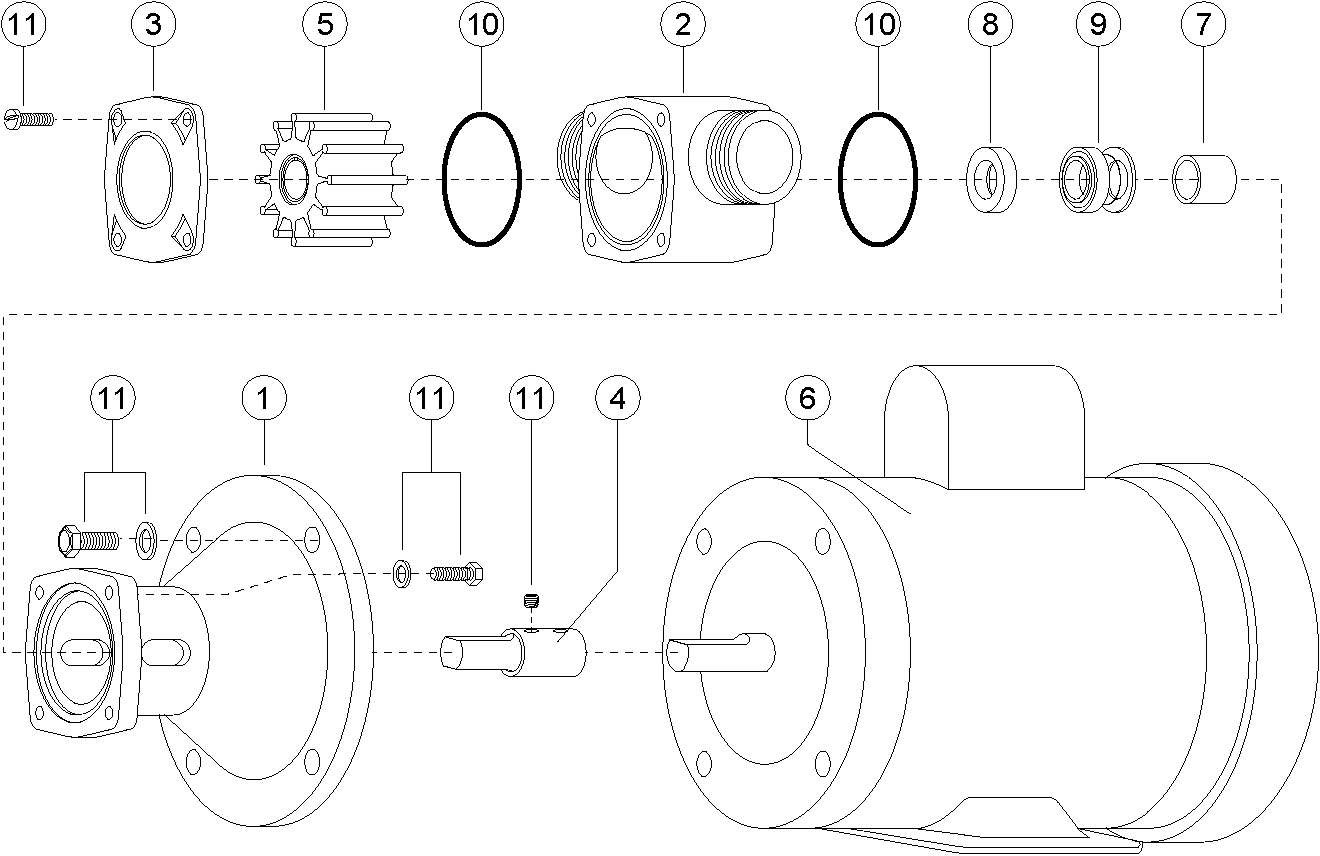

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30520-5001 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0216 | Adaptor | $646.48 | 9 in Stock | 1 | ||
| 2 | # 18753-0190 | Body | $419.06 | 0 in Stock | 1 | ||
| 3 | # 18753-0196 | End Cover | $172.06 | 4 in Stock | 1 | ||
| 4 | # 18753-0212 | Shaft | $478.58 | 2 in Stock | 1 | ||
| 5 | # 14282-0001B | Impeller, Standard Pressure - Neoprene | $123.49 | 75 in Stock | 1 | ||
| 6 | # 18753-0339 | Motor, 1-1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1740 RPM, TEFC, H145tc Frame, C-Face, Overload Protected, with Capacitor Start | $1034.99 | 2 in Stock | 1 | ||
| 7 | # 18753-0227 | Spacer | $179.20 | 8 in Stock | 1 | ||
| 8 | # 18753-0235 | Seal Seat, Nitrile | $46.48 | 58 in Stock | 1 | ||
| 9 | # 18753-0245 | Mechanical Seal, Nitrile/Carbon/Ceramic | $119.12 | 79 in Stock | 1 | ||
| 10 | # 18753-0263 | O-Ring, Nitrile | $10.17 | 120 in Stock | 2 | ||
| 11 | # 18753-0284 | Screw Kit, consists of Screws, Hex Hd. 3/8 -16 x 1 (4) Screws, Hex Hd M5 x 16mm (4) Screws, Hex Hd M5 x 160mm (4) Set Screw, Cup Pt. 1/4-20 x 3/8 (2) Set Screw, Dog Pt. 1/4-20 x 3/8 (2) Washers, Flat 3/8 (4) Washers, Flat M5 (4) | $110.38 | 5 in Stock | 1 | ||
