Jabsco Pump model 30520-5002 Parts( Click Here for the Jabsco Pump 30520-5002 Product Page ) |
|

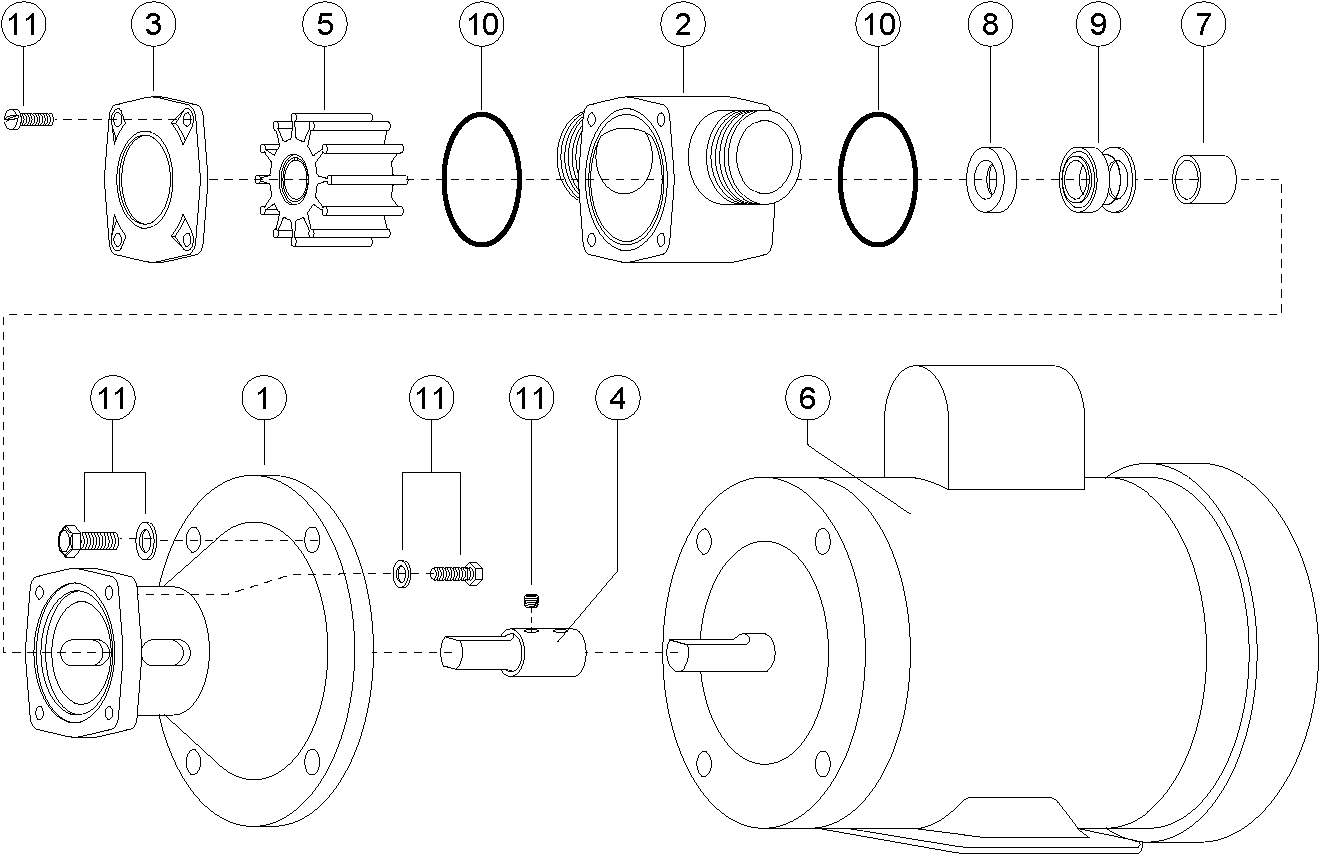

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30520-5002 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0216 | Adaptor | $646.48 | 7 in Stock | 1 | ||
| 2 | # 18753-0190 | Body | $419.06 | 0 in Stock | 1 | ||
| 3 | # 18753-0196 | End Cover | $172.06 | 4 in Stock | 1 | ||
| 4 | # 18753-0212 | Shaft | $478.58 | 2 in Stock | 1 | ||
| 5 | # 8981-0002B | Impeller, Standard Pressure - EPDM | $148.17 | 16 in Stock | 1 | ||
| 6 | # 18753-0339 | Motor, 1-1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1740 RPM, TEFC, H145tc Frame, C-Face, Overload Protected, with Capacitor Start | $1034.99 | 2 in Stock | 1 | ||
| 7 | # 18753-0227 | Spacer | $179.20 | 6 in Stock | 1 | ||
| 8 | # 18753-0236 | Seal Seat, Ceramic Viton | $110.40 | 8 in Stock | 1 | ||
| 9 | # 18753-0246 | Mechanical Seal, Viton/Carbon/Ceramic, less Seal Seat | $432.90 | 7 in Stock | 1 | ||
| 10 | # 18753-0264 | O-Ring, Viton | $24.70 | 6 in Stock | 1 | ||
| 11 | # 18753-0284 | Screw Kit, consists of Screws, Hex Hd. 3/8 -16 x 1 (4) Screws, Hex Hd M5 x 16mm (4) Screws, Hex Hd M5 x 160mm (4) Set Screw, Cup Pt. 1/4-20 x 3/8 (2) Set Screw, Dog Pt. 1/4-20 x 3/8 (2) Washers, Flat 3/8 (4) Washers, Flat M5 (4) | $110.38 | 5 in Stock | 1 | ||
