Jabsco Pump model 30530-0012 Parts

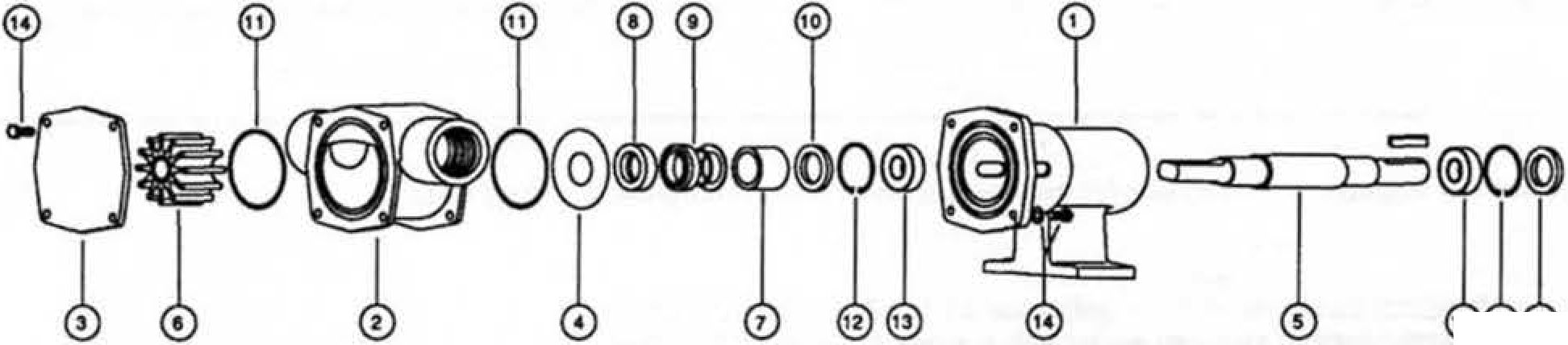

PARTS LIST for Jabsco Pump model # 30530-0012 Pump:
( Click Here for the Jabsco Pump 30530-0012 Product Page )
Item 1
(on image above)
Bearing Housing
$ 657.09 / each
Item 2
(on image above)
Body
$ 1068.09 / each
Item 3
(on image above)
End Cover
$ 275.76 / each
Item 4
(on image above)
Wearplate
$ 293.95 / each
Item 5
(on image above)
Shaft
$ 732.96 / each
Item 6
(on image above)
Impeller, High Pressure - EPDM
$ 422.45 / each
Item 7
(on image above)
Spacer, Carbon
$ 254.02 / each
Item 8
(on image above)
Seal Seat, Carbon - Viton
$ 178.72 / each
Item 9
(on image above)
Seal
Mechanical Seal, Viton/Carbon/Ceramic, less Seal Seat
$ 505.15 / each
Item 10
(on image above)
Bearing Seal
$ 35.44 / each
Item 11
(on image above)
O-Ring, Viton
$ 41.64 / each
Item 12
(on image above)
Retaining Ring
$ 25.12 / each
Item 13
(on image above)
Bearing
$ 99.12 / each
Item 14
(on image above)
Screw Kit, (Consists Of) Screw. Hex Hd. M8 X 20mm (4) Screw. Hex Hd. M8 X 14mm (4) Washer, Rat M8 (4)
$ 22.00 / each
