Jabsco Pump model 30530-0112 Parts

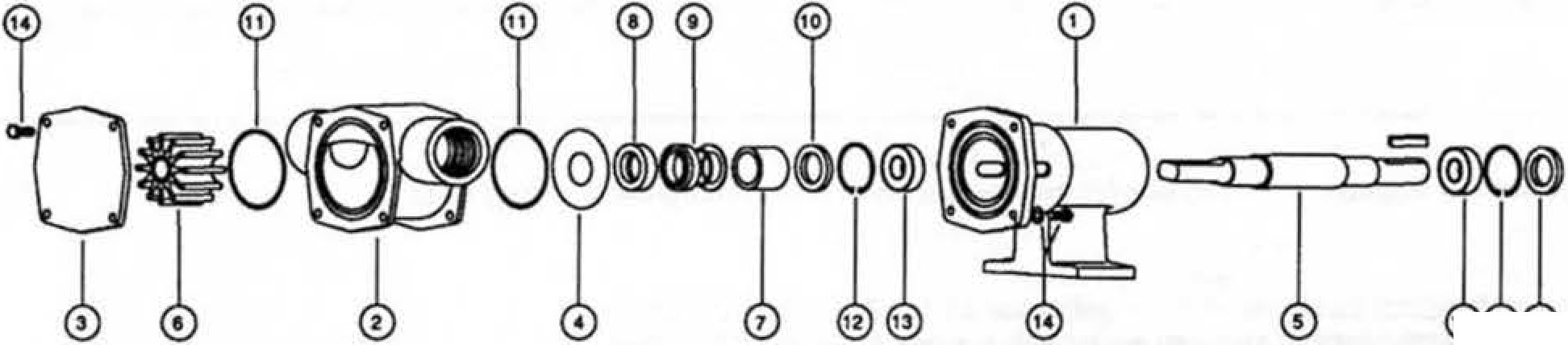

PARTS LIST for Jabsco Pump model # 30530-0112 Pump:
( Click Here for the Jabsco Pump 30530-0112 Product Page )
Item 1
(on image above)
Bearing Housing
$ 646.23 / each
Item 2
(on image above)
Body
$ 1050.44 / each
Item 3
(on image above)
End Cover
$ 271.20 / each
Item 4
(on image above)
Wearplate
$ 289.09 / each
Item 5
(on image above)
Shaft
$ 720.84 / each
Item 6
(on image above)
Impeller, High Pressure - EPDM
$ 415.46 / each
Item 7
(on image above)
Spacer, Tungsten Carbide
$ 470.85 / each
Item 8
(on image above)
Seal Seat, Tungsten Carbide - Vton
$ 693.56 / each
Item 9
(on image above)
Seal
Mechanical Seal, Tungsten Carbide/Viton
$ 681.77 / each
Item 10
(on image above)
Bearing Seal
$ 34.86 / each
Item 11
(on image above)
O-Ring, Viton
$ 40.95 / each
Item 12
(on image above)
Retaining Ring
$ 24.70 / each
Item 13
(on image above)
Bearing
$ 97.48 / each
Item 14
(on image above)
Screw Kit, (Consists Of) Screw. Hex Hd. M8 X 20mm (4) Screw. Hex Hd. M8 X 14mm (4) Washer, Rat M8 (4)
$ 21.63 / each
