Jabsco Pump model 30530-2004 Parts( Click Here for the Jabsco Pump 30530-2004 Product Page ) |
|

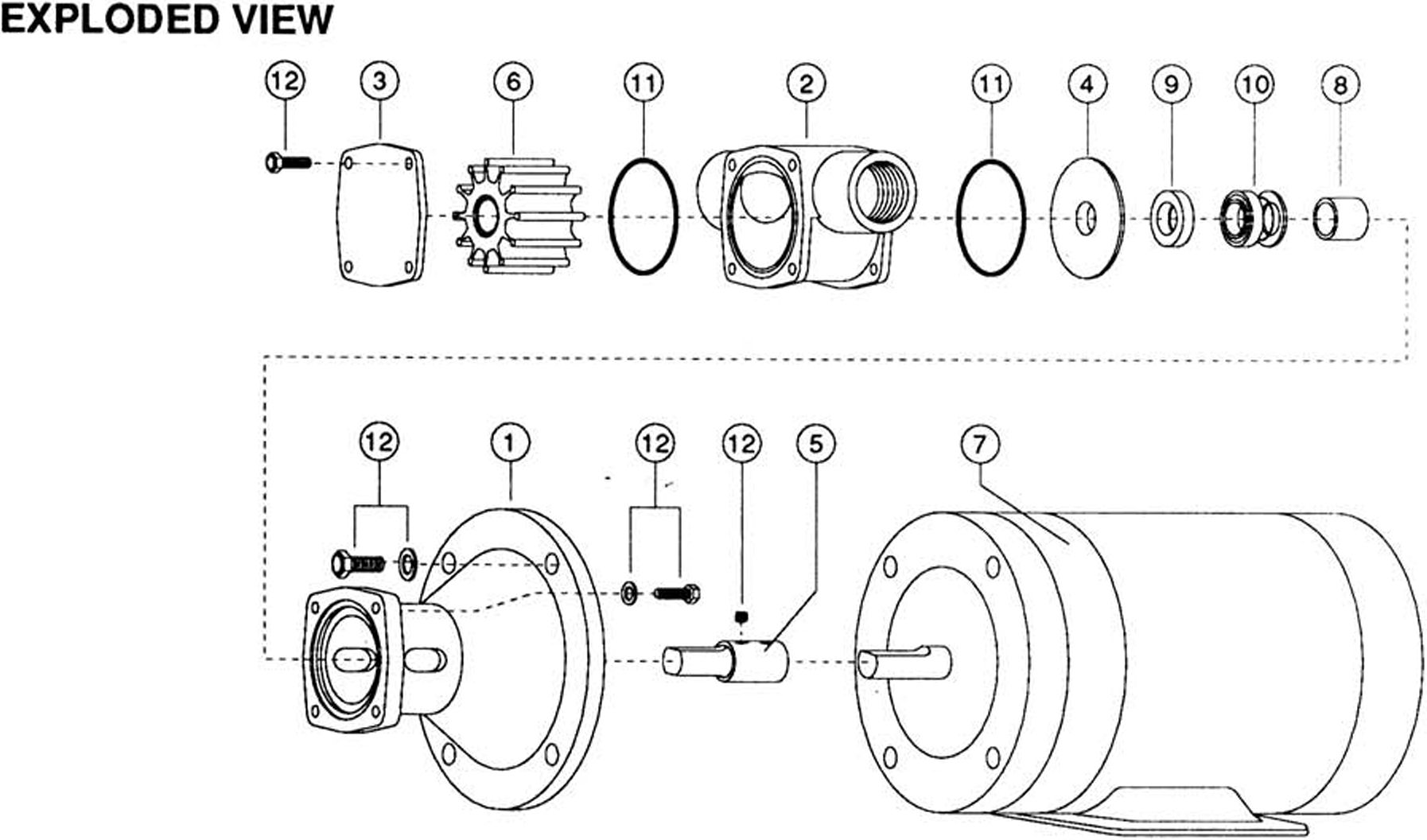

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30530-2004 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0217 | Adapter | $1168.48 | 0 in Stock | 1 | ||
| 2 | # 18753-0191 | Body | $1050.44 | 7 in Stock | 1 | ||
| 3 | # 18753-0197 | End Cover | $271.20 | 8 in Stock | 1 | ||
| 4 | # 18753-0201 | Wearplate | $289.09 | 9 in Stock | 1 | ||
| 5 | # 18753-0213 | Shaft | $1242.34 | 17 in Stock | 1 | ||
| 6 | # 14346-0004B | Impeller, Viton, Standard Pressure | $411.10 | 11 in Stock | 1 | ||
| 8 | # 18753-0228 | Spacer, | $249.82 | 4 in Stock | 1 | ||
| 9 | # 18753-0238 | Seal Seat, Carbon - Viton | $175.76 | 3 in Stock | 1 | ||
| 10 | # 18753-0250 | Mechanical Seal, Viton/Carbon/Ceramic, less Seal Seat | $496.80 | 3 in Stock | 1 | ||
| 11 | # 18753-0266 | O-Ring, Viton | $40.95 | 3 in Stock | 1 | ||
