Jabsco Pump model 30530-2102 Parts
PARTS LIST for Jabsco Pump model # 30530-2102 Pump:

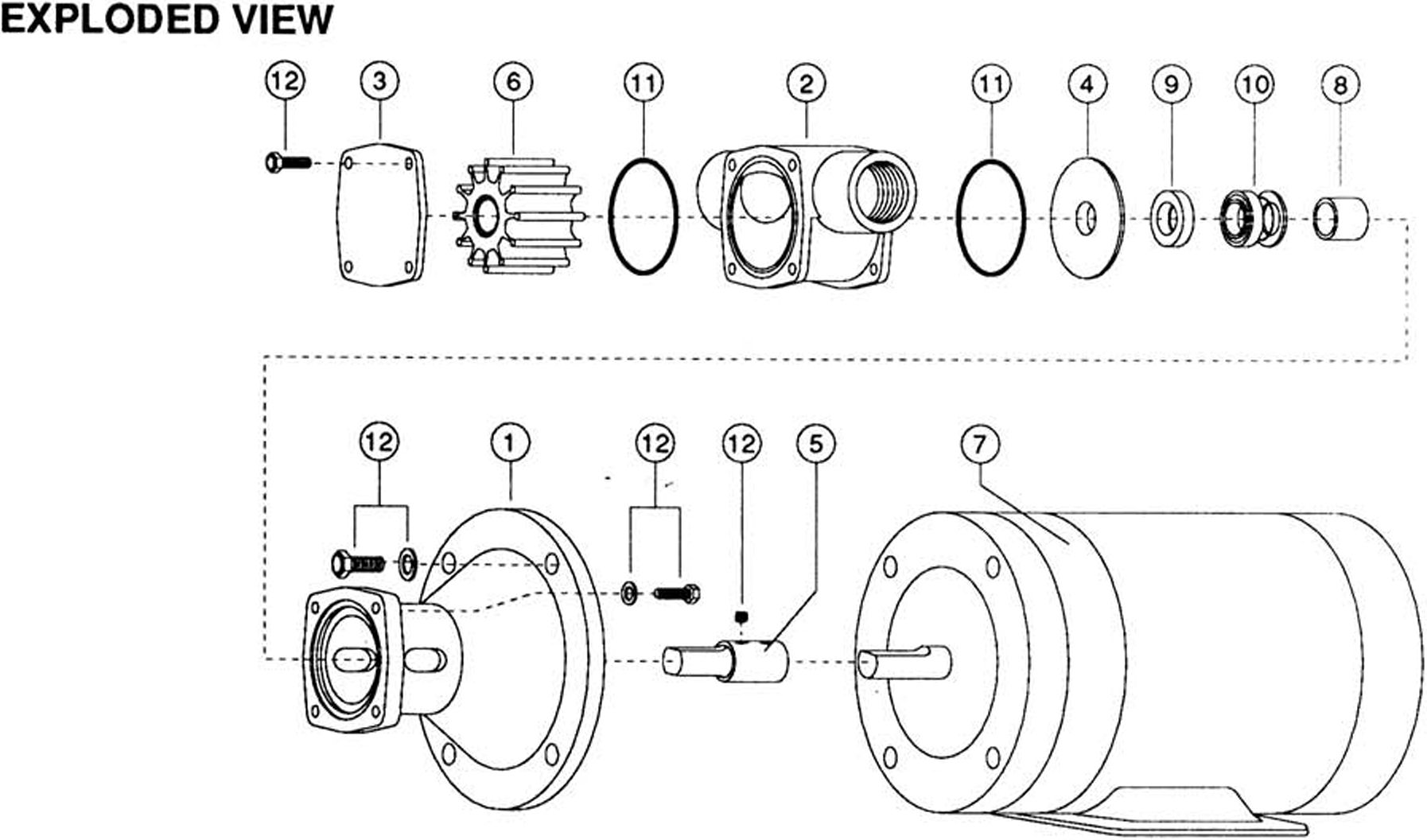

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
( Click Here for the Jabsco Pump 30530-2102 Product Page )
Item 1
(on image above)
Adapter
$ 1188.12 / each
Item 2
(on image above)
Body
$ 1068.09 / each
Item 3
(on image above)
End Cover
$ 275.76 / each
Item 4
(on image above)
Wearplate
$ 293.95 / each
Item 5
(on image above)
Shaft
$ 1263.22 / each
Item 6
(on image above)
Impeller, Epdm, Standard Pressure
$ 220.07 / each
Item 8
(on image above)
Spacer,
$ 254.02 / each
Item 9
(on image above)
Seal Seat, Tungsten Carbide - Viton
$ 705.21 / each
Item 10
(on image above)
Seal
Mechanical Seal, Tungsten Carbide/Viton
$ 693.23 / each
Item 11
(on image above)
O-Ring, Viton
$ 41.64 / each
