Jabsco Pump model 30530-2103 Parts
PARTS LIST for Jabsco Pump model # 30530-2103 Pump:

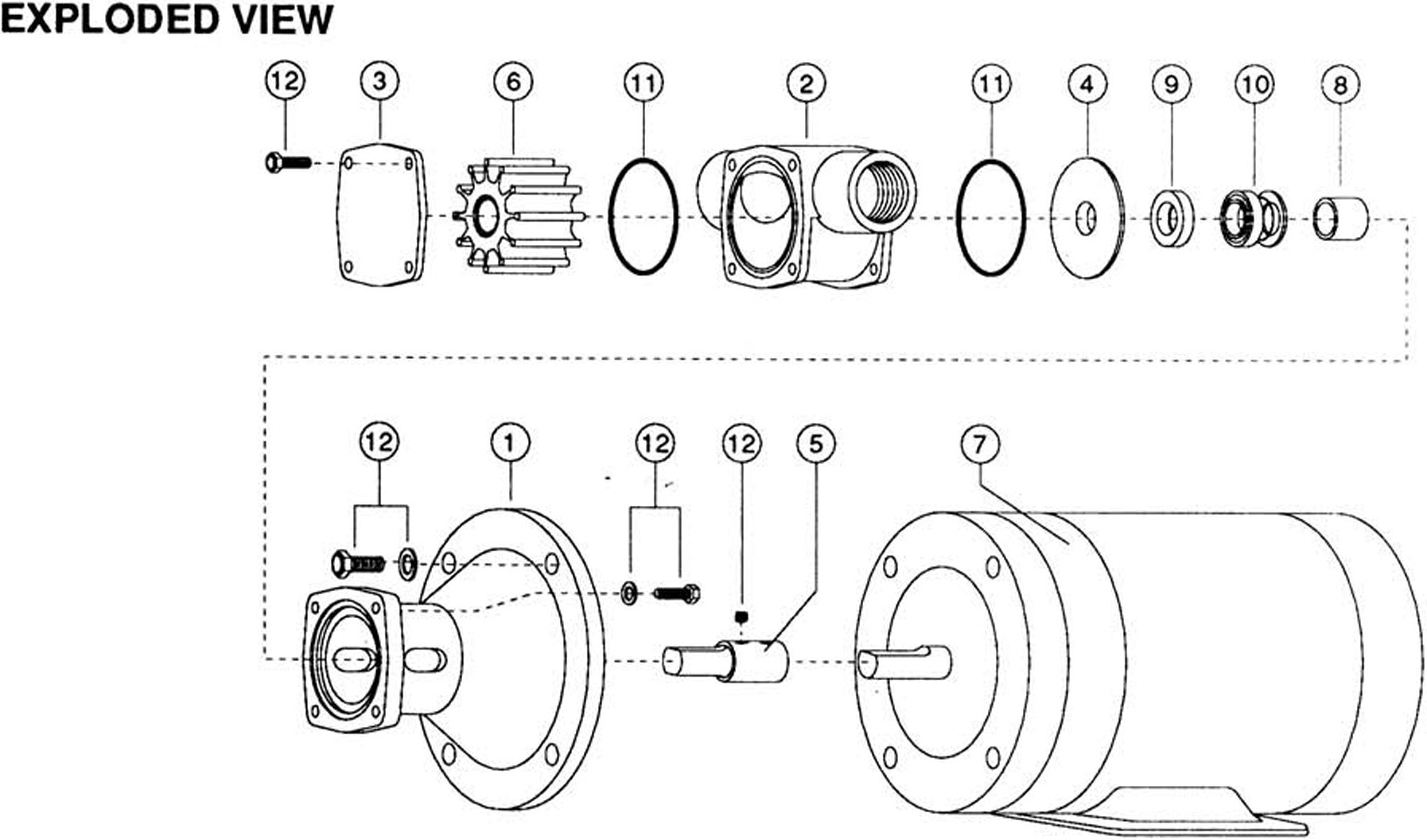

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
( Click Here for the Jabsco Pump 30530-2103 Product Page )
Item 1
(on image above)
Adapter
$ 1080.12 / each
Item 2
(on image above)
Body
$ 1068.09 / each
Item 3
(on image above)
End Cover
$ 248.03 / each
Item 4
(on image above)
Wearplate
$ 267.23 / each
Item 5
(on image above)
Shaft
$ 1263.22 / each
Item 6
(on image above)
Impeller, Nitrile, Standard Pressure
$ 130.51 / each
Item 8
(on image above)
Spacer,
$ 230.93 / each
Item 9
(on image above)
Seal Seat, Tungsten Carbide - Nitrile
$ 532.58 / each
Item 10
(on image above)
Seal
Mechanical Seal, Nitrile/Tungsten Carbide, less Seal Seat
$ 844.60 / each
Item 11
(on image above)
O-Ring, Nitrile
$ 10.62 / each
