Jabsco Pump model 30530-4104 Parts( Click Here for the Jabsco Pump 30530-4104 Product Page ) |
|

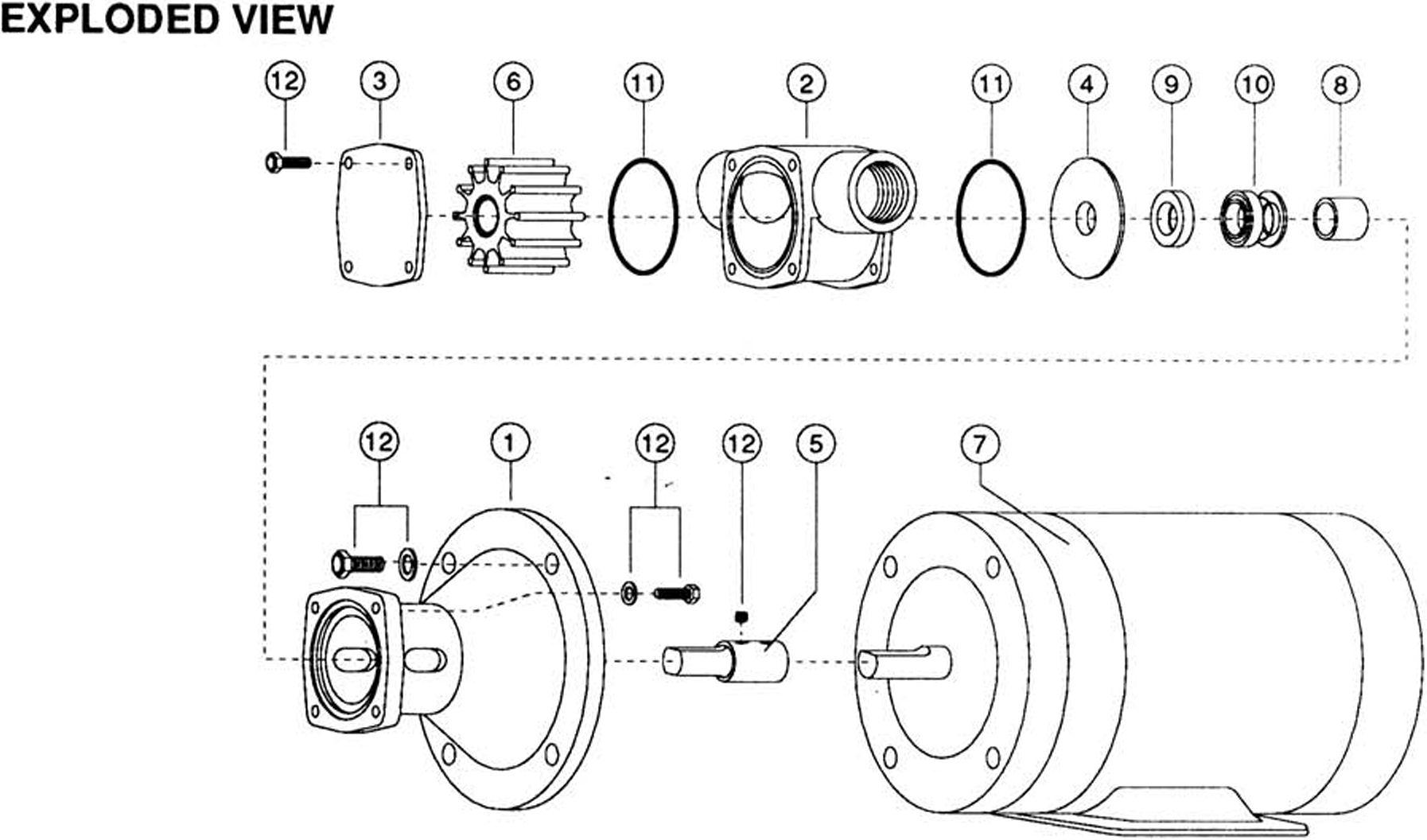

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30530-4104 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0217 | Adapter | $1168.48 | 0 in Stock | 1 | ||
| 2 | # 18753-0191 | Body | $1050.44 | 7 in Stock | 1 | ||
| 3 | # 18753-0197 | End Cover | $271.20 | 8 in Stock | 1 | ||
| 4 | # 18753-0201 | Wearplate | $289.09 | 9 in Stock | 1 | ||
| 5 | # 18753-0213 | Shaft | $1242.34 | 17 in Stock | 1 | ||
| 6 | # 14346-0004B | Impeller, Viton, Standard Pressure | $411.10 | 11 in Stock | 1 | ||
| 7 | # 18753-0220 | Motor, 5 HP, 230/460 Vac, 3Ph,60 Hz, TEFC, C-Face, 184TC Frame | $1033.40 | 2 in Stock | 1 | ||
| 8 | # 18753-0228 | Spacer, | $249.82 | 4 in Stock | 1 | ||
| 9 | # 18753-0240 | Seal Seat, Tungsten Carbide - Viton | $693.56 | 2 in Stock | 1 | ||
| 10 | # 18753-0252 | Mechanical Seal, Tungsten Carbide/Viton | $681.77 | 3 in Stock | 1 | ||
| 11 | # 18753-0266 | O-Ring, Viton | $40.95 | 3 in Stock | 1 | ||
