Jabsco Pump model 30540-0111 Parts |
|

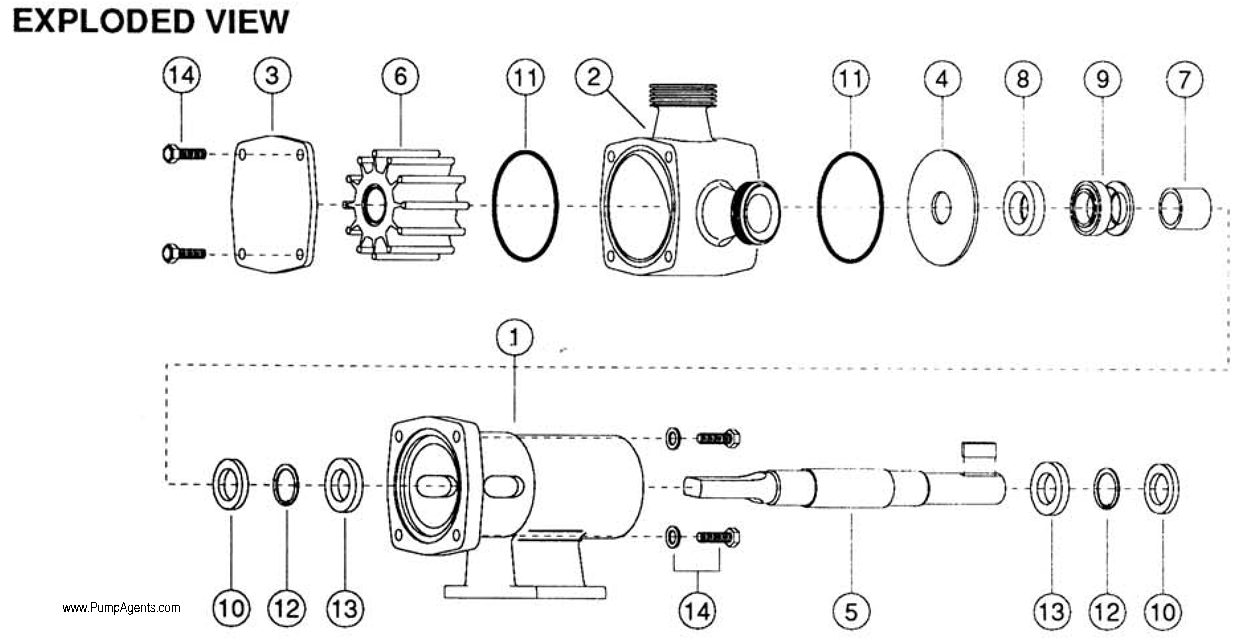

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30540-0111 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0186 | Bearing Housing | $821.55 | 9 in Stock | 1 | ||
| 2 | # 18753-0192 | Body | $2331.77 | 2 in Stock | 1 | ||
| 3 | # 18753-0198 | End Cover | $360.67 | 4 in Stock | 1 | ||
| 4 | # 18753-0202 | Wearplate | $344.23 | 9 in Stock | 1 | ||
| 5 | # 18753-0208 | Shaft | $1705.06 | 9 in Stock | 1 | ||
| 6 | # 8600-0005B | Impeller, High Pressure - Neoprene | $390.76 | 23 in Stock | 1 | ||
| 7 | # 18753-0230 | Spacer, | $324.54 | 9 in Stock | 1 | ||
| 9 | # 18753-0255 | Mechanical Seal, Nitrile/Tungsten Carbide | $1150.85 | 2 in Stock | 1 | ||
| 10 | # 18753-0260 | Bearing Seal | $39.22 | 23 in Stock | 2 | ||
| 11 | # 18753-0267 | O-Ring, Nitrile | $15.97 | 120 in Stock | 2 | ||
| 12 | # 18753-0272 | Retaining Ring | $26.16 | 25 in Stock | 2 | ||
| 13 | # 18753-0276 | Bearing | $168.06 | 10 in Stock | 2 | ||
