Jabsco Pump model 30540-0112 Parts

PARTS LIST for Jabsco Pump model # 30540-0112 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 30540-0112 Product Page )

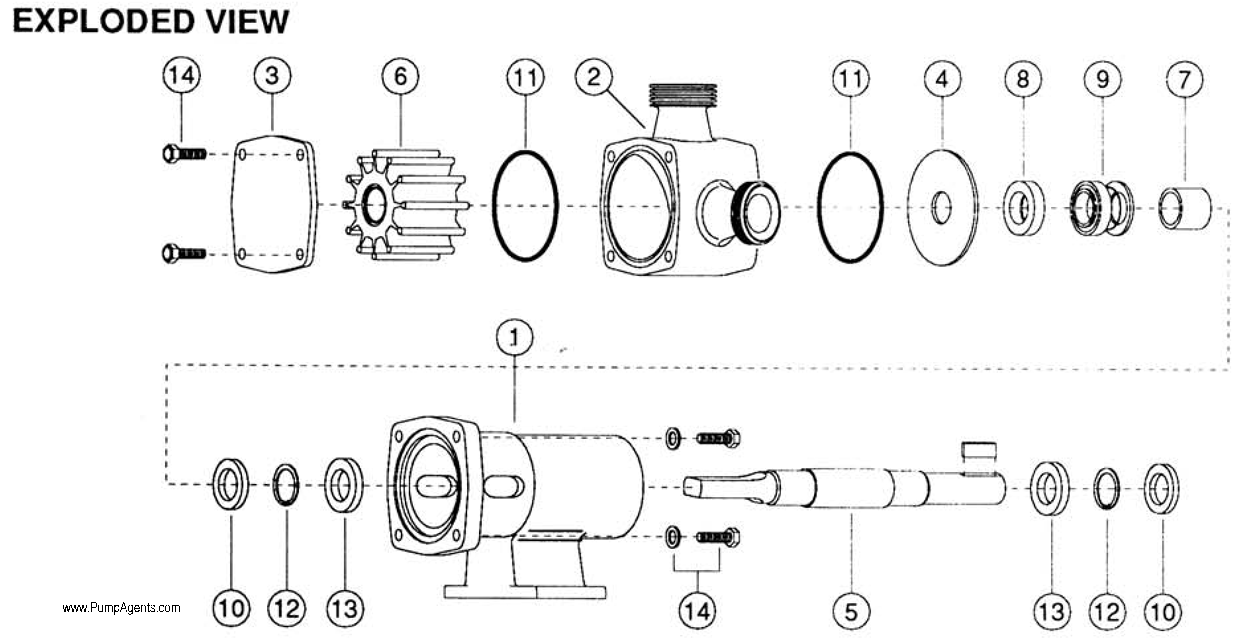

Blowup of 30540-0112

Item 1
(on image above)

Part # 18753-0186

Bearing Housing

$ 835.36 / each

Item 2
(on image above)

Part # 18753-0192

Body

$ 2370.96 / each

Item 3
(on image above)

Part # 18753-0198

End Cover

$ 366.73 / each

Item 4
(on image above)

Part # 18753-0202

Wearplate

$ 350.02 / each

Item 5
(on image above)

Part # 18753-0208

Shaft

$ 1733.71 / each

Item 6
(on image above)

Part # 8600-0002B

Impeller, High Pressure - EPDM

$ 425.40 / each

Item 7
(on image above)

Part # 18753-0230

Spacer,

$ 329.99 / each

Item 8
(on image above)

Part # 18753-0240

Seal Seat, Tungsten Carbide - Viton

$ 705.21 / each

Item 9
(on image above)

Part # 18753-0256

Seal

Mechanical Seal, Viton/Tungsten Carbide

$ 1334.56 / each

Item 10
(on image above)

Part # 18753-0260

Bearing Seal

$ 39.88 / each

Item 11
(on image above)

Part # 18753-0268

O-Ring, Viton

$ 80.91 / each

Item 12
(on image above)

Part # 18753-0272

Retaining Ring

$ 26.60 / each

Item 13
(on image above)

Part # 18753-0276

Bearing

$ 170.89 / each
