Jabsco Pump model 30550-1105 Parts

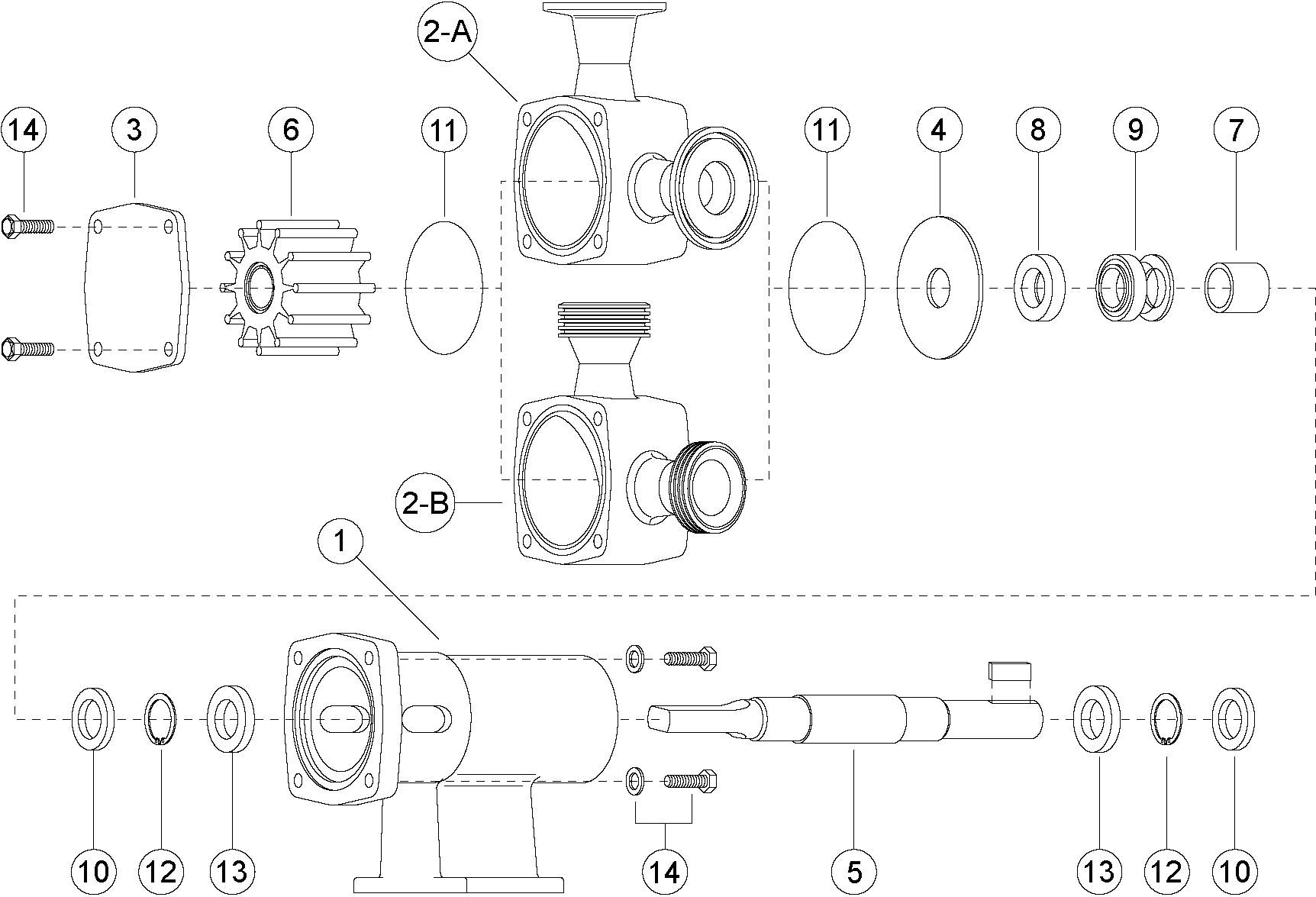

PARTS LIST for Jabsco Pump model # 30550-1105 Pump:
( Click Here for the Jabsco Pump 30550-1105 Product Page )
Item 1
(on image above)
Bearing Housing
$ 456.04 / each
Item 2A
(on image above)
Body, Clamp Ports
$ 1297.14 / each
Item 3
(on image above)
End Cover
$ 99.73 / each
Item 4
(on image above)
Wearplate
$ 228.34 / each
Item 5
(on image above)
Shaft
$ 388.95 / each
Item 6
(on image above)
Impeller, Standard Pressure - Neoprene
$ 118.17 / each
Item 7
(on image above)
Spacer
$ 205.66 / each
Item 8
(on image above)
Seal Seat, Ceramic - Nitrile
$ 42.97 / each
Item 9
(on image above)
Seal
Mechanical Seal, Nitrile/Tungsten Carbide
$ 464.62 / each
Item 10
(on image above)
Bearing Seal
$ 25.51 / each
Item 11
(on image above)
O-Ring, Nitrile
$ 9.41 / each
Item 12
(on image above)
Retaining Ring
$ 12.09 / each
Item 13
(on image above)
Bearing
$ 40.29 / each
Item 14
(on image above)
Screw Kit, Consists of Screw, Hex Hd. M5 x 16mm (4) Screw, Pan Hd. M5 x 16mm (4) Washer, Flat M5 (4)
$ 22.83 / each
