Jabsco Pump model 30550-5102 Parts

PARTS LIST for Jabsco Pump model # 30550-5102 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 30550-5102 Product Page )

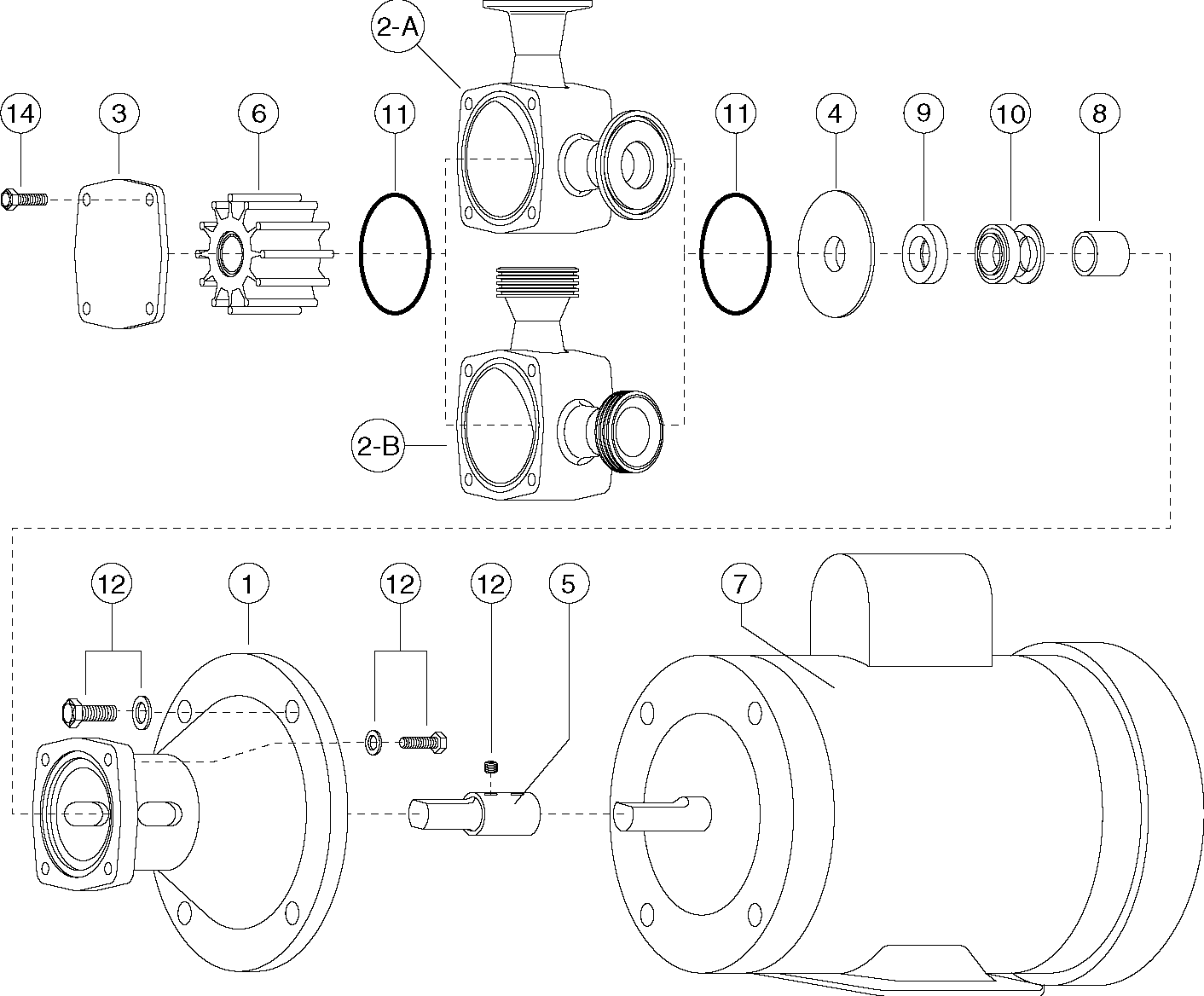

Blowup of 30550-5102

Item 1
(on image above)

Part # 18753-0215

Adapter

$ 1091.11 / each

Item 2A
(on image above)

Part # 18753-0353

Body, Clamp Ports

$ 1297.14 / each

Item 3
(on image above)

Part # 18753-0355

End Cover

$ 99.73 / each

Item 4
(on image above)

Part # 18753-0199

Wearplate

$ 228.34 / each

Item 5
(on image above)

Part # 18753-0209

Shaft

$ 506.70 / each

Item 6
(on image above)

Part # 7614-0002B

Impeller, Standard Pressure - Epdm

$ 122.19 / each

Item 7
(on image above)

Part # 18753-0219

Motor, 3/4 HP, 115 Vac, 1 Ph, 60 Hz, TEFC, 56c Frame

$ 576.86 / each

Item 8
(on image above)

Part # 18753-0223

Spacer

$ 221.61 / each

Item 9
(on image above)

Part # 18753-0233

Seal Seat, Ceramic - Nitrile

$ 42.97 / each

Item 10
(on image above)

Part # 18753-0243

Seal

Mechanical Seal, Nitrile/Tungsten Carbide

$ 464.62 / each

Item 11
(on image above)

Part # 18753-0261

O-Ring, Nitrile

$ 9.41 / each

Item 12
(on image above)

Part # 18753-0278

Screw Kit

$ 98.02 / each
