Jabsco Pump # 30560-0015 Parts Order page( Click Here for the Jabsco Pump # 30560-0015 Product Page ) |
|

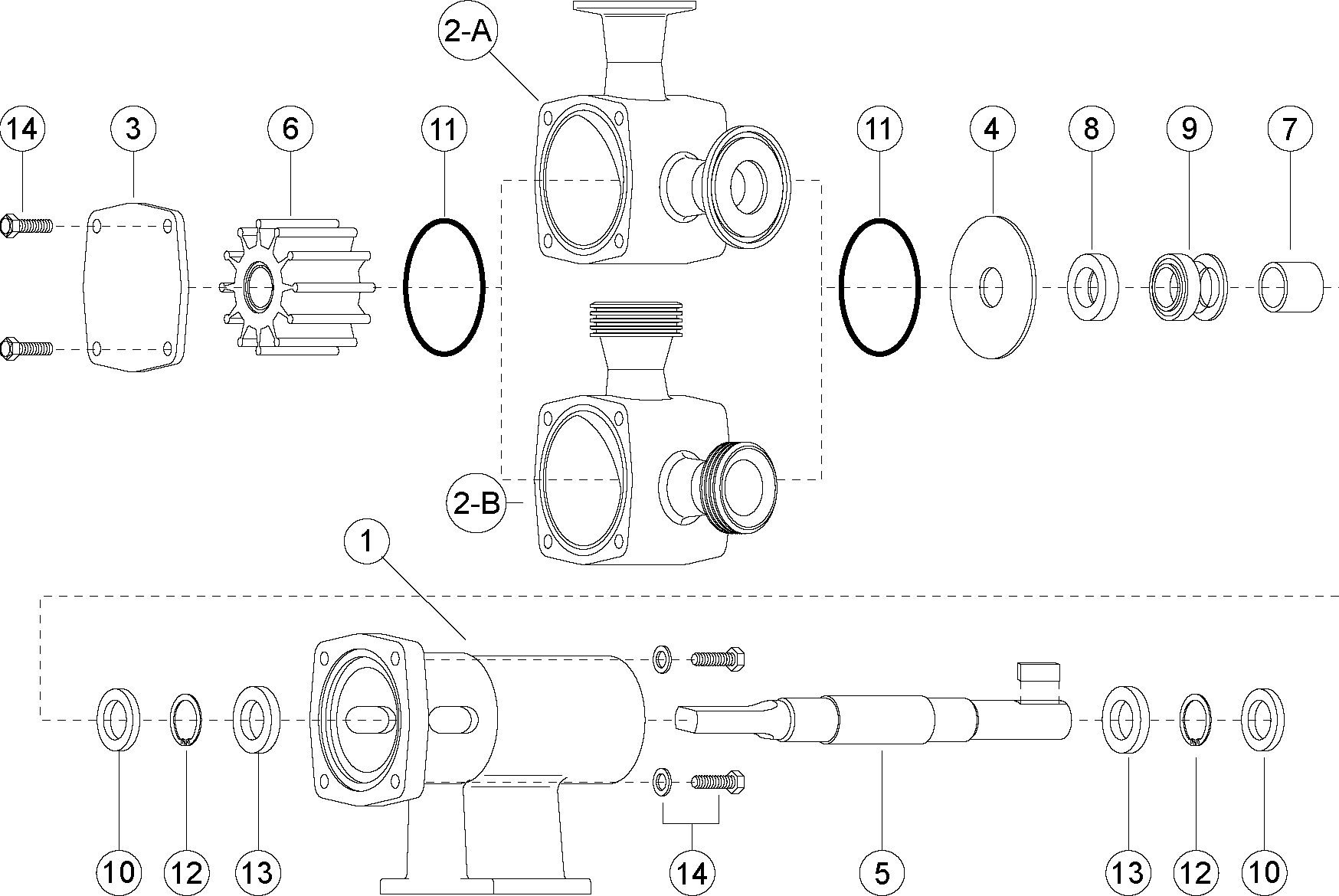

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30560-0015 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0184 | Bearing Housing | $449.99 | 40 in Stock | 1 | ||
| 2 | # 18753-0360 | Body: 2-B. ACME Ports | $1488.34 | 0 in Stock | 1 | ||
| 3 | # 18753-0361 | End Cover | $134.77 | 23 in Stock | 1 | ||
| 4 | # 18753-0200 | Wearplate | $248.60 | 103 in Stock | 1 | ||
| 5 | # 18753-0205 | Shaft | $484.29 | 3 in Stock | 1 | ||
| 6 | # 8840-0005B | Impeller : Neoprene, High Pressure | $191.76 | 6 in Stock | 1 | ||
| 7 | # 18753-0225 | Spacer | $287.28 | 4 in Stock | 1 | ||
| 8 | # 18753-0235 | Seal Seat : Ceramic - Nitrile | $51.13 | 56 in Stock | 1 | ||
| 9 | # 18753-0245 | Mechanical Seal, Nitrile/Carbon/Ceramic | $119.12 | 66 in Stock | 1 | ||
| 10 | # 18753-0258 | Bearing Seal | $30.51 | 43 in Stock | 2 | ||
| 11 | # 18753-0263 | O-Ring: Nitrile | $10.17 | 106 in Stock | 2 | ||
| 12 | # 18753-0270 | Retaining Ring | $13.72 | 28 in Stock | 2 | ||
| 13 | # 18753-0274 | Bearing | $47.53 | 11 in Stock | 2 | ||
| 14 | # 18753-0281 | Screw Kit: Consists of | $25.70 | 12 in Stock | 1 | ||
