Jabsco Pump model 30560-1116 Parts

PARTS LIST for Jabsco Pump model # 30560-1116 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 30560-1116 Product Page )

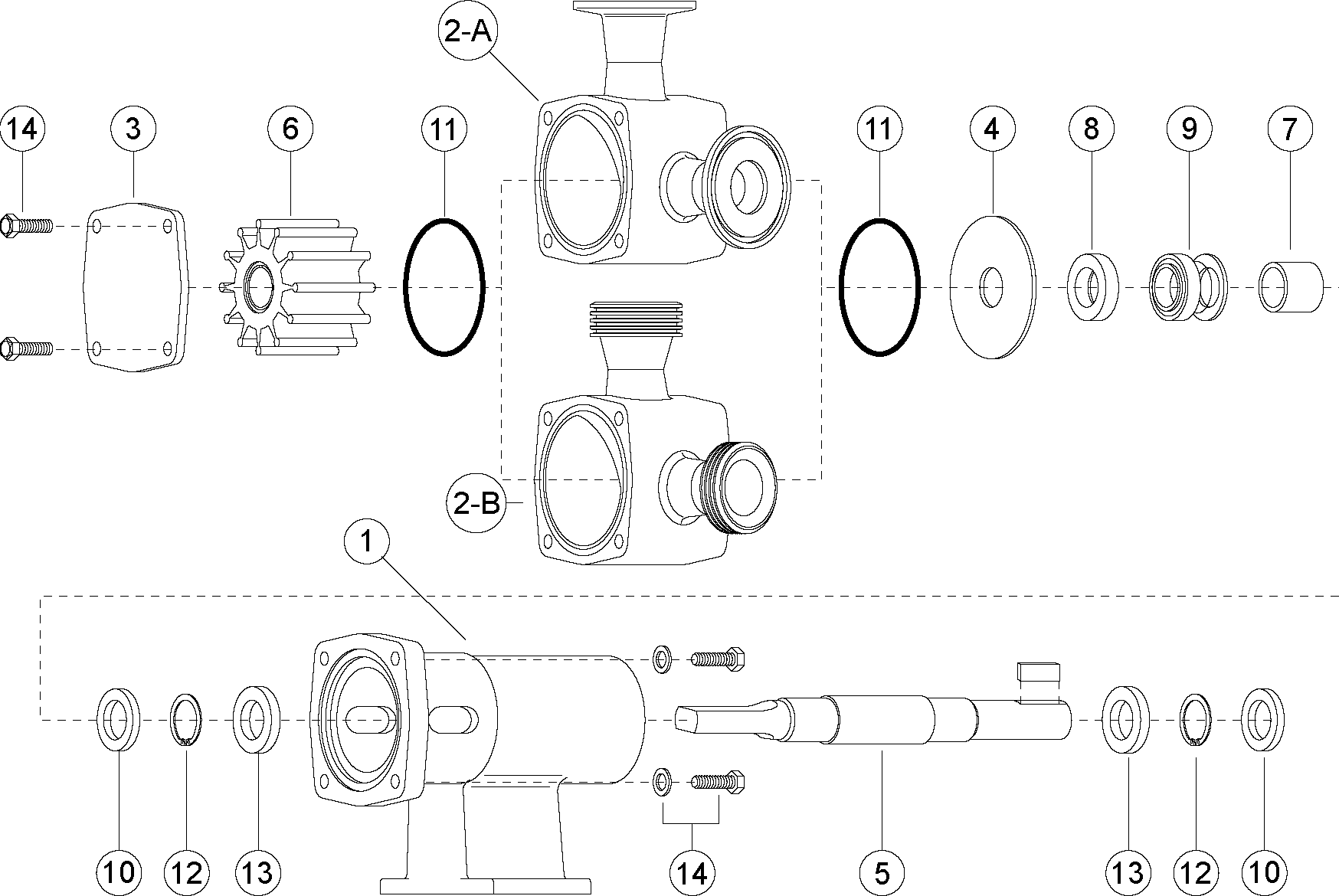

Blowup of 30560-1116

Item 1
(on image above)

Part # 18753-0184

Bearing Housing

$ 457.55 / each

Item 2
(on image above)

Part # 18753-0359

Body: 2-A. Clamp Ports

$ 1362.00 / each

Item 2
(on image above)

Part # 18753-0360

Body: 2-B. ACME Ports

$ 1513.36 / each

Item 3
(on image above)

Part # 18753-0361

End Cover

$ 137.03 / each

Item 4
(on image above)

Part # 18753-0200

Wearplate

$ 252.78 / each

Item 5
(on image above)

Part # 18753-0205

Shaft

$ 492.43 / each

Item 6
(on image above)

Part # 8840-0006B

Impeller : BUNA Nitrile, High Pressure

$ 180.19 / each

Item 7
(on image above)

Part # 18753-0225

Spacer

$ 292.11 / each

Item 8
(on image above)

Part # 18753-0235

Seal Seat : Ceramic - Nitrile

$ 47.26 / each

Item 9
(on image above)

Part # 18753-0247

Seal

Mechanical Seal, Tungsten Carbide - Nitrile

$ 565.71 / each

Item 10
(on image above)

Part # 18753-0258

Bearing Seal

$ 31.02 / each

Item 11
(on image above)

Part # 18753-0263

O-Ring: Nitrile

$ 10.35 / each

Item 12
(on image above)

Part # 18753-0270

Retaining Ring

$ 13.29 / each

Item 13
(on image above)

Part # 18753-0274

Bearing

$ 48.33 / each

Item 14
(on image above)

Part # 18753-0281

Screw Kit: Consists of

$ 24.90 / each
