Jabsco Pump # 30560-2002 Parts Order page( Click Here for the Jabsco Pump # 30560-2002 Product Page ) |
|

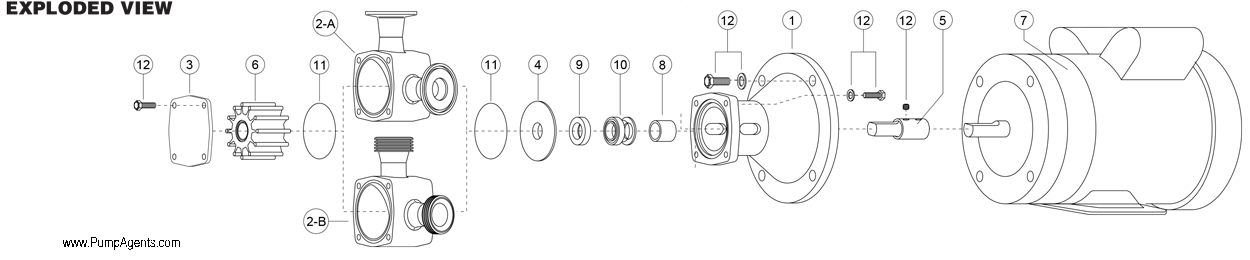

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30560-2002 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0216 | Adapter | $646.48 | 0 in Stock | 1 | ||
| 2-B | # 18753-0360 | Body, ACME Ports | $1488.34 | 0 in Stock | 1 | ||
| 3 | # 18753-0361 | End Cover | $134.77 | 23 in Stock | 1 | ||
| 4 | # 18753-0200 | Wearplate | $248.60 | 103 in Stock | 1 | ||
| 5 | # 18753-0211 | Shaft | $866.03 | 8 in Stock | 1 | ||
| 6 | # 8981-0002B | Impeller, Standard Pressure - EPDM | $148.17 | 29 in Stock | 1 | ||
| 7 | # 18753-0339 | Motor, 1-1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1740 RPM, TEFC, H145tc Frame, C-Face, Overload Protected, with Capacitor Start | $1092.63 | 2 in Stock | 1 | ||
| 8 | # 18753-0227 | Spacer | $179.20 | 6 in Stock | 1 | ||
| 9 | # 18753-0235 | Seal Seat, Ceramic - Nitrile | $51.13 | 56 in Stock | 1 | ||
| 10 | # 18753-0245 | Mechanical Seal, Nitrile/Carbon/Ceramic | $119.12 | 66 in Stock | 1 | ||
| 11 | # 18753-0263 | O-Ring, Nitrile | $10.17 | 106 in Stock | 2 | ||
