Jabsco Pump model 30560-3102 Parts

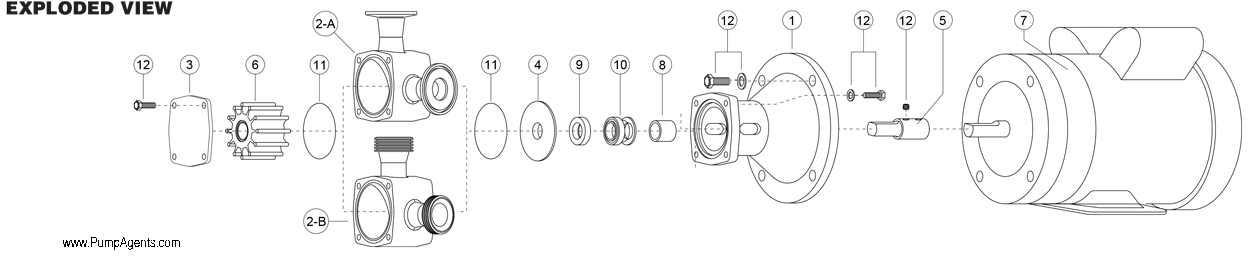

PARTS LIST for Jabsco Pump model # 30560-3102 Pump:
( Click Here for the Jabsco Pump 30560-3102 Product Page )
Item 1
(on image above)
Adapter
$ 657.34 / each
Item 2A
(on image above)
Body, Clamp Ports
$ 1362.00 / each
Item 3
(on image above)
End Cover
$ 124.57 / each
Item 4
(on image above)
Wearplate
$ 229.80 / each
Item 5
(on image above)
Shaft
$ 800.54 / each
Item 6
(on image above)
Impeller, Standard Pressure - EPDM
$ 136.96 / each
Item 7
(on image above)
Motor, 1-1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1740 RPM, TEFC, H145tc Frame, C-Face, Overload Protected, with Capacitor Start
$ 1052.39 / each
Item 8
(on image above)
Spacer
$ 165.65 / each
Item 9
(on image above)
Seal Seat, Ceramic - Nitrile
$ 42.97 / each
Item 10
(on image above)
Seal
Mechanical Seal, Tungsten Carbide - Nitrile
$ 1090.33 / each
Item 11
(on image above)
O-Ring, Nitrile
$ 9.41 / each
