Jabsco Pump model 30570-0002 Parts( Click Here for the Jabsco Pump 30570-0002 Product Page ) |
|

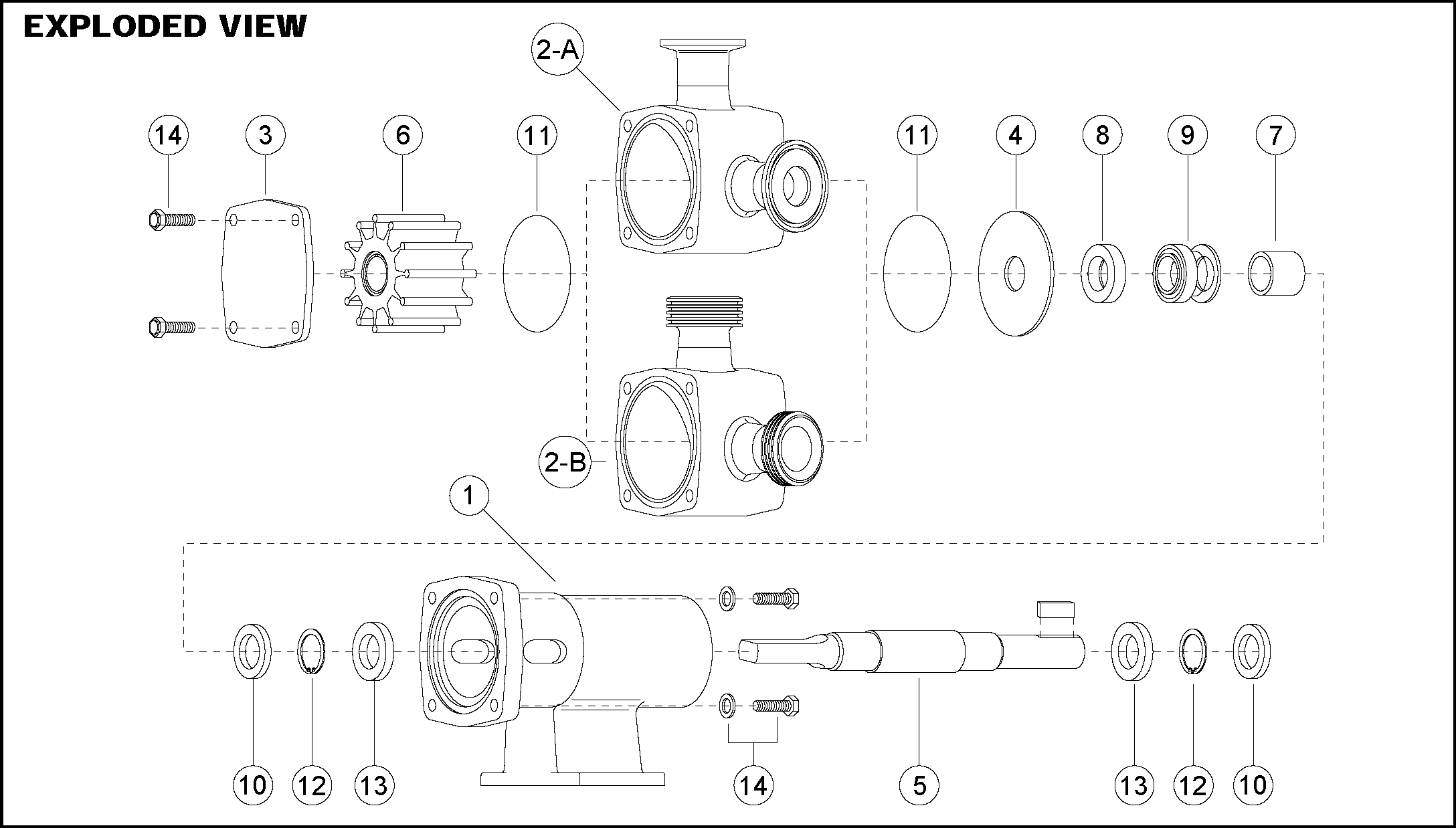

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30570-0002 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| # 18753-0185 | Bearing Housing | $646.23 | 2 in Stock | 1 | |||
| 2-B | # 18753-0366 | Body, ACME Ports | $1943.03 | 3 in Stock | 1 | ||
| 3 | # 18753-0367 | End Cover | $277.13 | 3 in Stock | 1 | ||
| 4 | # 18753-0201 | Wearplate | $289.09 | 9 in Stock | 1 | ||
| 5 | # 18753-0207 | Shaft | $720.84 | 1 in Stock | 1 | ||
| 6 | # 14346-0002B | Impeller, Standard Pressure - EPDM | $216.44 | 12 in Stock | 1 | ||
| 7 | # 18753-0228 | Spacer | $249.82 | 4 in Stock | 1 | ||
| 8 | # 18753-0237 | Seal Seat, Ceramic - Nitrile | $92.97 | 48 in Stock | 1 | ||
| 9 | # 18753-0249 | Mechanical Seal, Nitrile/Carbon/Ceramic, less Seal Seat | $175.76 | 26 in Stock | 1 | ||
| 10 | # 18753-0259 | Bearing Seal | $34.86 | 4 in Stock | 2 | ||
| 11 | # 18753-0265 | O-Ring, Nitrile | $12.11 | 55 in Stock | 2 | ||
| 12 | # 18753-0271 | Retaining Ring | $24.70 | 5 in Stock | 2 | ||
| 13 | # 18753-0275 | Bearing | $97.48 | 3 in Stock | 2 | ||
| 14 | # 18753-0285 | Screw Kit, Consists of Screw Hex Hd. M8 x 20mm (4), Screw Pan Hd. M8 x 14mm (4), Washer Flat M8 (4) | $21.63 | 9 in Stock | 1 | ||
