Jabsco Pump model 30570-1015 Parts

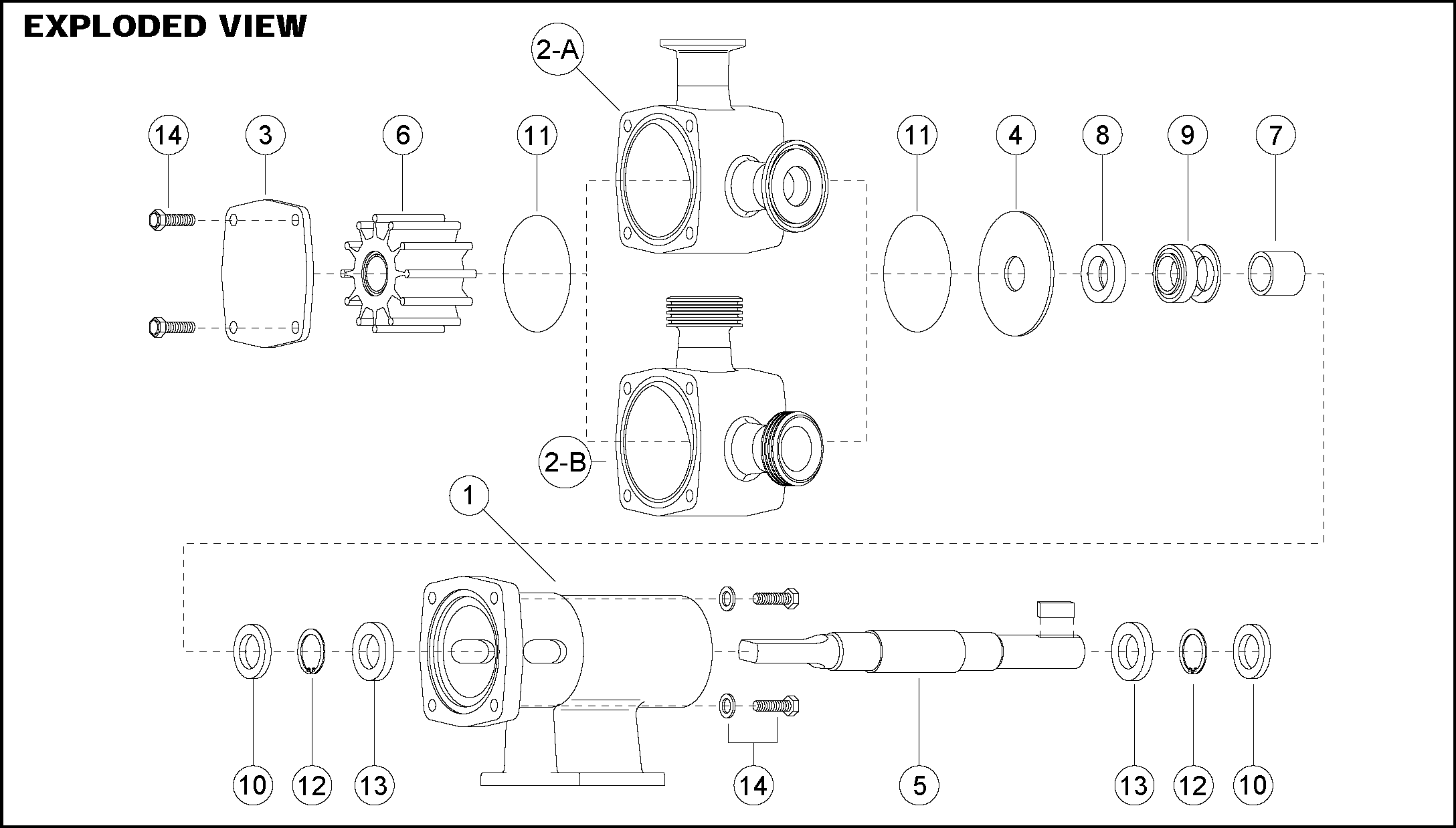

PARTS LIST for Jabsco Pump model # 30570-1015 Pump:
( Click Here for the Jabsco Pump 30570-1015 Product Page )
Not Shown
(Not Shown on image above)
Bearing Housing
$ 657.09 / each
Item 2A
(on image above)
Body, Clamp Ports
$ 1831.99 / each
Item 3
(on image above)
End Cover
$ 256.16 / each
Item 4
(on image above)
Wearplate
$ 267.23 / each
Item 5
(on image above)
Shaft
$ 666.32 / each
Item 6
(on image above)
Impeller, High Pressure - Neoprene
$ 355.85 / each
Item 7
(on image above)
Spacer
$ 230.93 / each
Item 8
(on image above)
Seal Seat, Ceramic - Nitrile
$ 85.93 / each
Item 9
(on image above)
Seal
Mechanical Seal, Nitrile/Carbon/Ceramic, less Seal Seat
$ 162.48 / each
Item 10
(on image above)
Bearing Seal
$ 32.22 / each
Item 11
(on image above)
O-Ring, Nitrile
$ 10.62 / each
Item 12
(on image above)
Retaining Ring
$ 22.83 / each
Item 13
(on image above)
Bearing
$ 99.12 / each
Item 14
(on image above)
Screw Kit, Consists of Screw Hex Hd. M8 x 20mm (4), Screw Pan Hd. M8 x 14mm (4), Washer Flat M8 (4)
$ 28.21 / each
