Jabsco Pump model 30570-4002 Parts( Click Here for the Jabsco Pump 30570-4002 Product Page ) |
|

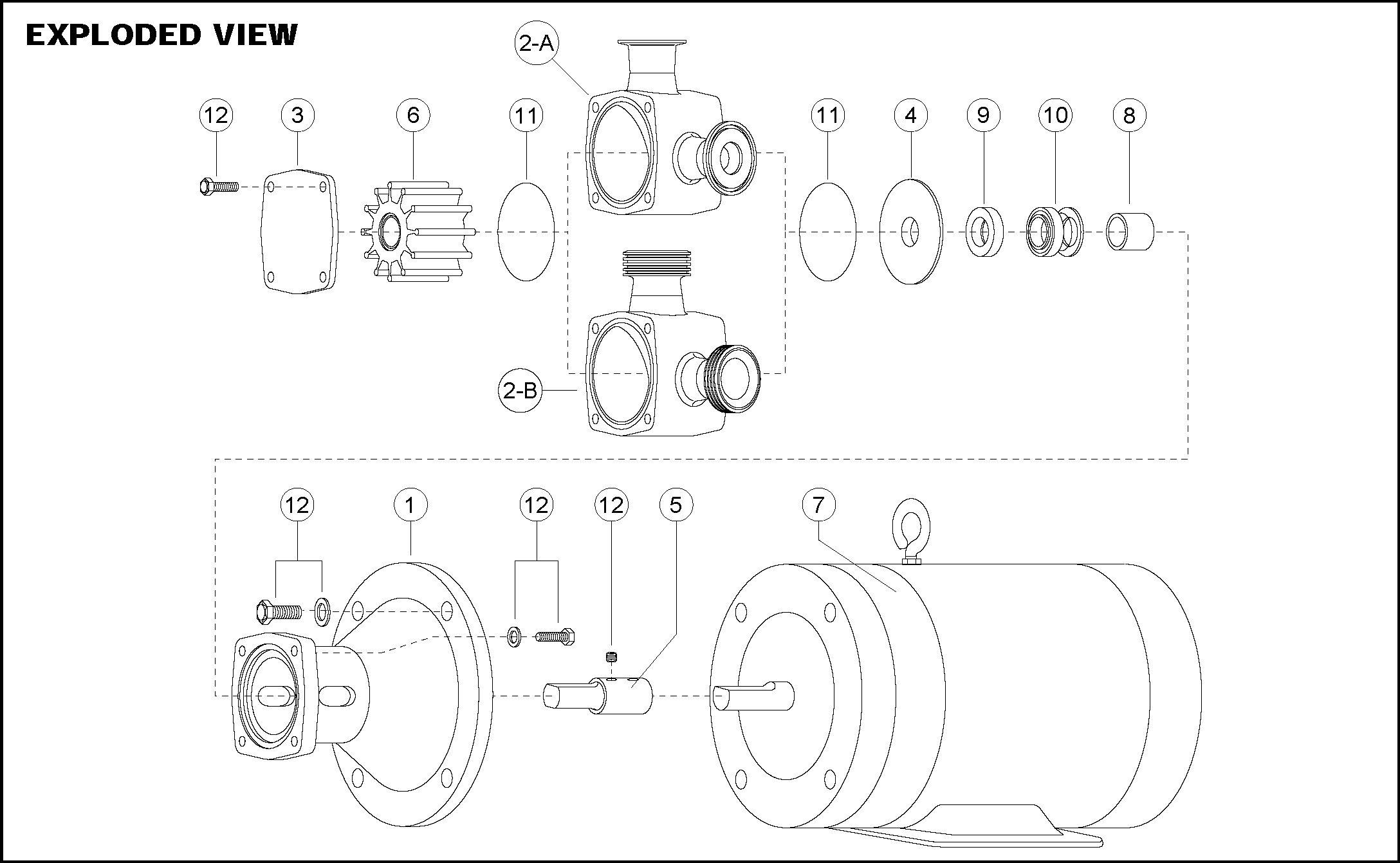

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30570-4002 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0217 | Adapter | $1168.48 | 10 in Stock | 1 | ||
| 2 | # 18753-0366 | Body: 1-1/2 Inch ACME Threads with Bevel Seat | $1943.03 | 3 in Stock | 1 | ||
| 3 | # 18753-0367 | End Cover | $277.13 | 5 in Stock | 1 | ||
| 4 | # 18753-0201 | Wearplate | $289.09 | 15 in Stock | 1 | ||
| 5 | # 18753-0213 | Shaft | $1242.34 | 17 in Stock | 1 | ||
| 6 | # 14346-0002B | Impeller: Standard Pressure - EPDM | $216.44 | 12 in Stock | 1 | ||
| 7 | # 18753-0220 | Motor, 5 HP, 230/460 Vac, 3Ph,60 Hz, TEFC, C-Face, 184TC Frame | $1033.40 | 2 in Stock | 1 | ||
| 8 | # 18753-0228 | Spacer | $249.82 | 6 in Stock | 1 | ||
| 9 | # 18753-0237 | Seal Seat: Ceramic - Nitrile | $92.97 | 44 in Stock | 1 | ||
| 10 | # 18753-0249 | Carbon - Nitrile | $175.76 | 21 in Stock | 1 | ||
| 11 | # 18753-0265 | O-Ring: Nitrile | $12.11 | 55 in Stock | 2 | ||
