Jabsco Pump model 30570-4102 Parts
PARTS LIST for Jabsco Pump model # 30570-4102 Pump:
( Click Here for the Jabsco Pump 30570-4102 Product Page )

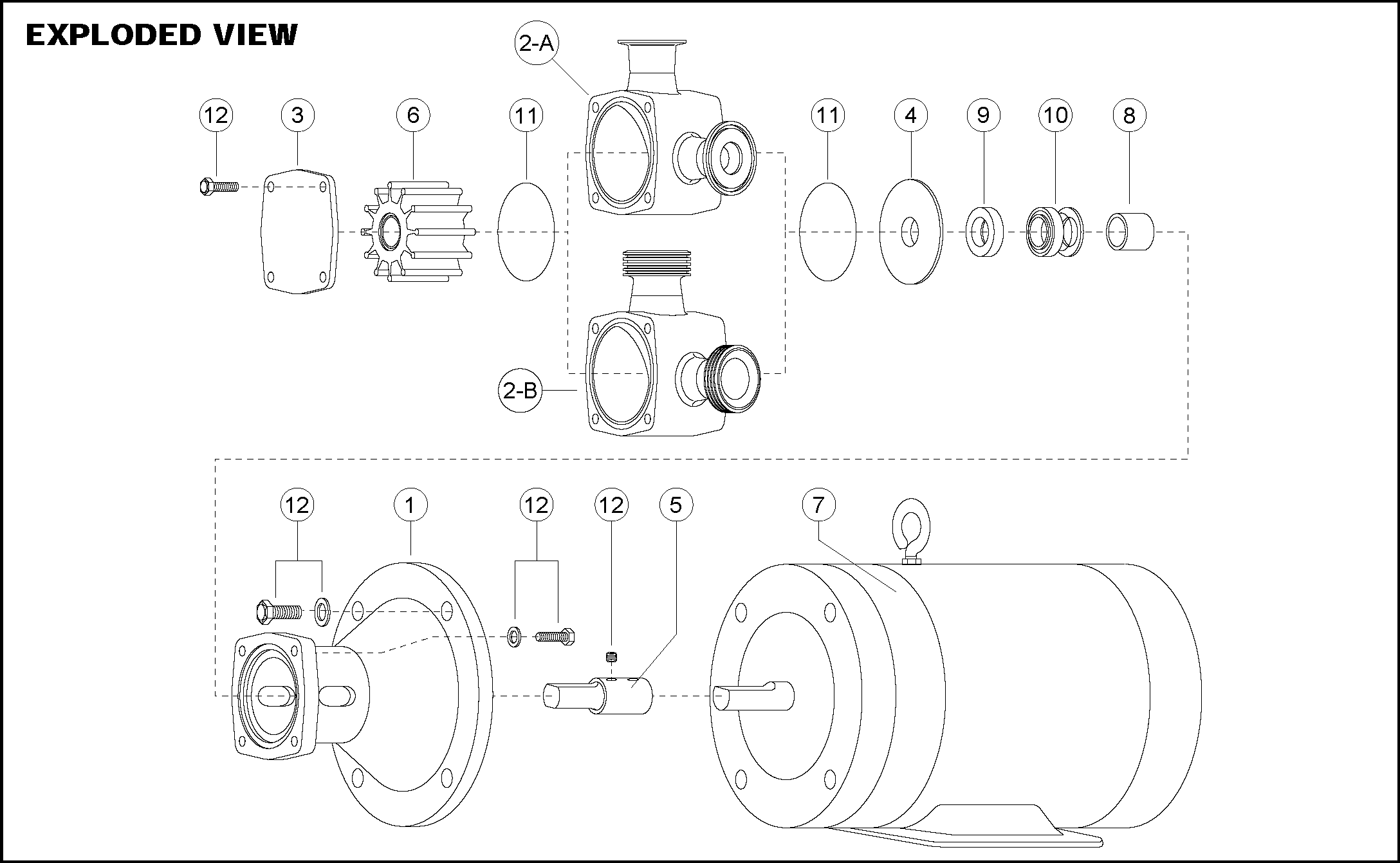

Item 1
(on image above)
Adapter
$ 1080.12 / each
Item 2
(on image above)
Body: 1-1/2 Inch ACME Threads with Bevel Seat
$ 1975.69 / each
Item 3
(on image above)
End Cover
$ 256.16 / each
Item 4
(on image above)
Wearplate
$ 267.23 / each
Item 5
(on image above)
Shaft
$ 1263.22 / each
Item 6
(on image above)
Impeller: Standard Pressure - EPDM
$ 200.06 / each
Item 7
(on image above)
Motor, 5 HP, 230/460 Vac, 3Ph,60 Hz, TEFC, C-Face, 184TC Frame
$ 1050.76 / each
Item 8
(on image above)
Spacer
$ 230.93 / each
Item 9
(on image above)
Seal Seat: Ceramic - Nitrile
$ 85.93 / each
Item 10
(on image above)
Tungsten Carbide - Nitrile
$ 844.60 / each
Item 11
(on image above)
O-Ring: Nitrile
$ 10.62 / each
