Jabsco Pump model 30580-0015 Parts

PARTS LIST for Jabsco Pump model # 30580-0015 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 30580-0015 Product Page )

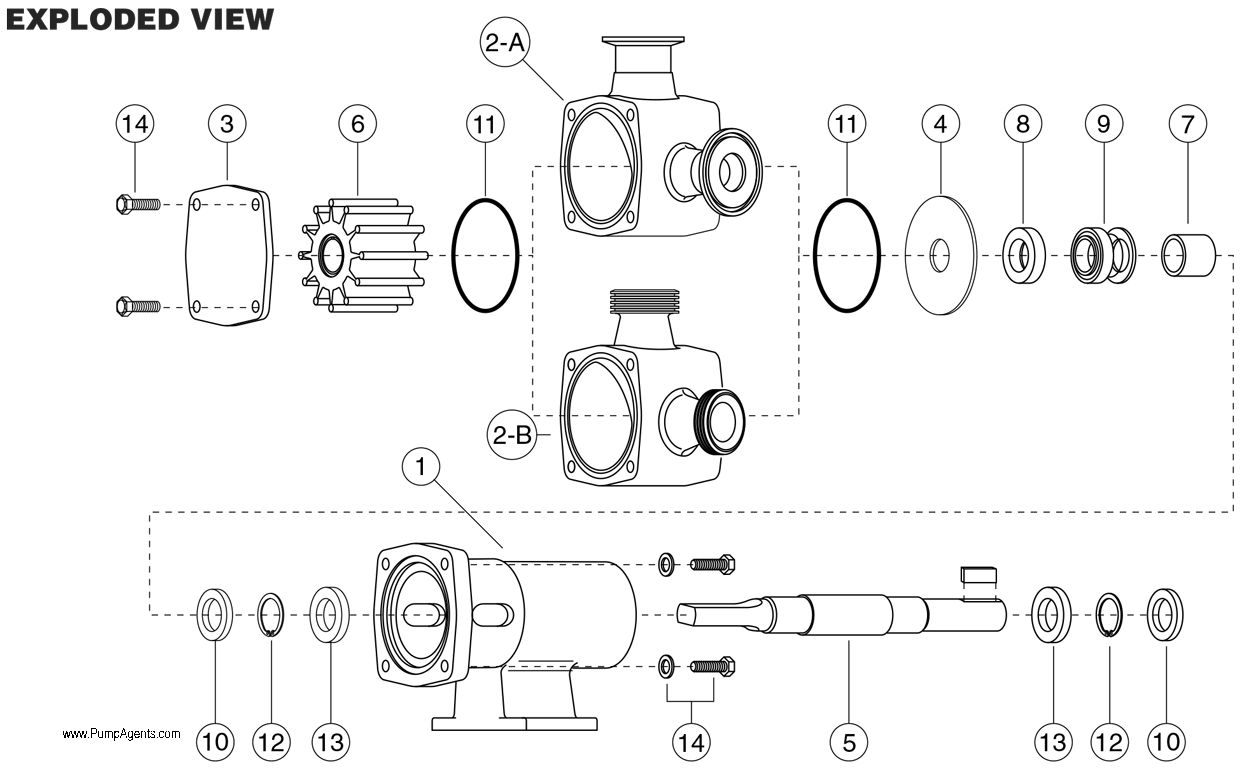

Blowup of 30580-0015

Item 1
(on image above)

Part # 18753-0186

Bearing Housing

$ 835.36 / each

Item 2
(on image above)

Part # 18753-0373

Body, ACME Ports

Contact Us for Pricing

Item 3
(on image above)

Part # 18753-0374

End Cover

$ 537.99 / each

Item 4
(on image above)

Part # 18753-0202

Wearplate

$ 350.02 / each

Item 5
(on image above)

Part # 18753-0208

Shaft

$ 1733.71 / each

Item 6
(on image above)

Part # 8600-0005B

Impeller, High Pressure - Neoprene

$ 397.33 / each

Item 7
(on image above)

Part # 18753-0230

Spacer

$ 329.99 / each

Item 8
(on image above)

Part # 18753-0237

Seal Seat, Ceramic - Nitrile

$ 94.54 / each

Item 9
(on image above)

Part # 18753-0253

Seal

Mechanical Seal, Ceramic - Nitrile

$ 230.42 / each

Item 10
(on image above)

Part # 18753-0260

Bearing Seal

$ 39.88 / each

Item 11
(on image above)

Part # 18753-0267

O-Ring, Nitrile

$ 16.24 / each

Item 12
(on image above)

Part # 18753-0272

Retaining Ring

$ 26.60 / each

Item 13
(on image above)

Part # 18753-0276

Bearing

$ 170.89 / each
