Jabsco Pump model 30580-1102 Parts

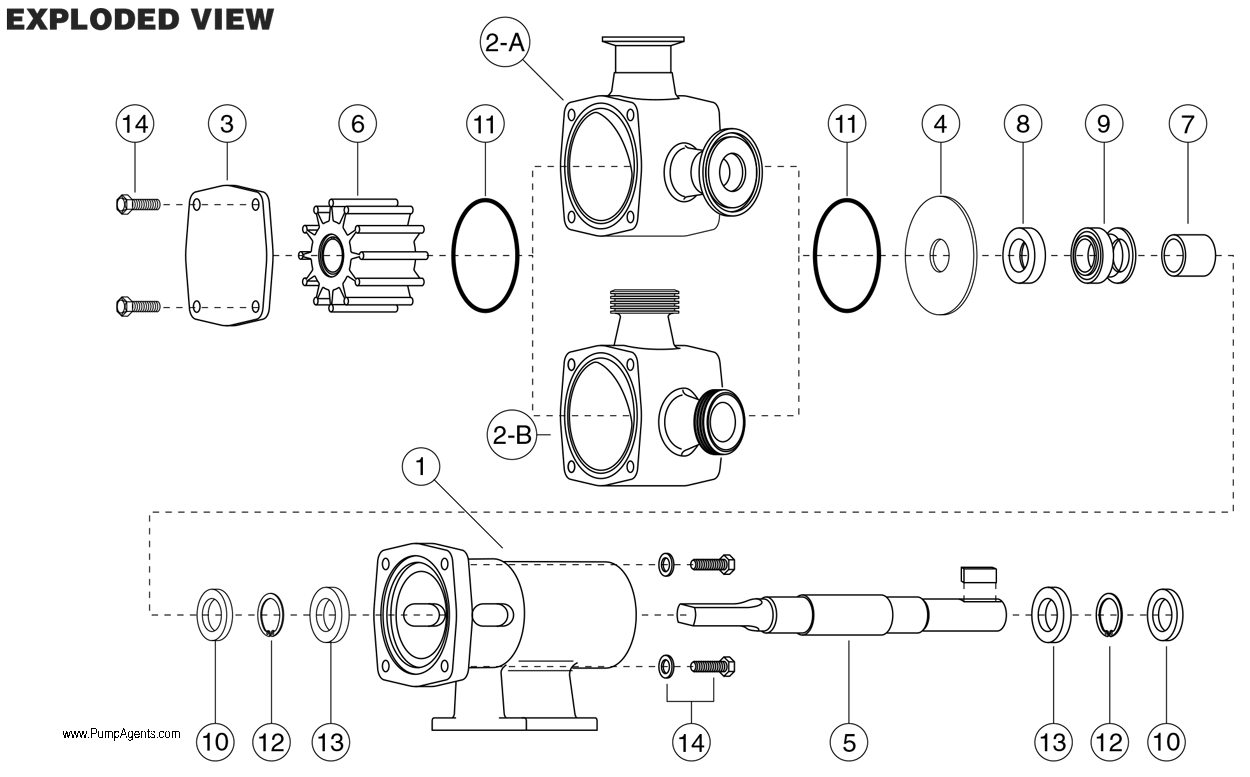

PARTS LIST for Jabsco Pump model # 30580-1102 Pump:
( Click Here for the Jabsco Pump 30580-1102 Product Page )
Item 1
(on image above)
Bearing Housing
$ 759.42 / each
Item 2
(on image above)
Body, Clamp Ports
$ 2534.09 / each
Item 3
(on image above)
End Cover
$ 489.08 / each
Item 4
(on image above)
Wearplate
$ 318.19 / each
Item 5
(on image above)
Shaft
$ 1576.10 / each
Item 6
(on image above)
Impeller
Impeller, Standard Pressure - EPDM
Contact Us for Pricing
Item 7
(on image above)
Spacer
$ 299.98 / each
Item 8
(on image above)
Seal Seat, Tungsten Carbide - Nitrile
$ 532.58 / each
Item 9
(on image above)
Seal
Mechanical Seal, Nitrile/Tungsten Carbide
$ 1063.81 / each
Item 10
(on image above)
Bearing Seal
$ 36.26 / each
Item 11
(on image above)
O-Ring, Nitrile
$ 14.76 / each
Item 12
(on image above)
Retaining Ring
$ 24.18 / each
Item 13
(on image above)
Bearing
$ 119.51 / each
