Jabsco Pump model 30580-1112 Parts

PARTS LIST for Jabsco Pump model # 30580-1112 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 30580-1112 Product Page )

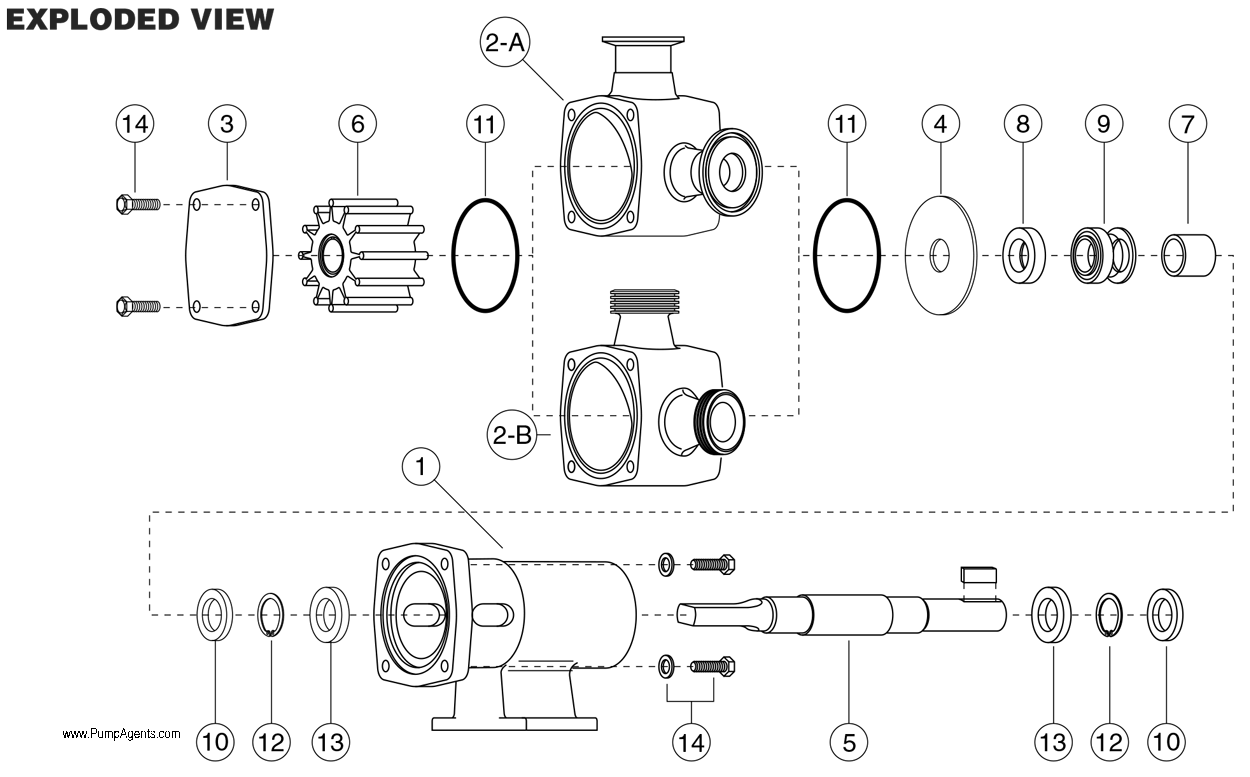

Blowup of 30580-1112

Item 1
(on image above)

Part # 18753-0186

Bearing Housing

$ 759.42 / each

Item 2
(on image above)

Part # 18753-0372

Body, Clamp Ports

$ 2534.09 / each

Item 3
(on image above)

Part # 18753-0374

End Cover

$ 489.08 / each

Item 4
(on image above)

Part # 18753-0202

Wearplate

$ 318.19 / each

Item 5
(on image above)

Part # 18753-0208

Shaft

$ 1576.10 / each

Item 6
(on image above)

Part # 8600-0002B

Impeller, High Pressure - EPDM

$ 386.73 / each

Item 7
(on image above)

Part # 18753-0230

Spacer

$ 299.98 / each

Item 8
(on image above)

Part # 18753-0239

Seal Seat, Tungsten Carbide - Nitrile

$ 532.58 / each

Item 9
(on image above)

Part # 18753-0255

Seal

Mechanical Seal, Nitrile/Tungsten Carbide

$ 1063.81 / each

Item 10
(on image above)

Part # 18753-0260

Bearing Seal

$ 36.26 / each

Item 11
(on image above)

Part # 18753-0267

O-Ring, Nitrile

$ 14.76 / each

Item 12
(on image above)

Part # 18753-0272

Retaining Ring

$ 24.18 / each

Item 13
(on image above)

Part # 18753-0276

Bearing

$ 119.51 / each
