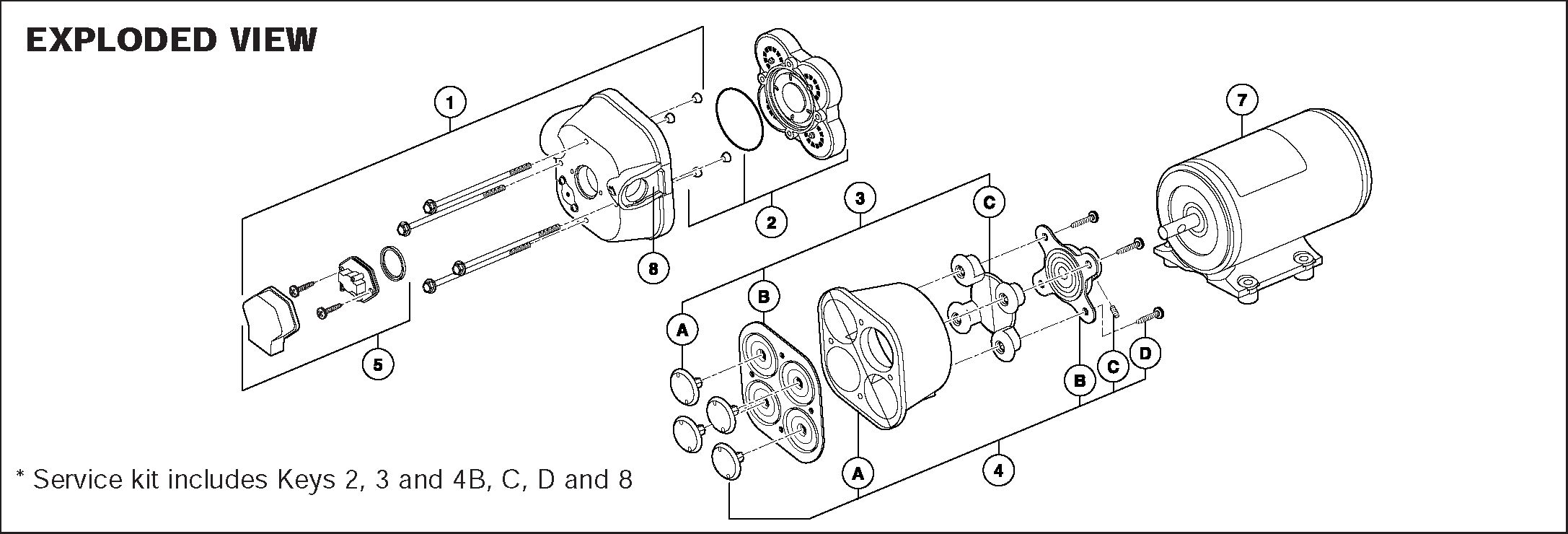

Jabsco Pump model 31595-0094 Parts( Click Here for the Jabsco Pump 31595-0094 Product Page ) |
|
Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 31595-0094 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18910-4040 | Upper Housing XXXXX-0094 | $61.38 | 5 in Stock | 1 is Req'd | ||
| 2 | # 18911-7030 | Valve Kit | $46.53 | 3 in Stock | 1 is Req'd | ||
| 3 | # 18912-3040 | Diaphragm Kit | $22.35 | 33 in Stock | 1 is Req'd | ||
| 5 | # 18916-0040 | Pressure Switch XXXXX-0094 | $34.13 | 8 in Stock | 1 is Req'd | ||
| 6* | # 18920-9042 | Service Kit | $102.41 | 1 in Stock | 1 is Req'd | ||
| 9 | # 18914-6240 | Pumphead Assy. XXXXX-0094 | $379.91 | 0 in Stock | 1 is Req'd | ||
